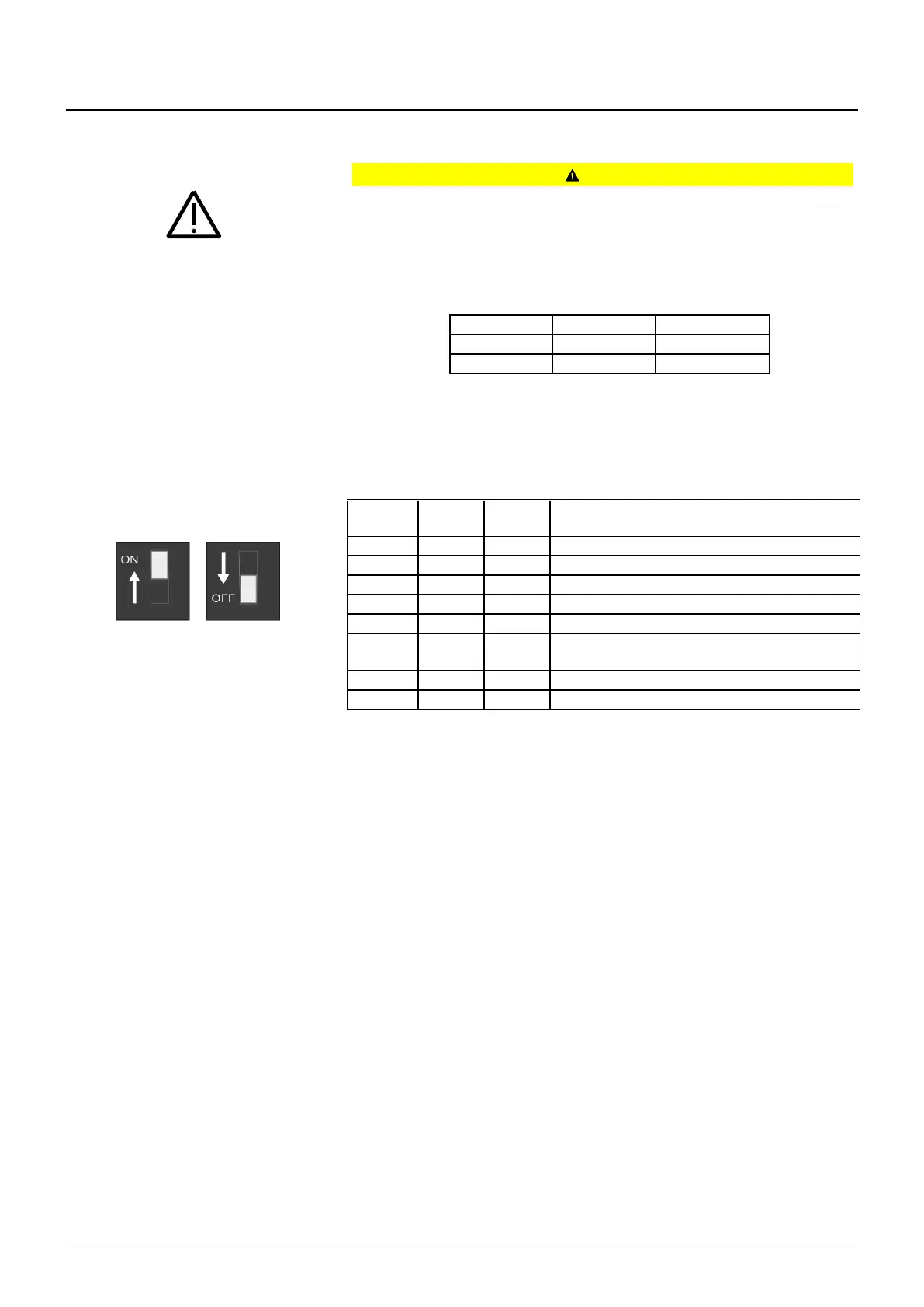

3.7.6 Signalling relays
CAUTION
The signalling relays err and "option" are used to output error messages and may not
be used for safety-relevant functions.
The signalling relays may only be parameterised by an electrically skilled person.
Both relays can be parameterised as normally-closed or normally-open contacts:
Relay
Normally-open
Normally-closed
option
S3_7 off
S3_7 on
err
S3_6 off
S3_6 on
err is switched in every error state that stops a lifting movement.
option is freely parameterisable. Parameterisation is dependent on the switch position
S3:
DIP switch:
Switch
S3_3
Switch
S3_4
Switch
S3_5
The option relay
0
0
0
does not switch
1
0
0
switches on overload
0
1
0
switches on overheating
1
1
0
switches on sensor error
0
0
1
switches on all errors that prohibit lifting and lowering
1
0
1
Switch-off pulse on overload: option relay switches
off for 500 ms and then on again
0
1
1
switches at 95% of nominal load
1
1
1
Not used
The settings are made during initial commissioning in the factory.
