Stahl SLE 3 - 3.3 Front view

3 Product and functional description
06.2017 9
BA_SLE3_EN.DOCX
3.3 Front view

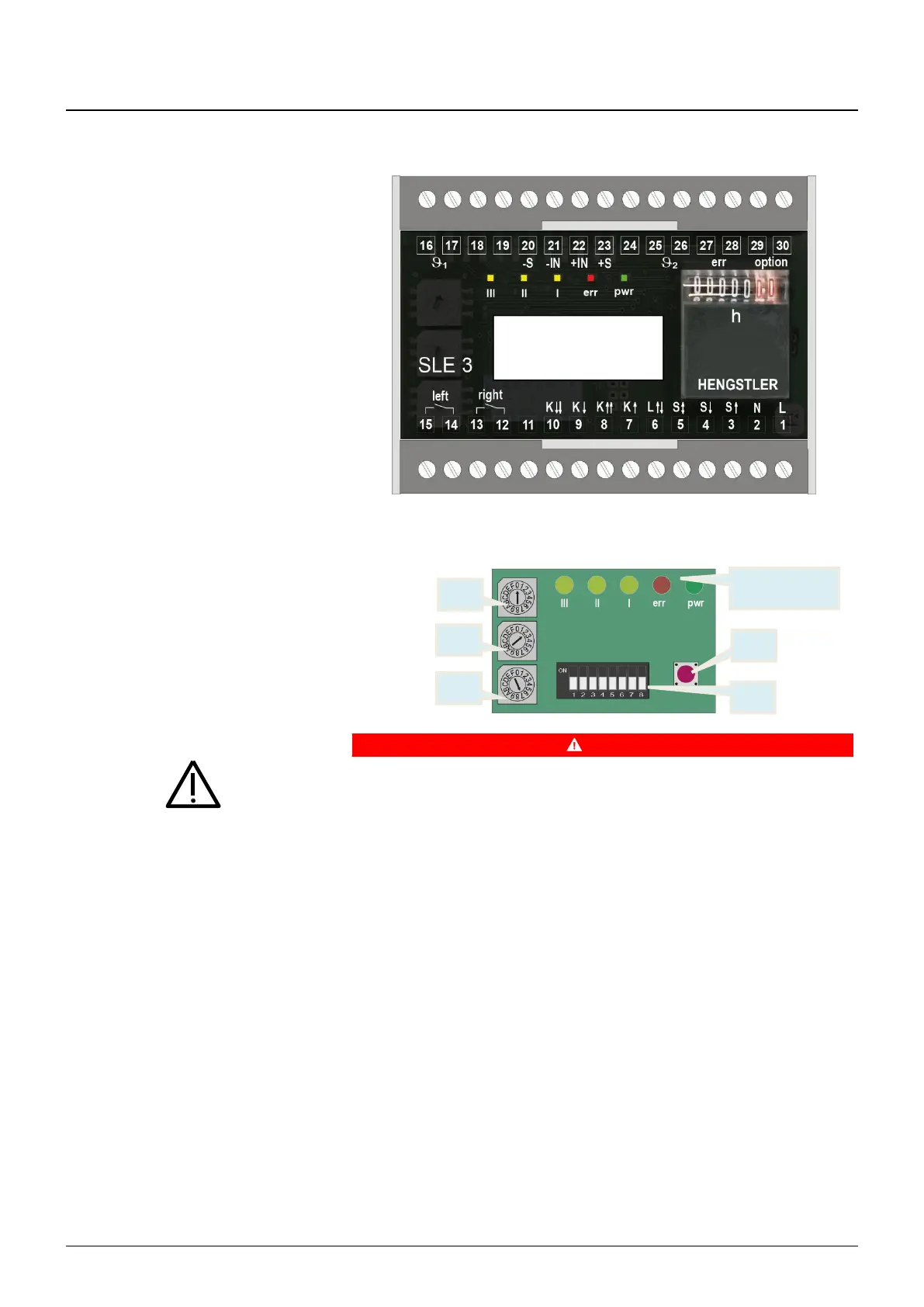

Display board
S1: Selector switch motor management
S4: Setting cut-off point, rough
S2: Setting cut-off point, fine
S3: DIP switch: to activate the testing bay
functions, relay operation and motor man-
agement
S5: Enter button: e.g. crane test
DANGER
The setting of the stored cut-off point may only be changed by a competent
person.
Unauthorised changes will void the warranty!
S1
S4
Signalling and
status LEDs
S5
S3
S2
