ASSEMBLY INSTRUCTIONS
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Service section and order the part needed,
e-mail us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the
U.S.). Our Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
NOTE: Lay your partially assembled 1201 Orbital Rower upside down to complete Step 1.

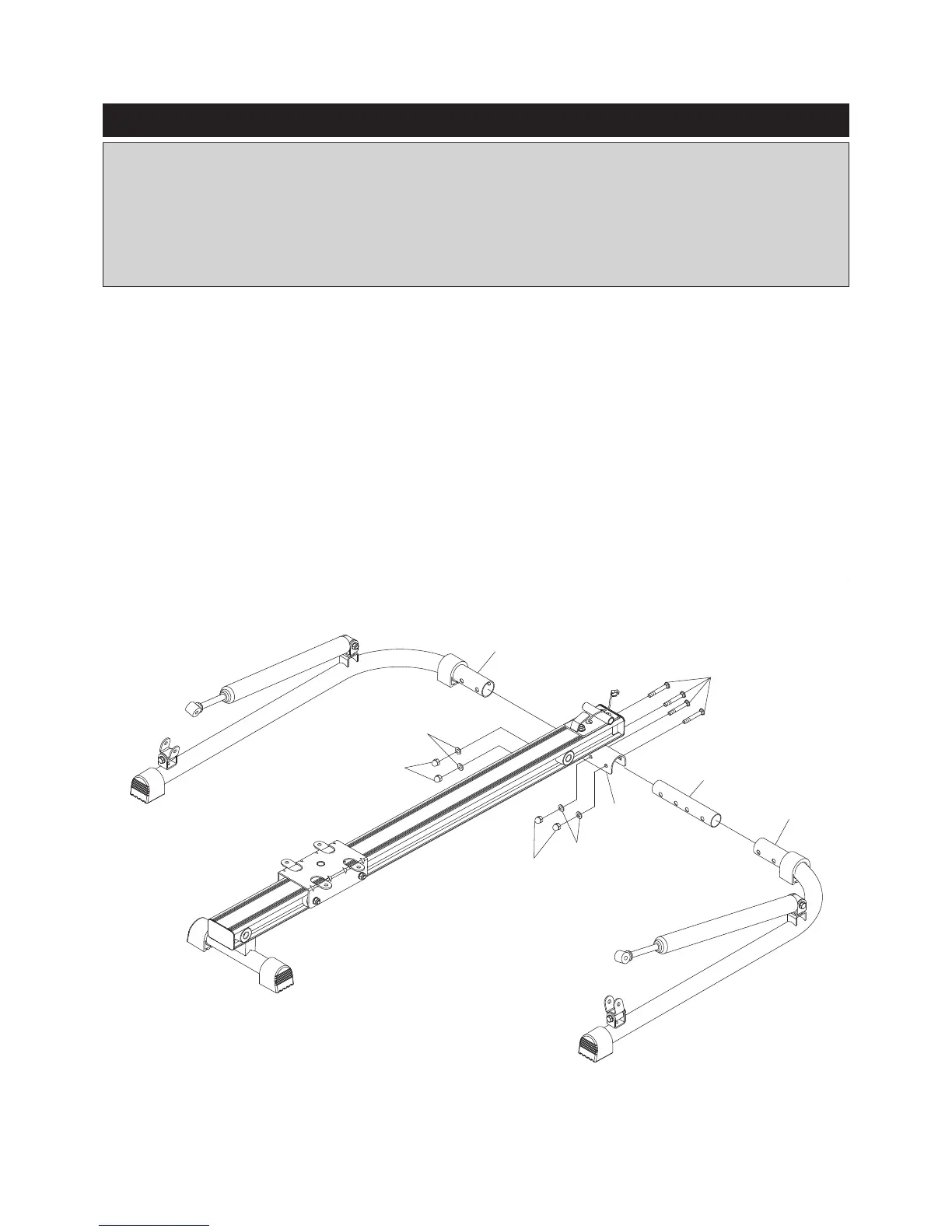

STEP 1
Insert the CONNECTING BAR(13) into the RIGHT BASE(1). Put the RIGHT BASE(1) assembly into the
MOUNTING BRACKET(9), then use a CARRIAGE BOLT(M8x1.25x55mm)(37) to go through MOUNTING
BRACKET(9), RIGHT BASE(1), and CONNECTING BAR(13), and secure with WASHER(M8)(46) and
ACORN NUT(M8x1.25)(47). Do not tighten the bolt and keep it very loose. Insert the LEFT BASE(2)
onto the CONNECTING BAR(13) and use a CARRIAGE BOLT(M8x1.25x55mm)(37) to go through the
MOUNTING BRACKET(9), LEFT BASE(2), and CONNECTING BAR(13). Bolt the whole assembly together
with CARRIAGE BOLTS(M8x1.25x55mm)(37), WASHERS(M8)(46), and ACORN NUTS(M8x1.25)(47).
46
47
37
1
2
13
9
46
47
