ASSEMBLY INSTRUCTIONS
7

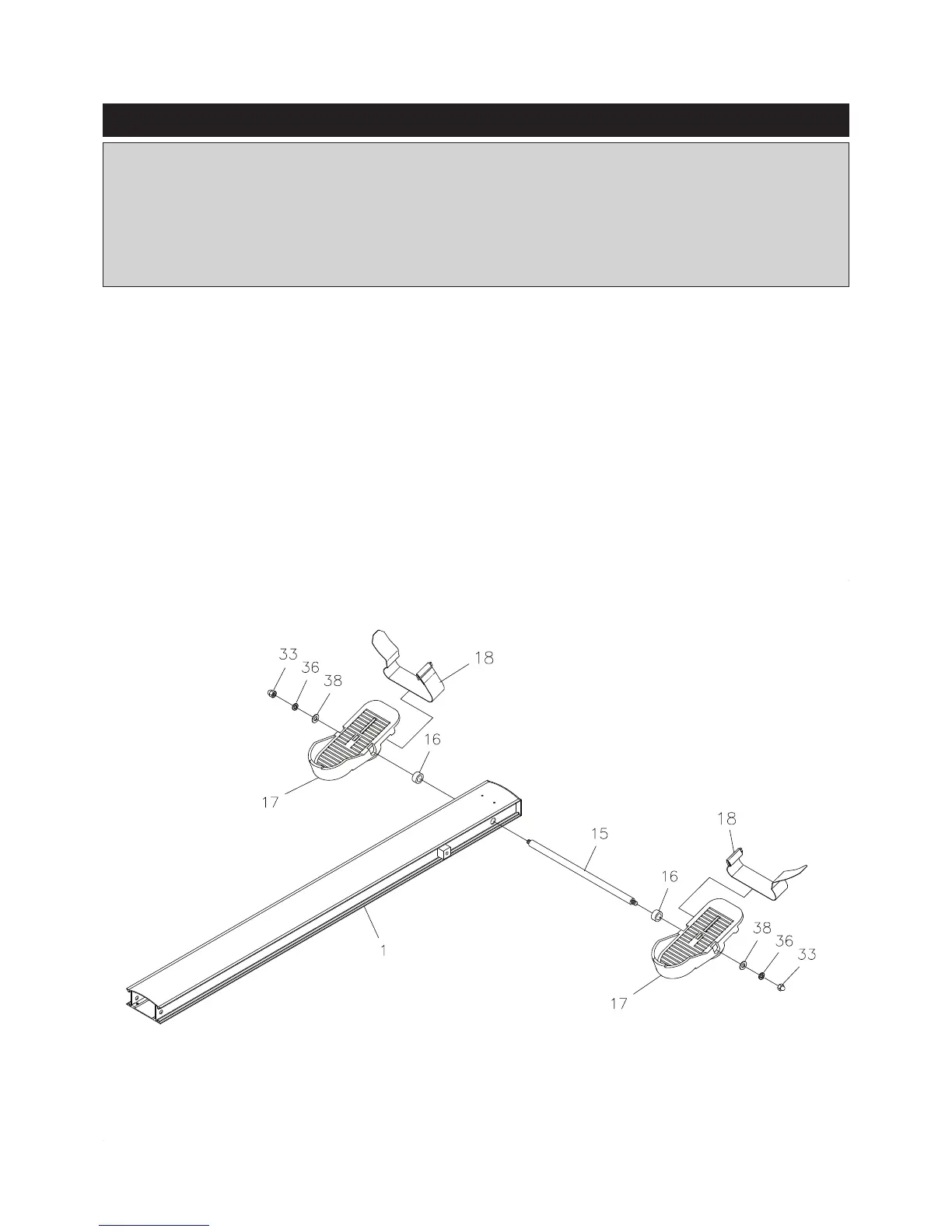

STEP 1
Insert the PEDAL SHAFT(15) through holes located on the front end of the CENTER BEAM(1). Place
a SPACER(16) and a PEDAL(17) onto each end of the PEDAL SHAFT(15) and slide them toward the
CENTER BEAM(1). Then secure the PEDALS(17) with WASHERS(M10)(38), LOCK WASHERS(M10)
(36), and ACORN NUTS(M10x1.5)(33) at both sides of the PEDAL SHAFT(15).
NOTE: You need to use two wrenches to tighten the ACORN NUTS(M10)(33) at both ends of the PEDAL
SHAFT(15) at the same time.
STEP 2
Insert the PEDAL STRAPS(18) into the slots in the bottom of the PEDALS(17). When feet are in the
PEDALS(17), the ends of the PEDAL STRAPS(18) will be facing away from the CENTER BEAM(1) as
shown above.
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Service section and order the part needed,
e-mail us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the
U.S.). Our Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
