Stamina 1205 PRECISION ROWER - Steps 5-6: Handlebar and Shock Assembly

ASSEMBLY INSTRUCTIONS
9

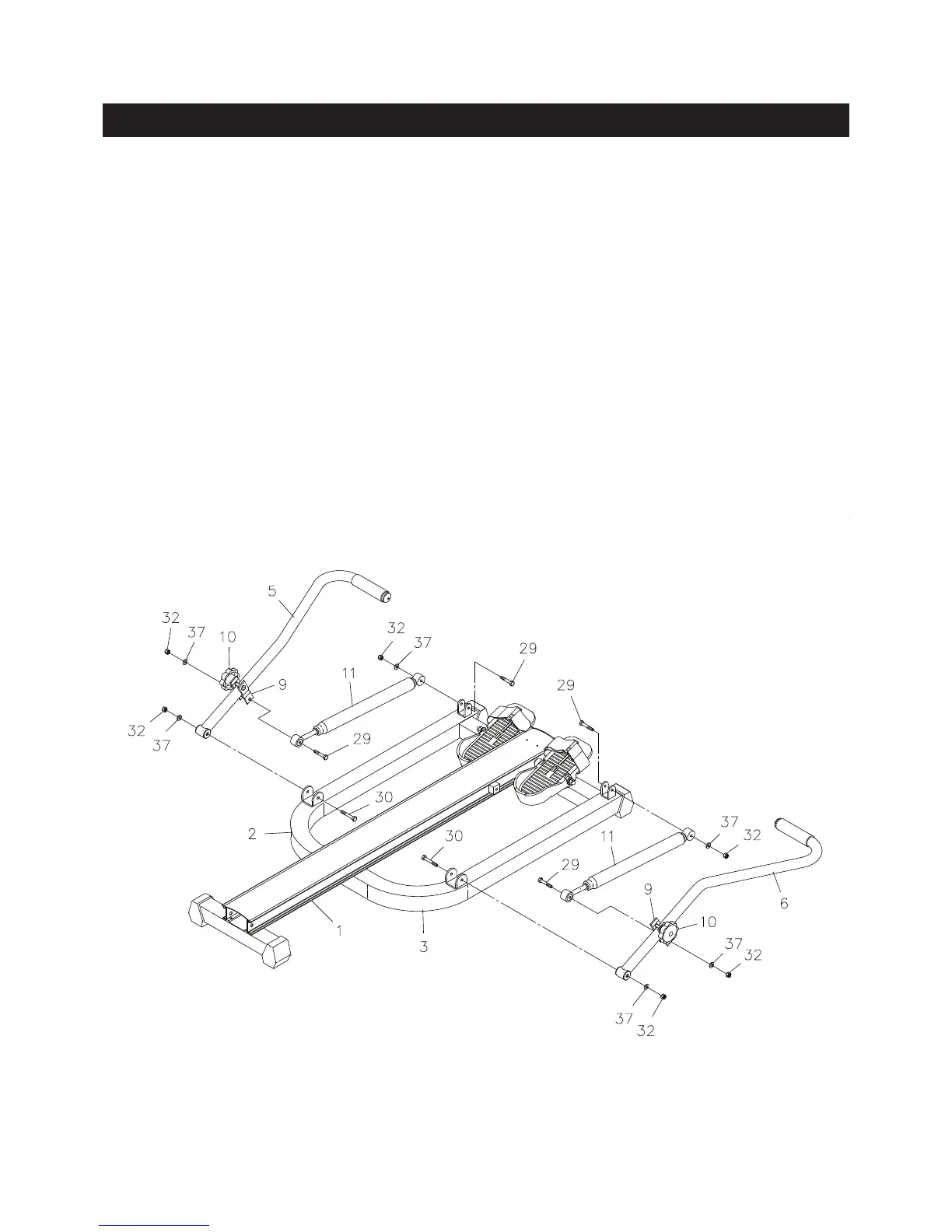

STEP 5
Attach the LEFT HANDLEBAR(5) to the bracket located on the rear of the LEFT BASE FRAME(2) with
HEX BOLT(M8x1.25x55mm)(30), NYLOCK NUT(M8x1.25)(32), and WASHER(M8)(37).
STEP 6
Attach the SHOCK(11) to the bracket located on the front of the LEFT BASE FRAME(2) with HEX BOLT
(M8x1.25x40mm)(29), NYLOCK NUT(M8x1.25)(32), and WASHER(M8)(37). Make sure you assembled the
shock allowing the shock to extend toward the HANDLEBAR(5). Connect the other end of the SHOCK(11)
to the TENSION ADJUSTER(9) with HEX BOLT(M8x1.25x40mm)(29), NYLOCK NUT(M8x1.25)(32), and
WASHER(M8)(37).
Repeat the above to attach the RIGHT HANDLEBAR(6) and SHOCK(11) to the RIGHT BASE FRAME(3).
