Stamina BioFLEX 1700 - Page 12

ASSEMBLY INSTRUCTIONS
12
Lug

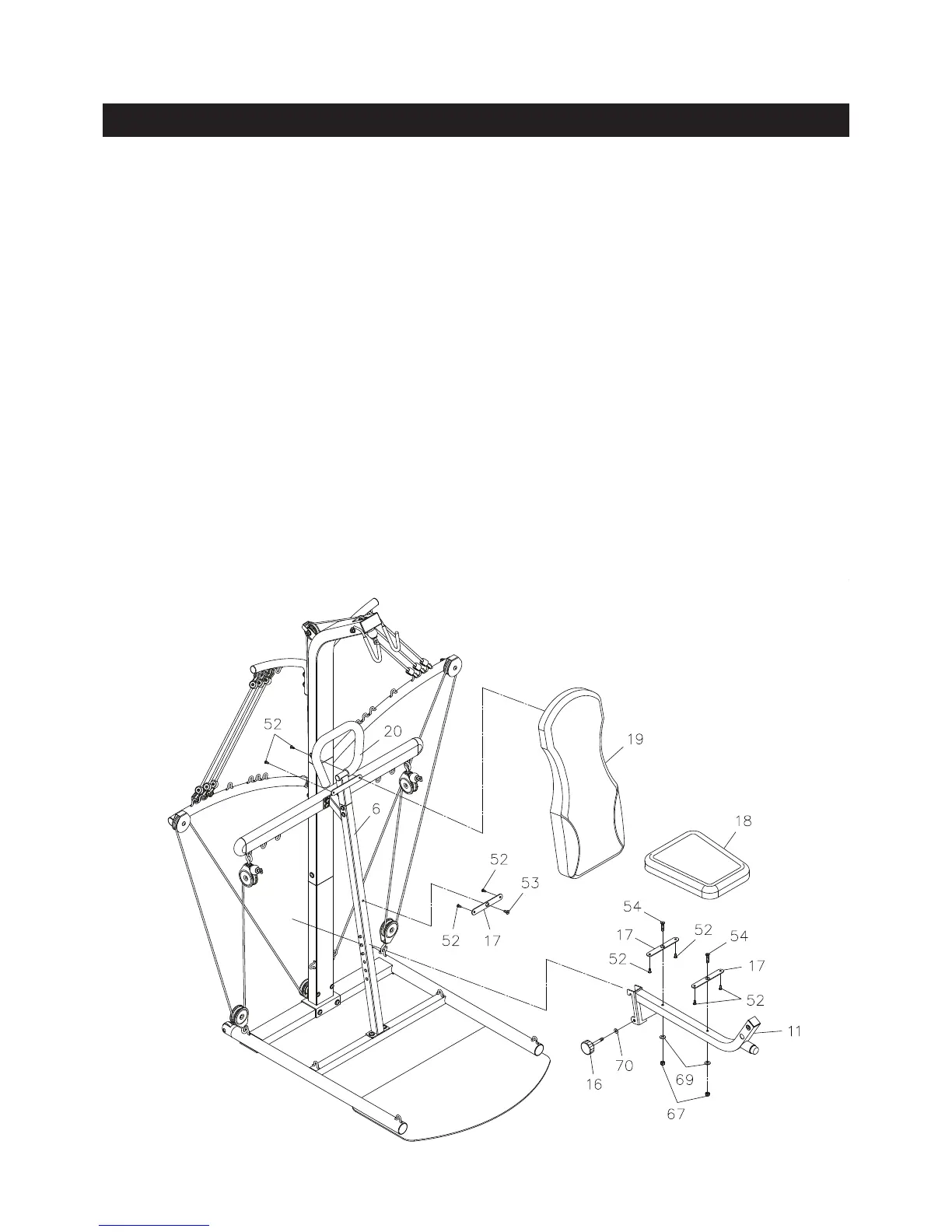

STEP 13
Hook the SEAT FRAME(11) onto one of the Lugs on the FRONT SUPPORT(6) and secure with the
LOCKING KNOB(16) and WASHER(M10)(70).
NOTE: The three Lugs on the FRONT SUPPORT(6) allow the SEAT FRAME(11) to be attached in three
different positions. Start with one of the center positions and adjust if necessary. Use the upper
position if users are taller than average. Use the lower position if users are shorter than average.
STEP 14
Attach the MOUNTING PLATES(17) to the SEAT FRAME(11) with FLAT HEAD BOLTS(M8x1.25x50mm)
(54), WASHERS(M8)(69), and NYLOCK NUT(M8x1.25)(67). Attach the SEAT(18) to the MOUNTING
PLATES(17) with FLAT HEAD BOLTS(M6x1x15mm)(52).
HINT
: Before tightening the FLAT HEAD BOLTS(M8x1.25x50mm)(54) and securing the MOUNTING
PLATES(17) to the SEAT FRAME(11), attach the SEAT(18) to the MOUNTING PLATES(17)
with FLAT HEAD BOLTS(M6x1x15mm)(52) to make sure the plates are in the correct position.
Then remove the SEAT(18) and securely tighten the FLAT HEAD BOLTS(M8x1.25x50mm)(54).
STEP 15
Attach the MOUNTING PLATE(17) to the FRONT SUPPORT(6) with FLAT HEAD BOLT(M8x1.25x20mm)
(53). Attach the BACK CUSHION(19) to the MOUNTING PLATE(17) and the mounting plate on the
HANDRAIL(20) with FLAT HEAD BOLTS(M6x1x15mm)(52).
