ASSEMBLY INSTRUCTIONS
13

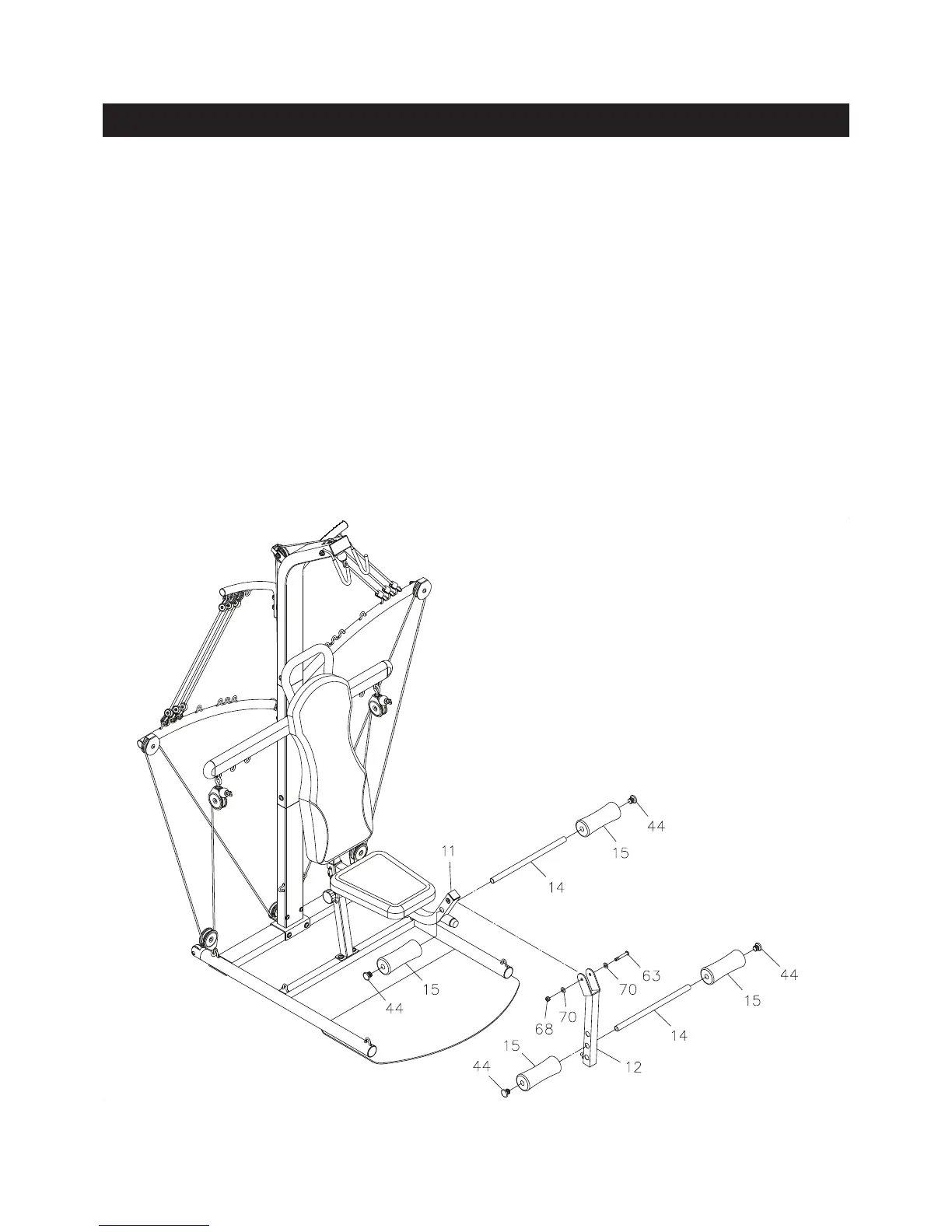

STEP 16
Attach the LEG LIFT(12) to the SEAT FRAME(11) with BUTTON HEAD BOLT(M10x1.5x65mm)(63),
WASHERS(M10)(70), and NYLOCK NUT(M10x1.5)(68). Do not over tighten the bolt, as the LEG
LIFT(12) must be able to pivot smoothly.
STEP 17
Slide a FOAM PAD(15) onto one end of the PAD TUBE(14). Press a ROUND PLUG(44) into the end
with the FOAM PAD(15) of the PAD TUBE(14). Then insert the other end of the PAD TUBE(14) through
the hole in the SEAT FRAME(11). Slide another FOAM PAD(15) over the protruding end of the PAD
TUBE(14), and press a ROUND PLUG(44) into the PAD TUBE(14). Repeat for assembling the PAD
TUBE(14), FOAM PADS(15), and ROUND PLUGS(44) to one of the adjustment holes in the LEG
LIFT(12).
NOTE: The three adjustment holes in the LEG LIFT(12) allow the FOAM PADS(15) to be attached in
three different positions. Start with one of the center positions and adjust if necessary. Use the
upper position if users are shorter than average. Use the lower position if users are taller than
average.
