ASSEMBLY INSTRUCTIONS
L
R
10
L
R

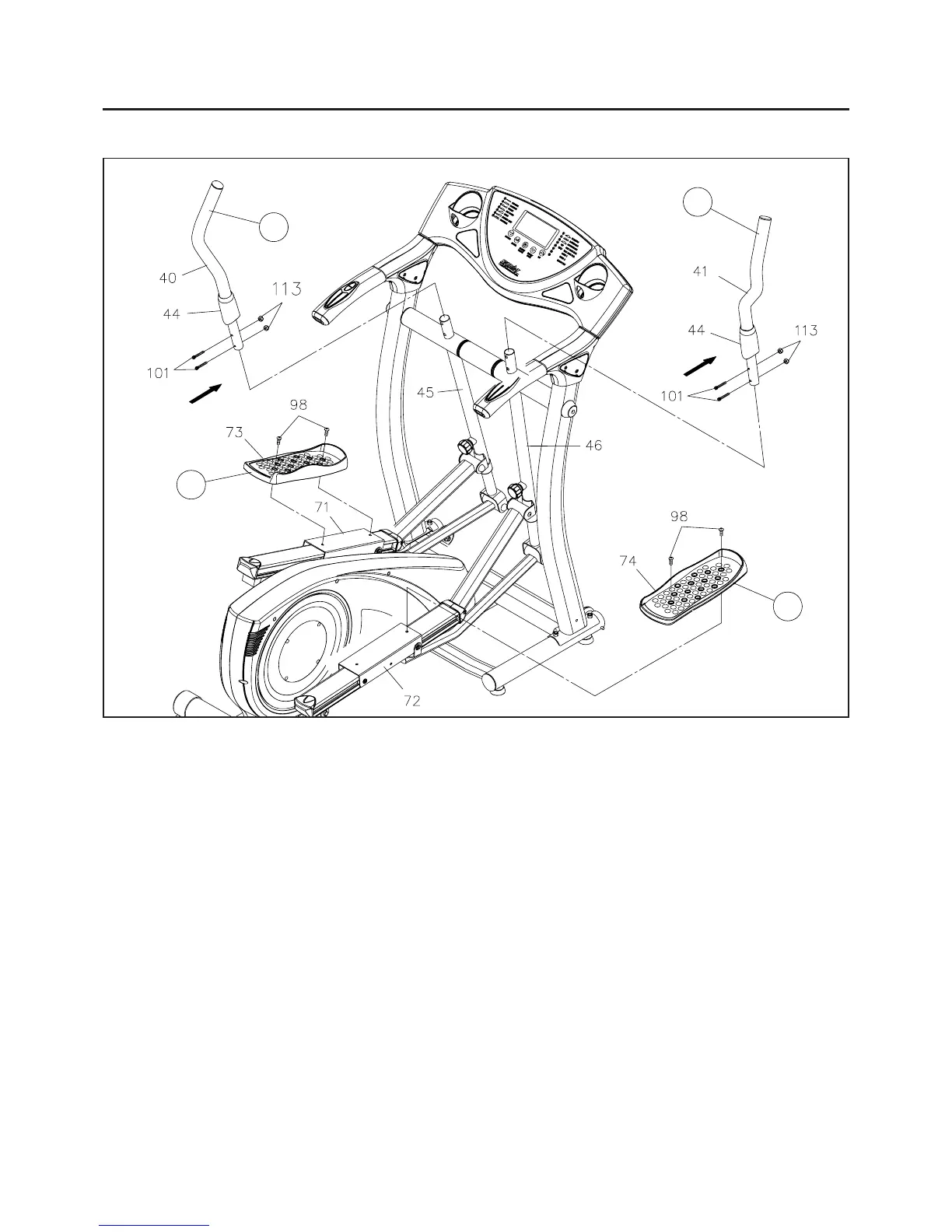

STEP 13
There is an "L" decal on the LEFT PEDAL CAP(73), and an "R" decal on the RIGHT PEDAL CAP(74).
Attach the RIGHT PEDAL CAP(74) to the RIGHT PEDAL SLIDER(72) with ROUND HEAD BOLTS
(M8x1.25x16mm)(98). Repeat on the left side.
CAUTION:
The lip on the PEDAL CAPS(73, 74) must face inside. The sides without a lip face outside as
shown.
Assemble the SOCKET HEAD BOLTS(M6x1x35mm)(101) following the direction as shown by the
arrows. The Bolt Heads must go through the holes on the PIVOTING ARMS(45, 46) to attach the
HANDLEBARS(40, 41).
STEP 14
There is a "L" decal on the LEFT HANDLEBAR(40), and a "R" decal on the RIGHT HANDLEBAR(41).
Slide a HANDLEBAR SLEEVE(44) onto the RIGHT HANDLEBAR(41). Insert the RIGHT HANDLEBAR(41)
into the RIGHT PIVOTING ARM(46) and secure with SOCKET HEAD BOLTS(M6x1x35mm)(101) and
NYLOCK NUTS(M6x1)(113). Slide the HANDLEBAR SLEEVE(44) down to cover the bolts on the RIGHT
HANDLEBAR(41). Repeat on the left side.
NOTE:
