© 2005, THE STANLEY WORKS. ALL RIGHTS RESERVED.
204027
Rev. C, 11/9/05
14 of 31

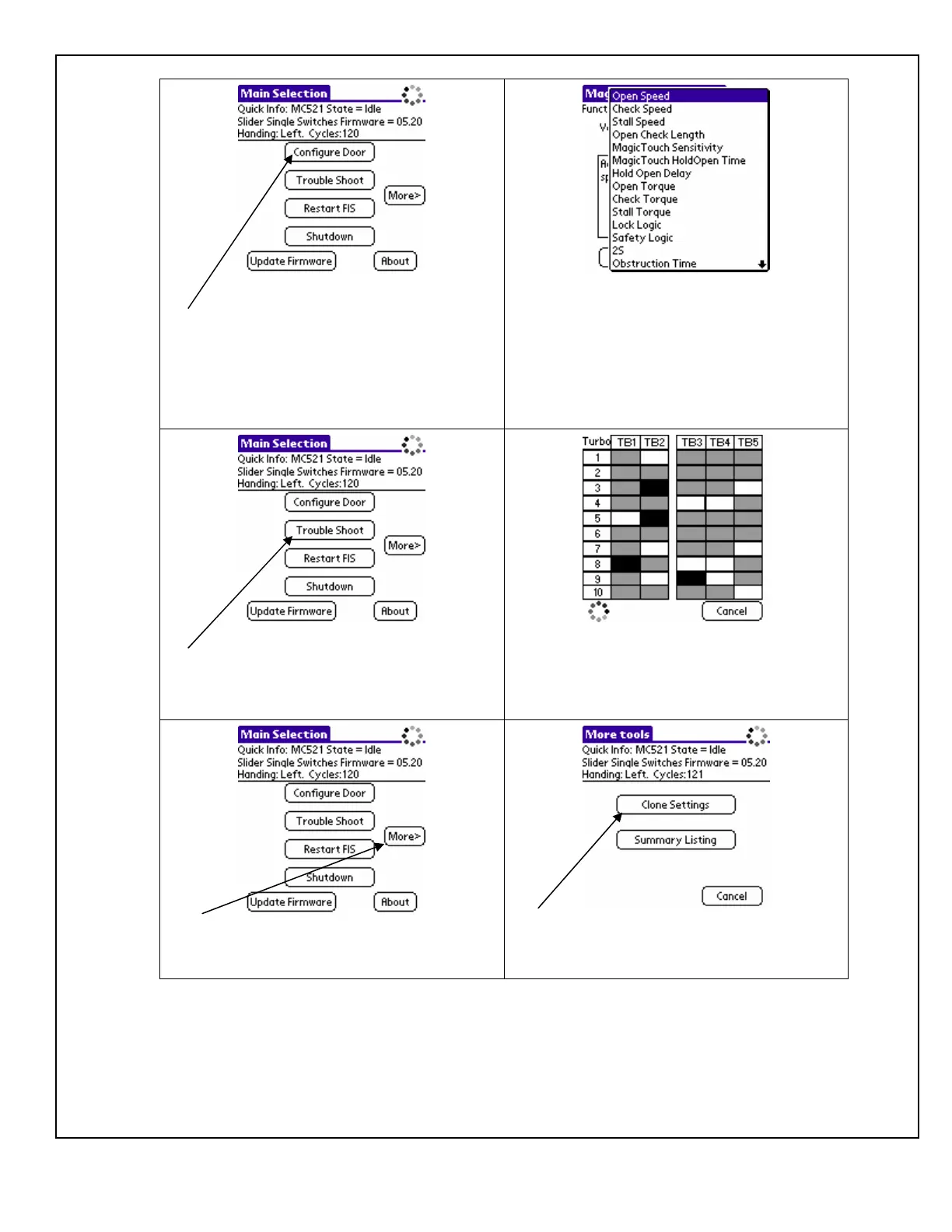

Step 11: If the door requires additional
changes to be made to the settings, select
Configure Door.
Step 12: Configure settings as needed and
press Update after each setting has been
changed. Once completed, press Cancel to go
back to the Main selection menu.
Door must be cycled to full open for changes to
be stored in permanent memory.
Step 13: If the door is not operating correctly
press Trouble Shoot to enter the Trouble
Shooting menu.
Step 14: View the I/O grid to verify the
sensors and inputs.
Step 15: Press More> to access more
functions.
Step 16: Press Clone Settings to pull all of the
settings out of one controller and put them into
another door.
