Installation Instructions for Stanley Omnilock 45HOM Mortise Locks
Installing the trim
2 For LH & LHRB doors, the inside is the case (back)
side of the case and the outside is the cover side
of the case. For RH and RHRB doors, the inside is
the cover side of the case and the outside is the
case (back) side of the case. The cover is mounted
to the case with four screws.
3 To change the position of a hub toggle, loosen
the toggle screw, move the toggle into the
desired position, and re-tighten the screw.
7 Install mortise case
1 Drill the holes for the case mounting screws.
2 Insert the mortise case into the mortise cavity,
while feeding the motor wires and any optional
sensor wires into the mortise cavity and keyhole
to the inside of the door as shown in Figure 7.
Note: The armored front of the mortise case self-
adjusts to the door bevel.
3 Secure the mortise case with the case mounting
screws.
8 Install trim mounting plates
1 Insert the outside trim mounting plate through
the door and mortise case.
Option DV TV
Stand
Alone
Wireless
Key Overide Sensor
(KOS)
■ ■ ■ ■
Request-to-Exit
(RQE)
■■ ■
Door Status Switch
(DS)
a
a. Door status switch is located differently for DV and TV
functions.
■■ ■
Latch Status
Switch (LS)
■■
Mortise case
Case
mounting
screws

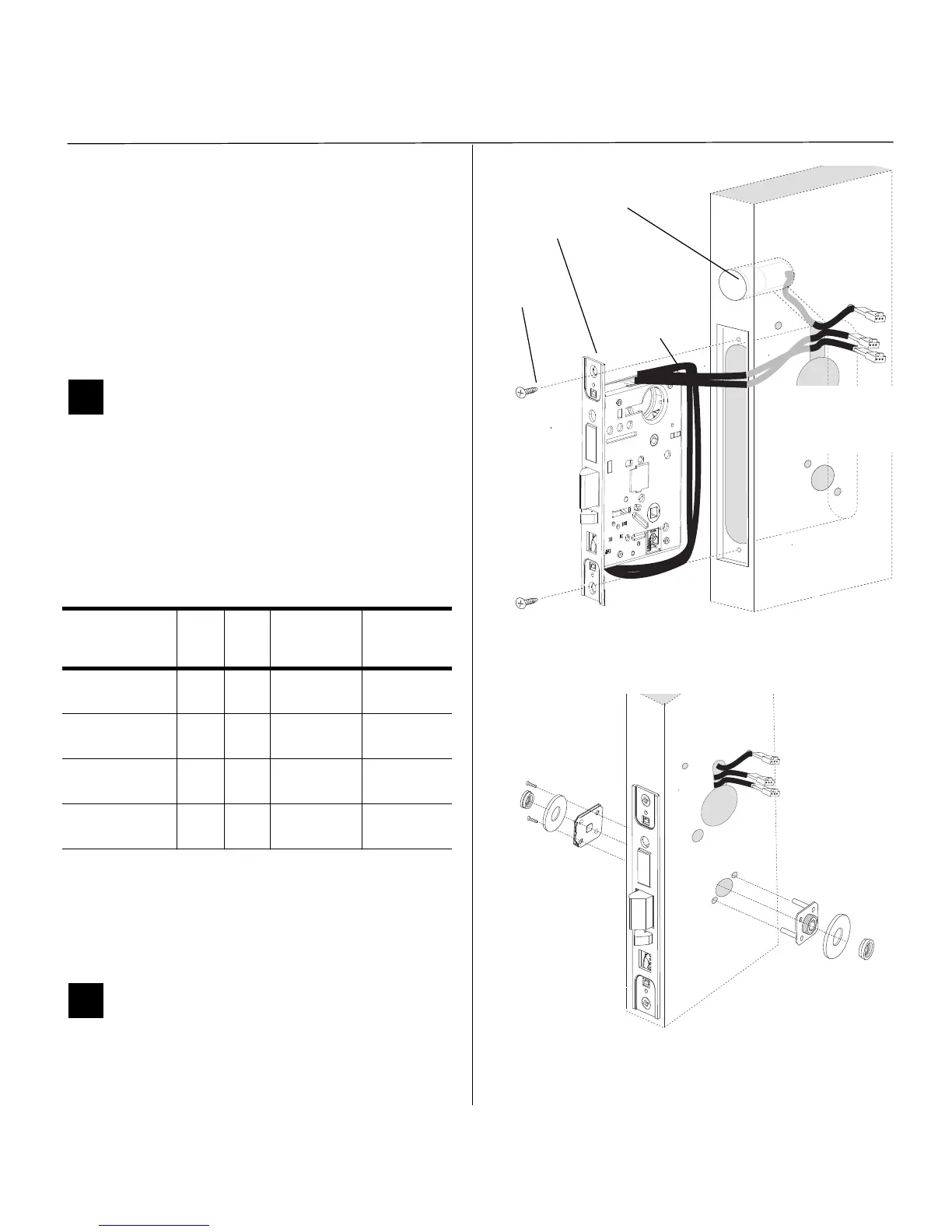

Figure 7 Installing the mortise case
Door Status Switch
(TV location shown)
Motor wire
DS (white)
RQE (org/brown)
LS/LSM (purple)
KOS (gray)
(red/black)
Figure 8 Installing the trim mounting plates
Outside trim
Inside trim
