6
D
C
B
A
E
F
G
H
E
A
B
C
D
F
5
4
3
2
1
7
8
9
10
11
12
1
2
3
4
5
6
7
8
G
WEIGHT
PART
NUMBER
PART
DESCRIPTION
EN 20286/BS 1916-H11
SURFACE
TEXTURE
DRILL
ANGULAR
1/2 DEGREE
N8
DECIMAL
0.13mm
INCH DIMENSIONS IN PARENTHESES
REMOVE ALL BURRS AND SHARP EDGES
DIMENSIONS IN mm UNLESS STATED
LUBRICATION
This document is the property of Avdel UK Limited
and is issued on the express terms that it is to be
treated as private and confidential and is not to
be communicated to any other person.
All patents, manufacturing and design rights are
reserved by Avdel UK Limited.
Avdel UK Limited
Pacific House, 2 Swiftfields,
Watchmead Industrial Estate,
Welwyn Garden City,
Hertfordshire, AL7 1LY
Registered in England: No. 315076
C.N.
ISSUE
DRAWING
DESCRIPTION
SURFACE TREATMENT
DRAWN
DATE
HEAT TREATMENT
LIMITS
UNLESS
STATED
MATERIAL
Sheet:
Tool Assy - fixed bottle
A2
1 of 1
1:1
DRAWING
NUMBER
Scale:
Revision:
Size:
DO NOT SCALE

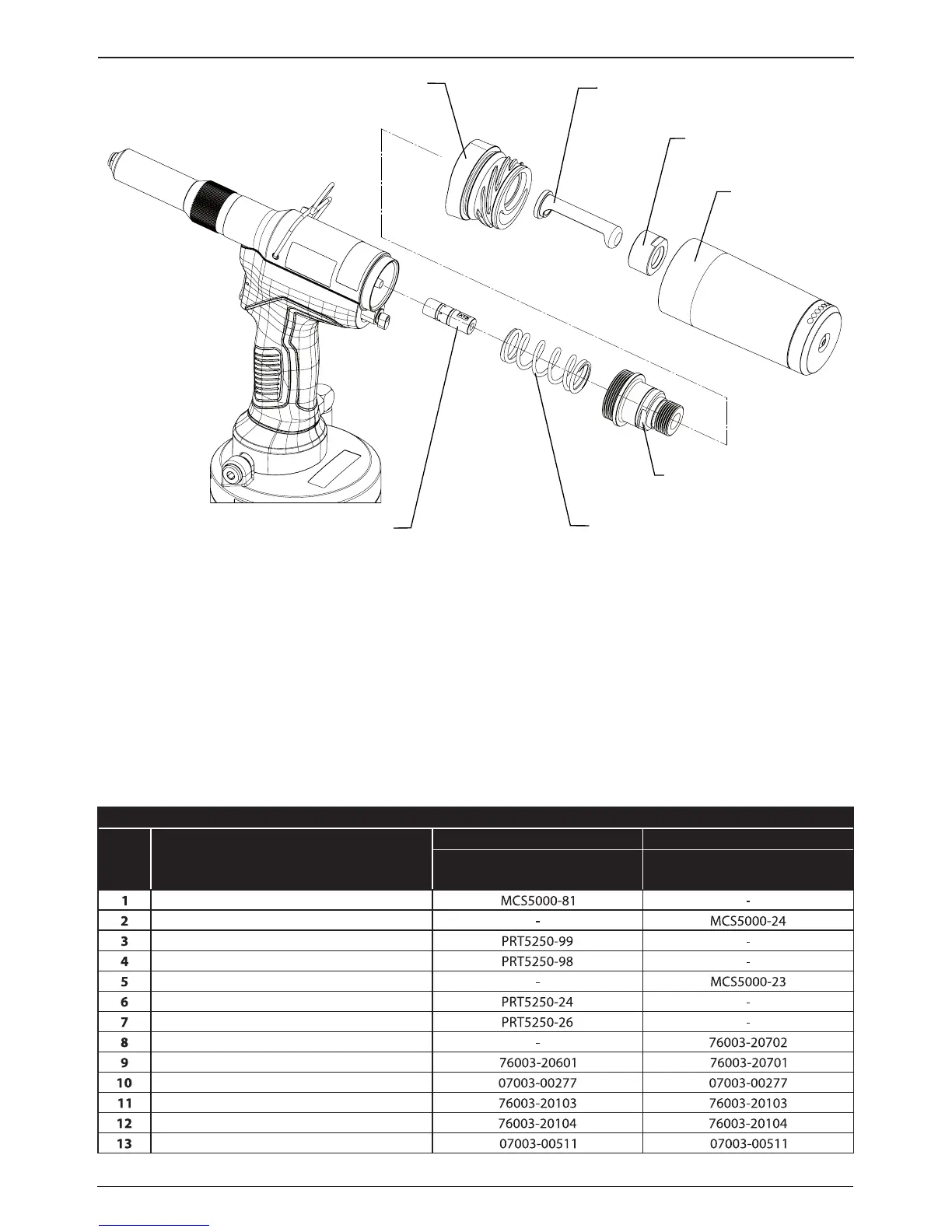

Fig. 18
Collector Adapter
76003-05104
Stem Deector
76003-05101
Retaining Nut
76003-05102
Stem Collector
76003-05200
End Cap Assembly
76003-05110
Spring
76003-02030
Ejector Nozzle
76003-05105
76004-05105
FITTING THE MCS5000 ADAPTER KITS
IMPORTANT - READ THE SAFETY WARNINGS LISTED IN THE PROSET XT3 AND PROSET XT4 INSTRUCTION
MANUAL CAREFULLY BEFORE PUTTING INTO SERVICE.
IMPORTANT - THE AIR SUPPLY MUST BE TURNED OFF OR DISCONNECTED BEFORE FITTING OR
REMOVING THE MCS5000 ADAPTER KITS.
Refer to g. 19 and the table 10 below.
Table 10 - PARTS LIST - MCS5000 ADAPTER KITS
Item Description
76003-20600 76003-20700
3.2MM (1/8“) TO 4.8MM
(3/16“) RIVETS
6.4MM (1/4“) RIVETS
Strain Relief
MCS Hose
SMC Fitting (1/8“ Rivets)
SMC Fitting (5/32“ & 3/16“ Rivets)
SMC Fitting (1/4“ Rivets)
Adapter Bushing (1/8“ Rivets)
Adapter Bushing (5/32“ & 3/16“ Rivets)
Adapter Bushing (1/4“ Rivets)
MCS Adapter
ORing
Collector Adapter Cover
Vacuum Shut-o Nozzle
ORing
To Next Page
