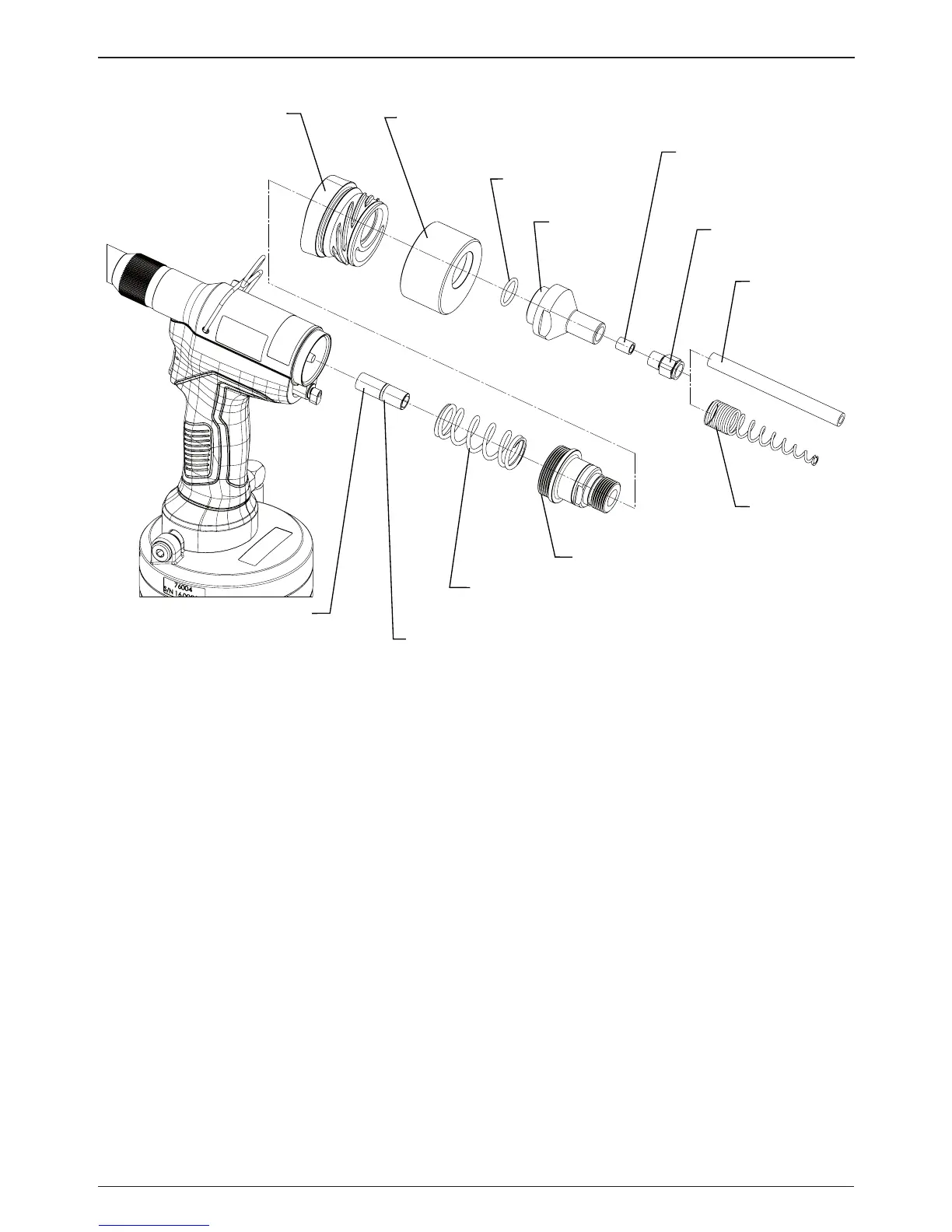

Fig. 19
Collector Adapter
76003-05104
11
Collector Adapter
Cover
10
ORing
9
MCS
Adapter
6, 7, 8
Adapter Bushing
3, 4, 5
SMC Fitting
2
MCS Hose
1
Strain Relief
End Cap Assembly
76003-05110
Spring
76003-02030
13
ORing
12
Vacuum Shut-o
Nozzle
Item numbers in bold refer to g. 19 and table 10.
• The air supply must be disconnected.
• Attach the Vacuum Shut-o Nozzle (12) to the Piston (76003-02120 or 76004-02120).
• Install the Spring (76003-02030).
• Attach the End Cap Assembly (76003-05110), including ORing (07003-00508).
• Assemble the Collector Adapter (76003-05104), including ORing (07003-00530).
• Place the Collector Adapter Cover (11) over the Collector Adapter (76003-05104).
• Insert ORing (10) into the recess with the MCS Adapter (9)
• Install MCS Adapter (9) on the End Cap Assembly (76003-05110) using aspanner. Ensure the end face of
the Collector Adapter Cover (11) is secure against the mating face of the Collector Adapter (76003-05104).
• Insert the Adapter Bushing (6, 7, or 8) into the MCS Adapter (9) ensuring the correct size for the rivet to
be placed and the correct orientation. The larger internal bore opening in the Adapter Bushing (6, 7, or 8)
should face towards the MCS Adapter (9).
• Insert the SMC tting (3, 4 of 5) into the MCS Adapter (9), ensuring the correct size for the rivet to be
placed.
• For 3.2mm (1/8”), 4.0mm (5/32”) and 4.8mm (3/16”) rivets insert the Strain Relief (1) over the SMC Fitting
(3 or 4) and fully on to the MCS Adapter (9).
• For 6.4mm (1/4”) rivets insert the MCS Hose (2) into the SMC Fitting (5).
• Connect the Tool and MCS5000 kit to the MCS5000 unit as instructed within the MCS5000 datasheet.
