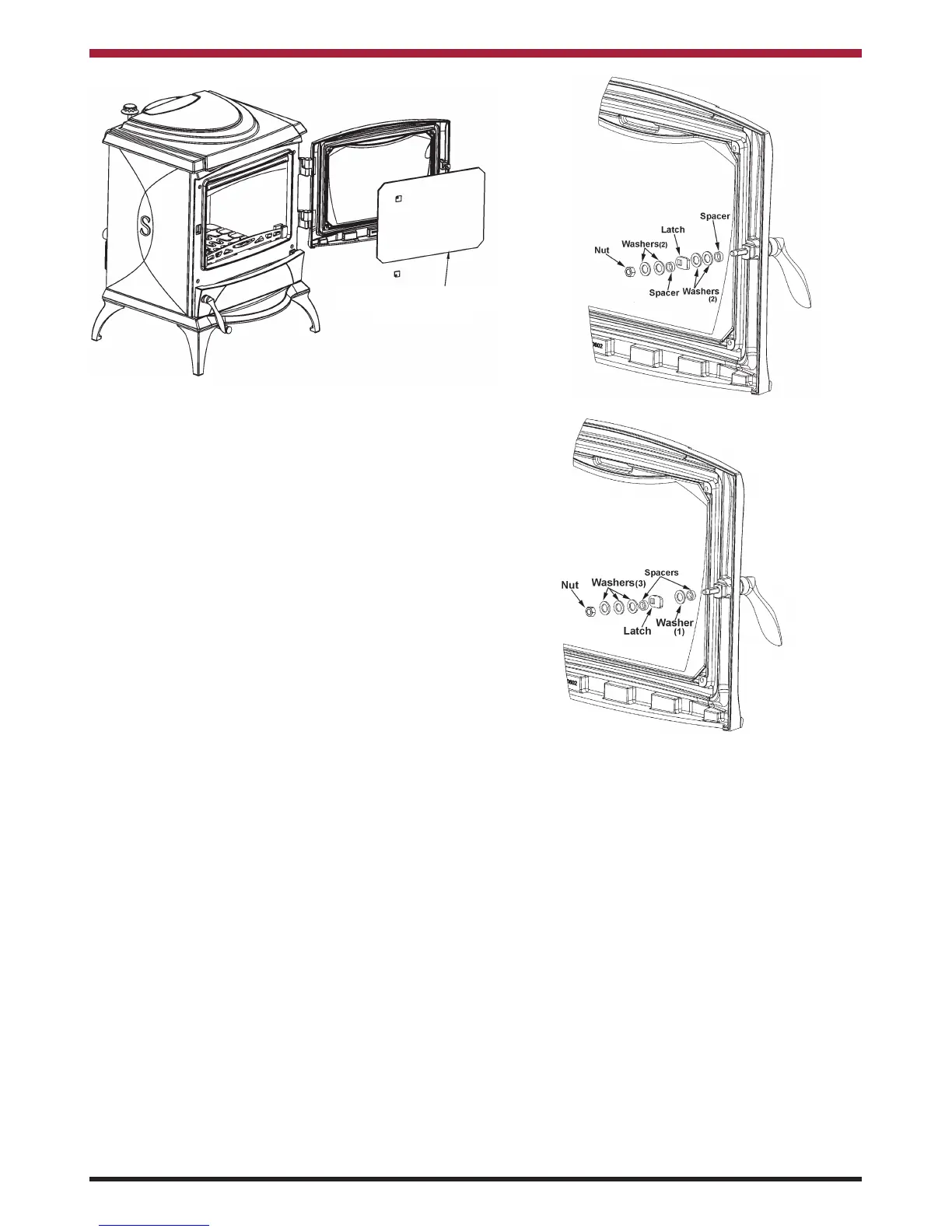

Fig.17
Replacement
Glass
GLASS REPLACEMENT
(a) Open the firedoor fully.
(b) Remove the four corner screws and clips and
carefully remove the broken glass.
(c) Clean the glass recess in the door.
(d) Replace the sealing rope in the door if
necessary
(e) Tighten screws.
(f) Replace glass only with ceramic glass 5mm
thick. (See Fig.17).
SUMMER SHUTDOWN
For summer shutdown of the stove, ensure all ashes
have been cleaned from the ash compartment and
that the air control is open, to avoid condensation in
the stove firebox and possible corrosion during this
shutdown period.
DOOR LATCH ADJUSTMENT
If the door latch should be come loose over time due
to compression/ hardening of the rope inside the fire
door, an adjustment can be carried out by removing
one of the washers.
Remove the nut, spacer, two washers and latch and
one washer, then replace the nut, spacer, two wash-
ers and latch leaving only one washer, see Figs. 18
& 19.
16
Fig.19
Fig.18
