Stanley Reginald - Flue & Water Pipe Locations; Specification

Fig.5

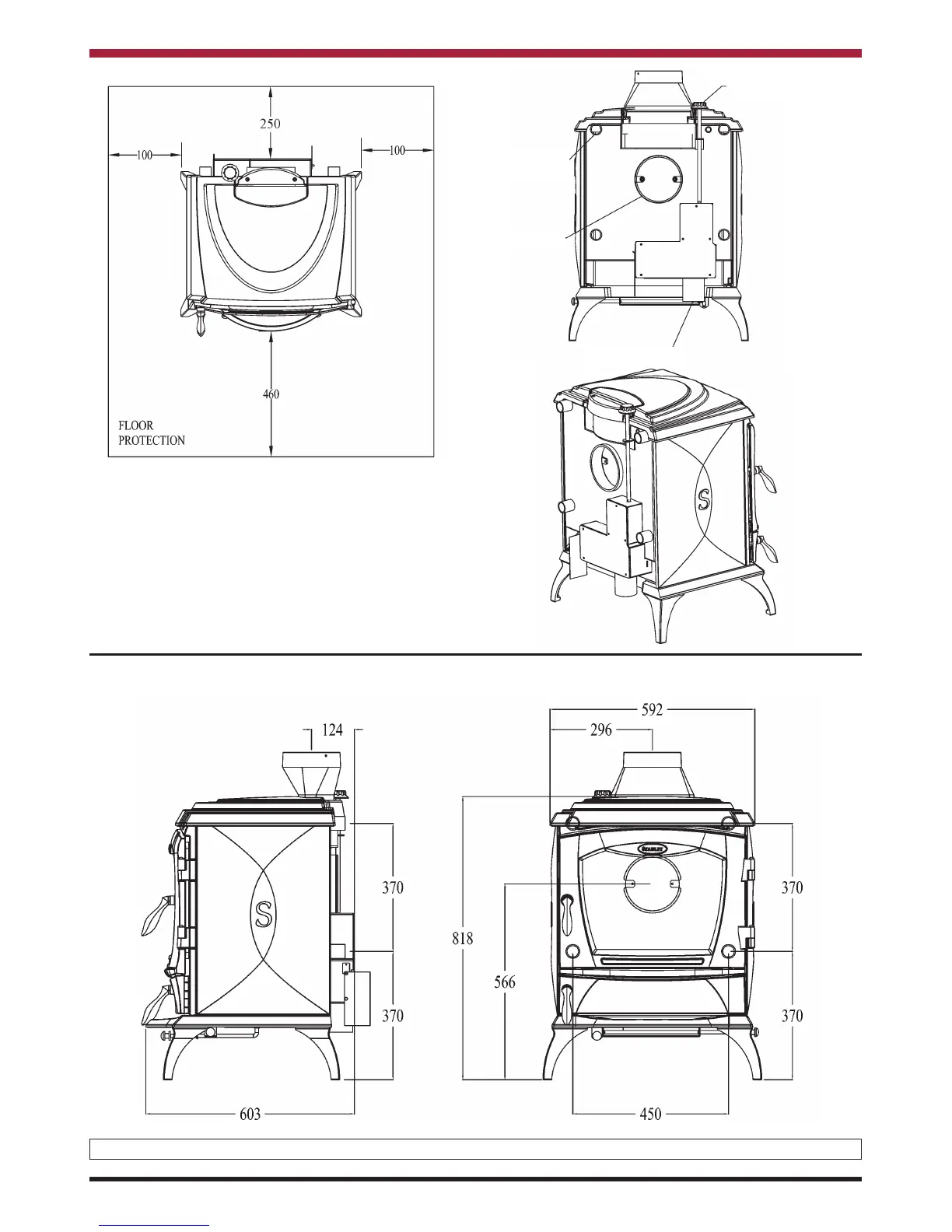

FLUE & WATER PIPE LOCATIONS
Flue outlet to suit 152mm (6”) internal diameter flue
pipe.
Water outlets 25mm (1”) B.S.P.
Fig.6
4 Water Pipe
Outlets
Flue Outlet
Primary Air Inlet
Thermostat Knob
Fig.7
SPECIFICATION
Note: Dimensions stated are in millimetres unless otherwise stated and may be subject to a slight +/- variation.
Fig.8
8
