Stanley Reginald User Manual

17

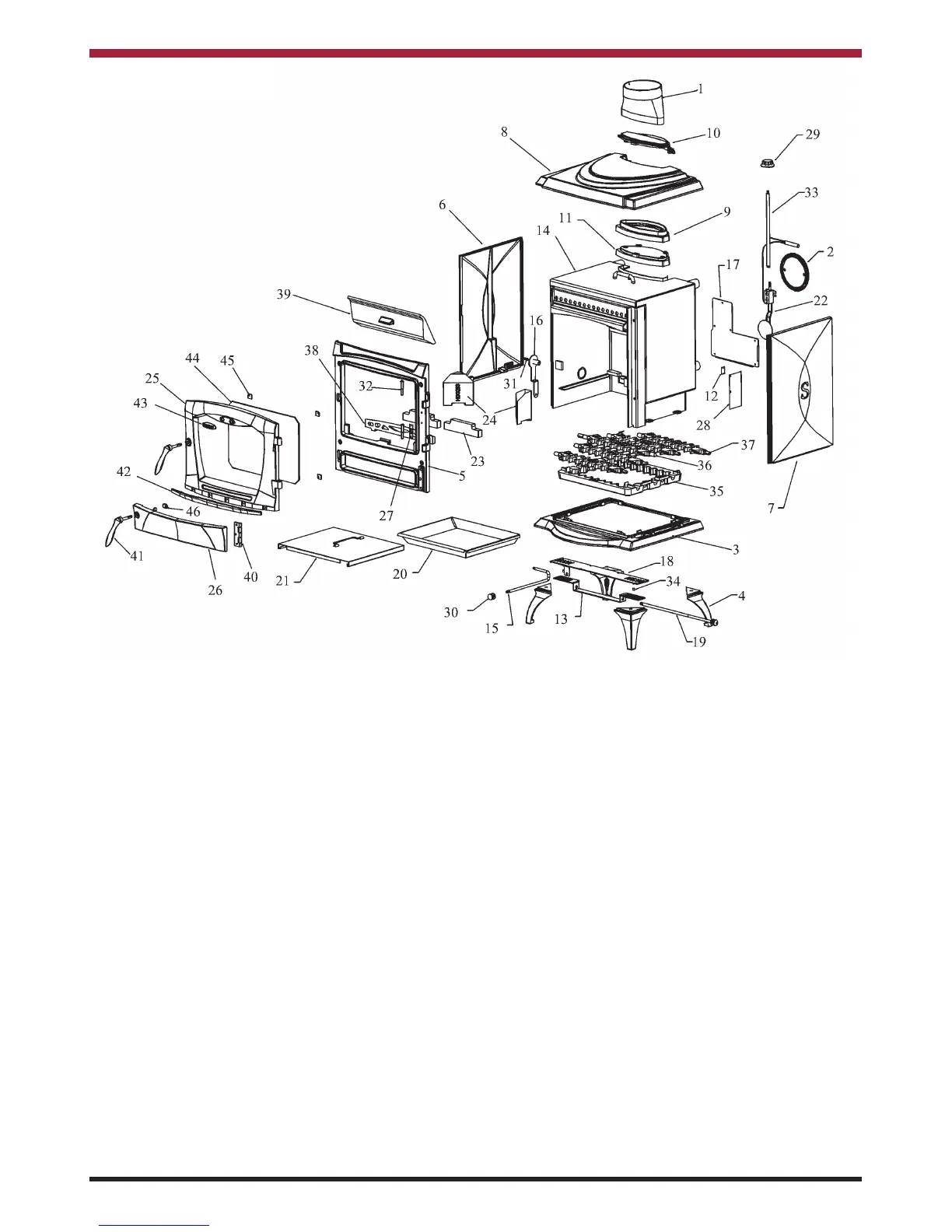

EXPLODED VIEW
1. Top Flue Outlet - B00053AZZ
2. Flue Blanking Plate - B00064AZZ
3. Base - B00594AZZ
4. Stove Leg - B00595AZZ
5. Front - B00596AZZ
6. Left Hand Side - B00598AZZ
7. Right Hand Side - B00597AZZ
8. Hob - B00599AZZ
9. Top Flue Connection Plate - B00600AZZ
10. Hob Filler Piece - B00601AZZ
11. Top Flue Blanking Plate - B00609AZZ
12. Rating Plate Bracket - F00879BXX
13. Damper Plate - F00910AXX
14. Boiler - F01008AXX
15. Riddling Rod - F01015AXX
16. Riddling Link Bar - F01016AXX
17. OSA Box Cover - F01017AXX
18. Cover Plate - F01018AXX
19. Damper Rod - F01019AXX
20. Ashpan - F01023AXX
21. Ashpan Cover - F01024AXX
22. QWX Thermostat - G00479AXX
23. Front Brick - H00209AXX
24. Back Corner Brick - H00213AXX
25. Fire Door - B00602AXX
26. Ash Door - B00603AXX
27. Serial Number Plate - N00234BXX
28. Data Plaque - N00493AXX
29. Air Control Knob - U00006AXX
30. Air Wash Knob - U00077AXX
31. Compression Spring - V00087AXX
32. Hinge Pin (Cam Action) - V00937AXX
33. Thermostat Control Rod - V00938AXX
34. Spacer - V00956AXX
35. Firebar Frame - Z00039AXX
36. Firebar Driver - Z00040AXX
37. Firebar Driven - Z00041AXX
38. Fire Fence - Z00042AXX
39. Flue Cleaning Door - Z00045AXX
40. Hinge - U00193AXX
41. Door Handle - U00191AXX
42. Front Strip - V00932AXX
43. Badge - V00912AXX
44. Glass - T00100AXX
45. Glass Clip - F00003AXX
46. Door Latch - V00985AXX
