7
3
E
AA
A
3
2
4
1
H
B
B

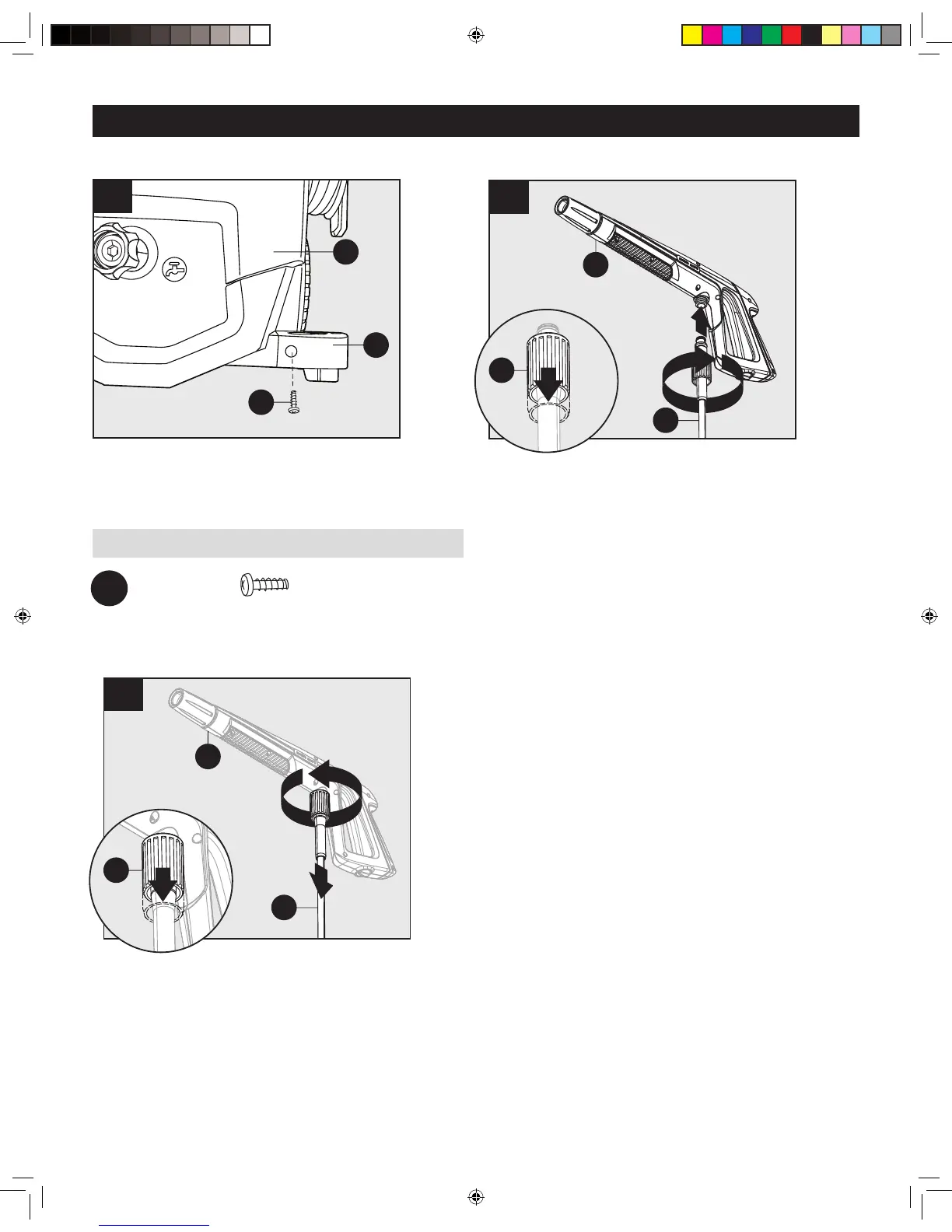

Soft PVC High Pressure Hose Assembly
Pull back on collar at the end of the Soft PVC high
pressure hose (B). Push firmly to connect hose to spray
gun (H). Twist collar to secure. Confirm hose is locked
into spray gun by slightly pulling on them. The hose is
now securely attached to spray gun.
Note: Soft PVC High pressure hose (B) is fitted to the
hose reel and ready to use. It only needs to be attached
to the spray gun (H).
Slip tab of stabilizer foot (E) into slot on bottom
right, when facing the unit, of power washer unit (A).
Secure with screw (AA).
1
3
5
H
B
B
Twist collar then pull back to release the Soft PVC
high pressure hose (B) connection from the gun (H).
Screw x 1
AA
To Next Page
