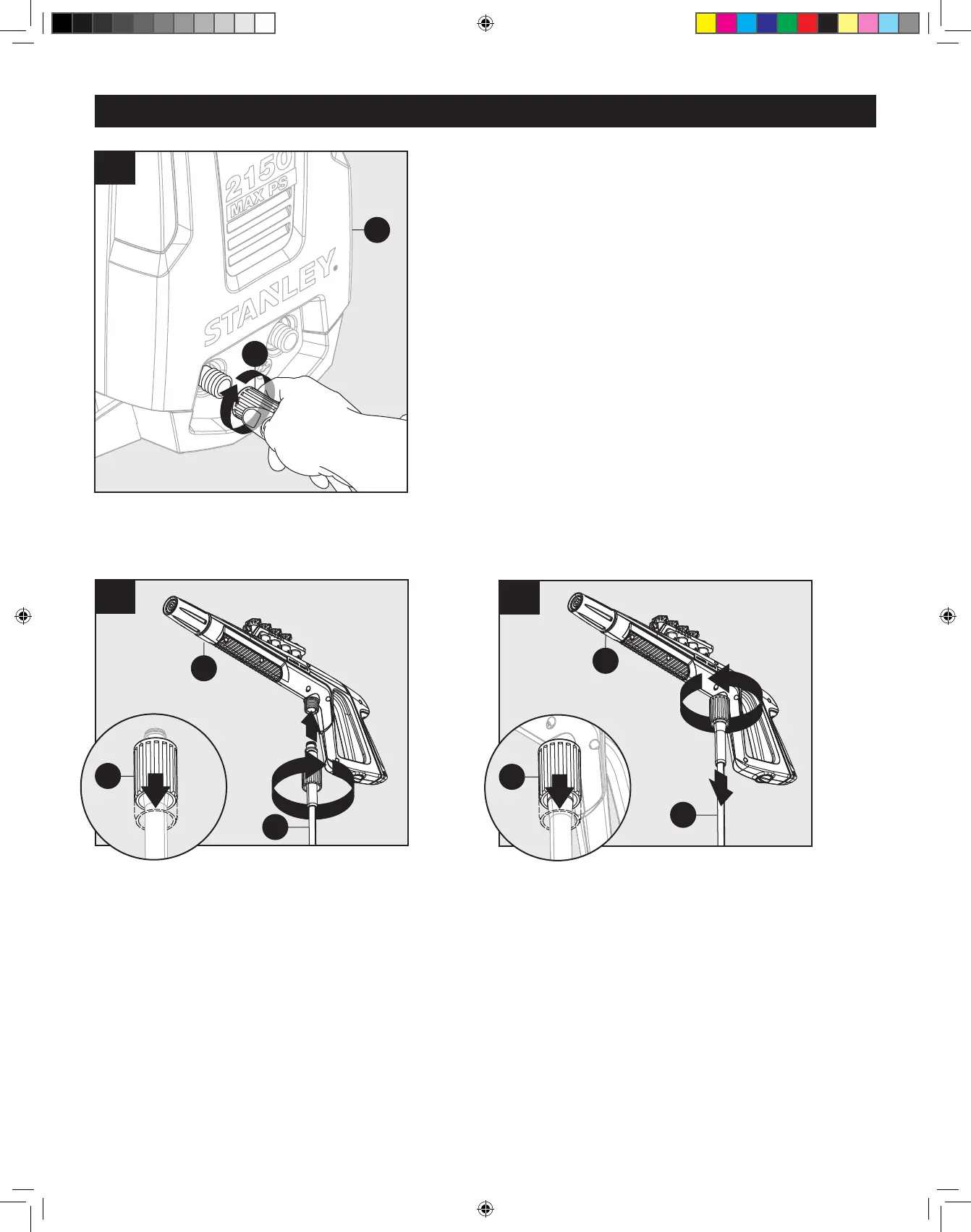

Soft PVC High Pressure Hose Assembly
Screw Soft PVC high pressure hose (D) clockwise onto
bottom front of power washer unit (A). Pull back collar
and insert o-ring post into water outlet far enough so
collar can thread onto outlet threads until hand tight.
If it takes fewer than six turns you have not properly
tightened the Soft PVC high pressure hose fitting. It is
easier to position the power washer in front of you to
ensure that the threads are started correctly. Failure to
properly tighten Soft PVC high pressure hose will result
in the hose slipping or popping off immediately upon
turning unit on. Do not worry about damage if this
occurs–just reinstall and take extra care when screwing
on the Soft PVC high pressure hose fitting.
Note: DO NOT use pliers or locking pliers to tighten.
1
3
5
H
D
D
Pull back on collar at the other end of the Soft PVC
high pressure hose (D). Push firmly to connect hose to
spray gun (H). Twist collar to secure. Confirm hose is
locked into spray gun by slightly pulling on them. The
hose is now securely attached to spray gun.
Twist collar then pull back to release the the high
pressure hose (D) connection from the gun (H).
