Stanley SLP 2050 - Handle Installation

7
ASSEMBLY INSTRUCTIONS
1
3
2
G
H
BB
4
3
2
2
1
G
B

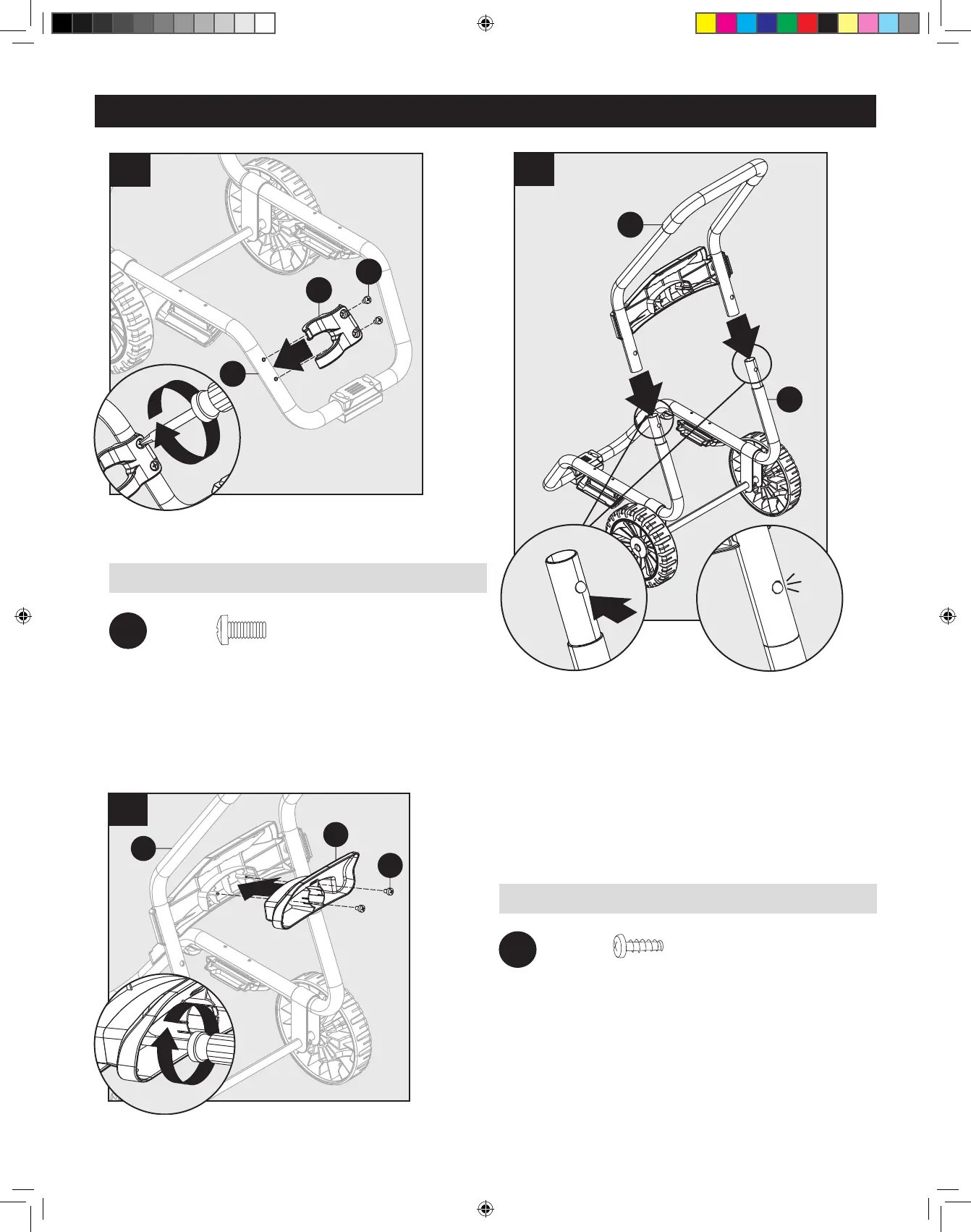

Install nozzle holder (H) to lower frame (G). Secure
with two screws (BB).
1
5
2
A
CC
B
Press buttons on lower frame (G) extensions and install
handle (B). Lower frame extensions will click when
handle is in proper position.
Install hose holder (A) onto back side of upper handle
(B). Secure with two screws (CC).
Screw
x 2
BB
AA
BB
CC
DD
Tornillo
Qty. 2
Perno de eje
Qty. 2
Tornillo
Qty. 2
Pasador de chaveta
Qty. 2
Hardware Used:
Screw
x 2
CC
AA
BB
CC
DD
Tornillo
Qty. 2
Perno de eje
Qty. 2
Tornillo
Qty. 2
Pasador de chaveta
Qty. 2
Hardware Used:
93919_16ANR024_Stanley 2-in1_ENG-FR-SP_11_17.indd 7 16/12/23 下午1:06
