ASSEMBLY INSTRUCTIONS
6
B
M

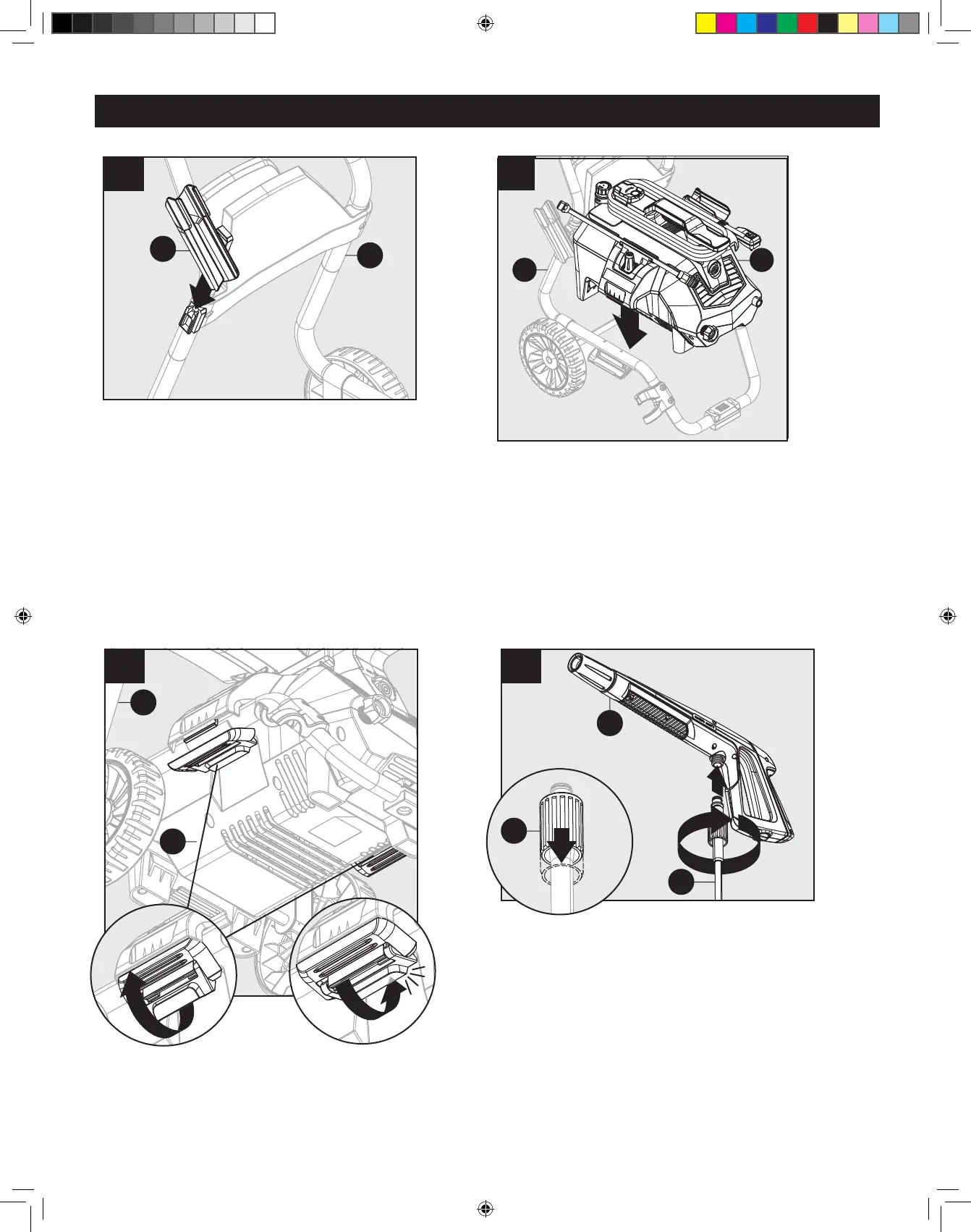

Slide spray gun holster (M) into place on the
upper handle (B).
Place power washer unit (F) into position on the lower
frame (G).
7
F
G
7
F
G
8
1
2
F
G
Pull upward on latches that are located on
sides of lower frame (G). Once upper latch is flush
with the lower lip, push down until lower latch clicks
into place.
3
2
9
1
K
N
N
Pull back on collar at one end of soft PVC hose (N).
Push firmly to connect hose to spray gun (K). Twist
collar to secure. Confirm hose is locked into spray gun
by slightly pulling on them. The hose is now securely
attached to spray gun.
