19
RE-FUELLING
Riddle the fire by connecting the grate operating tool
onto the rocker connection located at the bottom
front of the stove, then gently pull and push the rock-
er arm until all dead ash has fallen through into the
ashpan. Before opening the door, open the spin
valve by turning it anti-clockwise, as this will help to
eliminate any smoke or fly ash resident in the com-
bustion chamber. Add fuel to the fire, close fire door
and re-set spin valve to required setting.

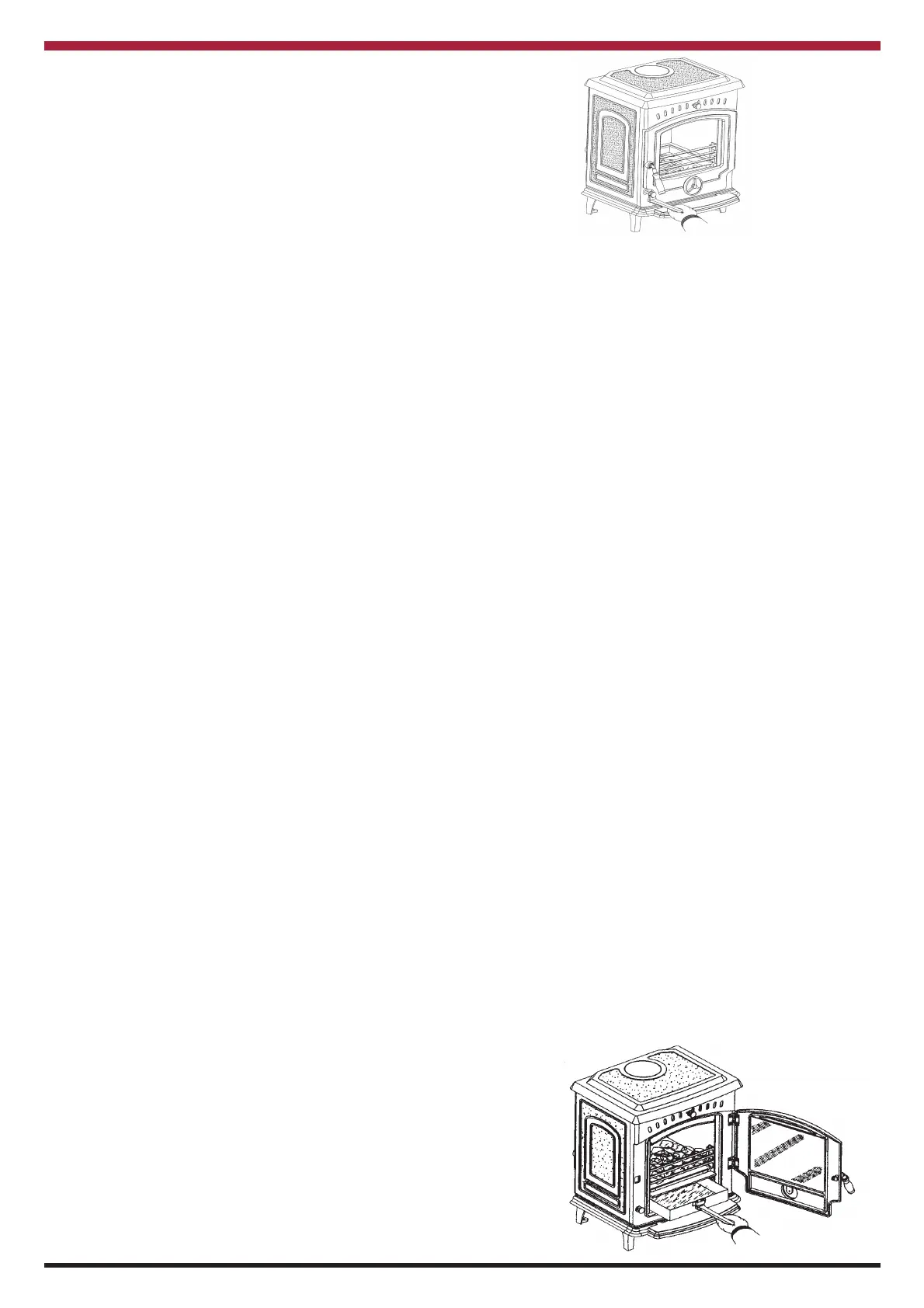

Fig.21
DE-ASHING
Never allow ashpan to over fill as it will cause dam-
age to fire fence. When ash build-up becomes
excessive in the fire chamber riddle the fire until all
dead ash has fallen through to the ashpan.Open the
front door and remove ashpan using the operating
tool. Close the front door. When the ash is disposed
of, replace the empty ashpan.
SLOW BURNING
Slow burning will cause the window glass to black-
en and should not be used for a long period.
Opening the air controls will increase the heat out-
put and should remove most of the soot deposits
from the glass. For low burning setting close the
secondary air control fully and open the spin valve
so that it is between 0.5 - 1 mm open. This opening
size should be taken as a guideline and may need
to be increased/decreased depending on the
draught generated by the chimney to which the
stove is connected.
DISPOSAL OF ASHES
Your stove is supplied with a steel ashpan. The ash-
pan must be emptied every day.
If ashes are allowed to build up to grate level the fire-
box insert could be damaged by overheating. We
recommend that you remove ashes after you have
riddled the fire.
Ashes should be placed in a metal or other non-
combustible container with a tight fitting lid. The
closed container of ashes should be placed on a
non-combustible material, pending final disposal. If
ashes are buried in soil, or otherwise dumped they
should be retained in the closed container until they
are thoroughly cooled. See Fig. 22
Fig.22
LIGHTING THE STOVE
1. Before lighting the stove, ensure that any
build-up in the firebox has been removed
and that the ashpan has been emptied.
2. Open the primary air inlet by turning the
spin valve at the front of the stove anticlock-
wise (See Fig. 18)
3. Open the window wash control by sliding
the control knob located over the top of the
fire door to the left (See Fig. 19) and for the
Non Boiler/ DHW model, pushing in the
secondary air control (See Fig. 20)
4. Lay a few crumpled sheets of paper on the
grate, a few small sticks, kindling or an
approved firelighter, add a small quantity of
fuel. Light the fire and close the firebox
door.
5. Never use inflammable liquid i.e. gasoline,
petrol, paraffin etc. to start or freshen up a
fire in this heater.
6. When the fire is well established add fuel to
the firebox and adjust the air controls as
required depending on the fuel type being
used and the heat output required (see
table in air controls section). All controls
should be adjusted in conjunction with each
other to set the appropriate burn rate with
exact setting on each control depending on
the draught condition of the chimney to
which the unit is connected.
USER INSTRUCTIONS
LIGHTING
Before lighting the stove check with the installer,
that the installation work and commissioning
checks described previously have been carried out
correctly and the chimney has been swept clean, is
sound and free from any obstructions. As part of
the stove commissioning and handover the installer
should demonstrate how to operate the stove cor-
rectly.
