Stanley Tara User Manual

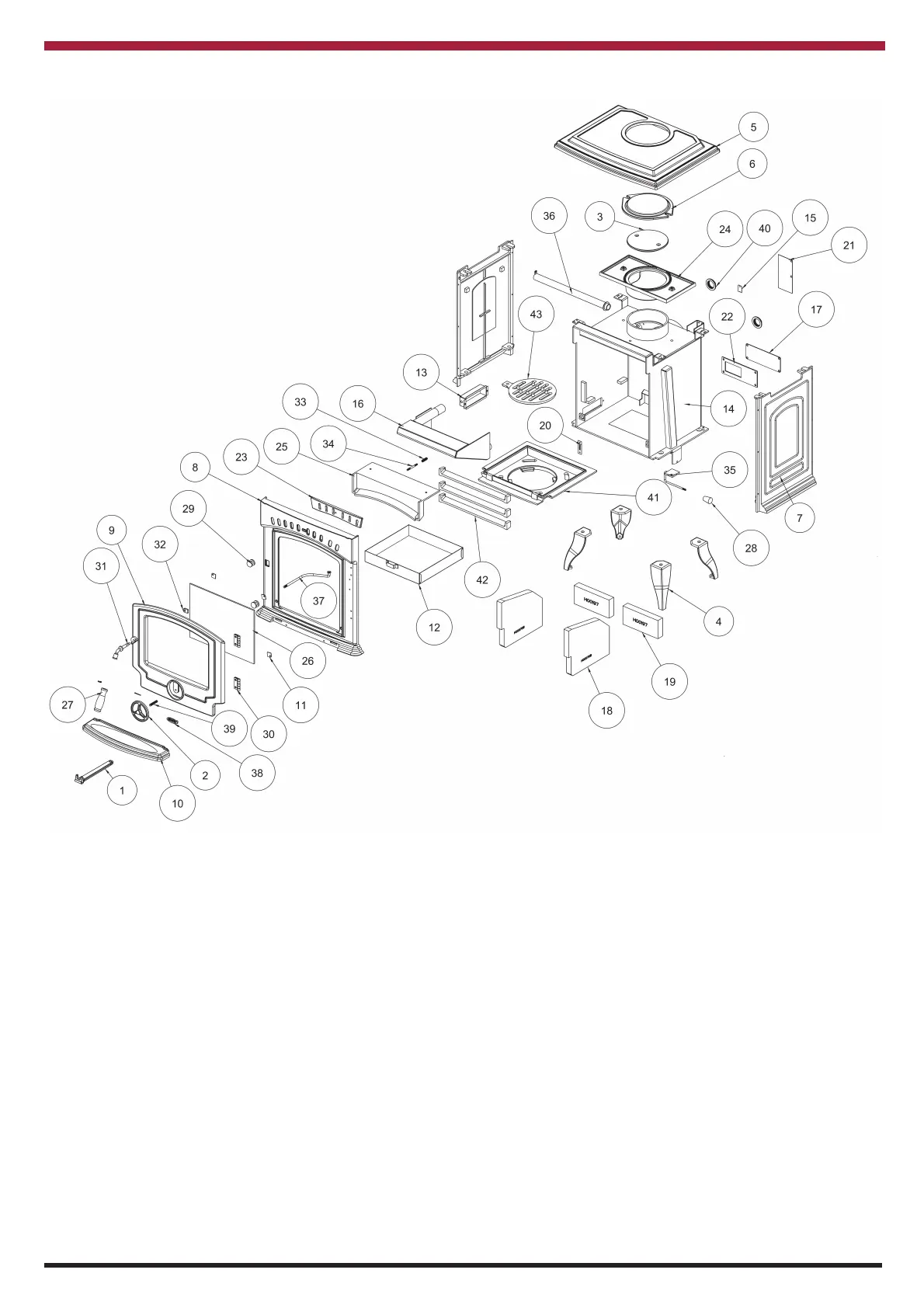

TARA DHW EXPLODED VIEW
1. OPERATING TOOL - B00009BZZ
2. SPIN VALVE - B00012AZZ
3. FLUE BLANKING PLATE - B00064AZZ
4. LEG (LONG) - B00077BZZ
5. HOB - B00209AZZ
6. HOB BLANKING PLATE - B00210AZZ
7. SIDE PANEL - B00211BZZ
8. FRONT PANEL - B00257JZZ
9. FRONT DOOR - B00258CZZ
10. ASHTRAY FRONT - B00259AZZ
11. DOOR GLASS CLIP - F00003AXX
12. ASHPAN - F00221AXX
13. PULL ROD BOX - F00223BXX
14. DRY SHELL - F00238DXX
15. RATING PLATE HOOK - V01072AXX
16. TARA DHW BOILER - F00948AXX
17. BLANKING PLATE - F01029AXX
18. SIDE BRICK - H00070BXX
19. TARA BRICK FOR DRY SHELL - H00197AXX
20. SERIAL NUMBER PLATE - N00234BXX
21. DATA PLAQUE - N00566AXX
22. OSA DAMPER GASKET - P00101AXX
23. SECONDARY AIR WASH SHUTTER - Q00247AXX
24. DRY SHELL PROT. PLATE - Q00250AXX
25. AIR WASH PLATE - Q00564AXX
26. GLASS WINDOW - T00009AXX
27. DOOR HANDLE (Long) - U00009AXX
28. SECONDARY AIR CONTROL - U00018AXX
29. AIR WASH KNOB - U00077AXX
30. HINGE - U00153AXX
31. DOOR HANDLE AXLE - V00022BXX
32. DOOR LATCH - V00023AXX
33. SPRING (RS - 751 - 584) - V00151AXX
34. AIR WASH SHUTTER SHAFT - V00158AXX
35. SECONDARY AIR DAMPER - V00161AXX
36. SECONDARY AIR TUBE - V00162AXX
37. PULL ROD - V00393AXX
38. BADGE - V00730BXX
39. M8 X 44 SPINDLE - V00763AXX
40. BRASS NUT FLANGED - W00910AXX
41. FIRE BOX INSERT - Z00016BXX
42. FIRE FENCE - Z00020AXX
43. GRATE - Z00025BXX
