Star DTS27 - Connection Diagram

Operation Manual of DTS27 Three-phase Energy Meter
6
09
SIM card cover
10
Push button
11
Reserved button
12
Sealing screw of battery cover
13
Battery cover
14
Sealing screw of upper cover
15
Terminal screws
16
Base
17
Hanging hook
18
LCD
19
4xLEDs (Active energy pulsing, Reacitve energy pulsing ,alarm, Power )

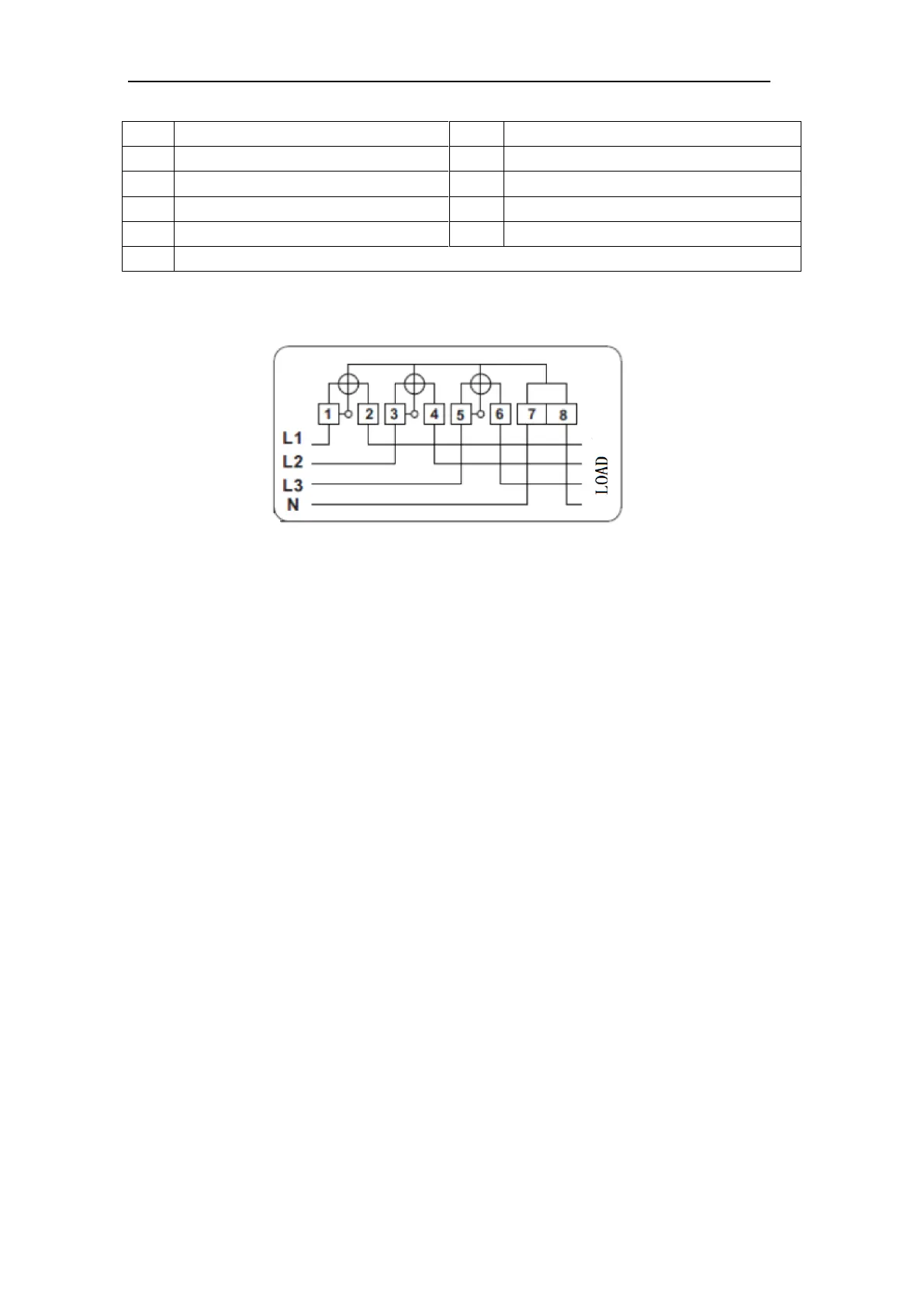

2.2 Connection diagram
Terminals description:
1: Phase line L1 in, 2: Phase line L1 out, 3: Phase line L2 in, 4: Phase line L2 out
5: Phase line L3 in, 6: Phase line L3 out, 8: Phase line N in, 8: Phase line N out
