Attaching a Monitor Using the VESA Mount
1. Align the Mounting Holes (x 4) on the Monitor Mount with
the mounting holes on the back of the Monitor.
2. Insert the Thumb Screws through the Monitor Mount and
into the back of the Monitor.

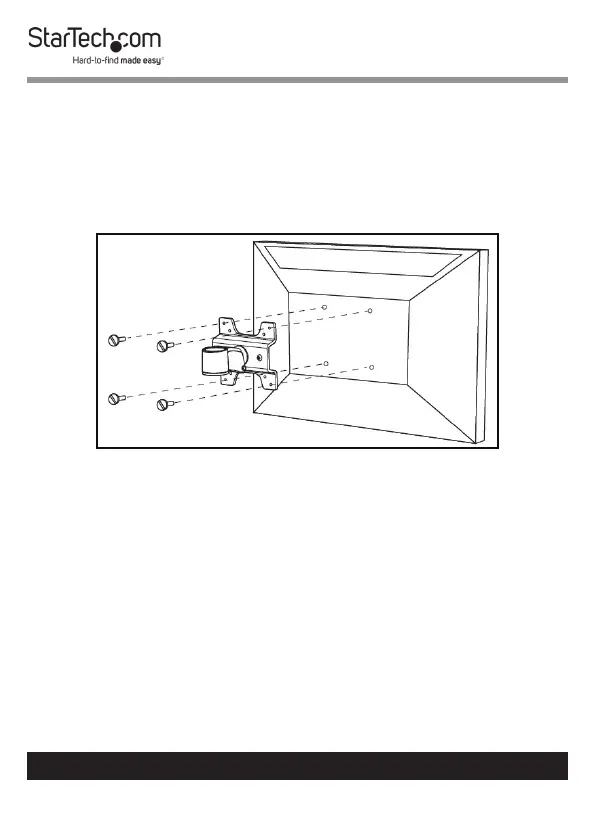

Mounting the Monitor Using the VESA Mount
3. Using your ngers, tighten the Thumb Screws.
Warning! Do not over-tighten the screws. If you encounter
resistance while you’re tightening the screws, stop tightening.
Failure to do so could result in damage to the monitor.

StarTech.com ARMPIVOTB2 Specifications

General

Certification	CE, TAA, REACH
Product color	Silver
Housing material	Aluminum
Sustainability certificates	RoHS
Mounting type	Desk
Maximum VESA mount	100 x 100 mm
Minimum VESA mount	75 x 75 mm
Maximum screen size	34 \
Minimum screen size	12 \
Desk thickness (max)	60 mm
Desk thickness (min)	20 mm
Maximum weight capacity	14 kg
Pan range	-180 - 180 °
Tilt angle range	-15 - 90 °
Angle of rotation	360 °
Wrench type	Hexagonal wrench
Wrench included	Yes
Number of screws	6
Master (outer) case width	480 mm
Master (outer) case height	31 mm
Master (outer) case length	700 mm
Harmonized System (HS) code	85299097
Quantity per master (outer) case	6 pc(s)

Weight and Dimensions

Width	320 mm
Height	520 mm
Weight	2500 g
Package depth	465 mm
Package width	225 mm
Package height	145 mm
Package weight	3200 g
