Instruction manual
20

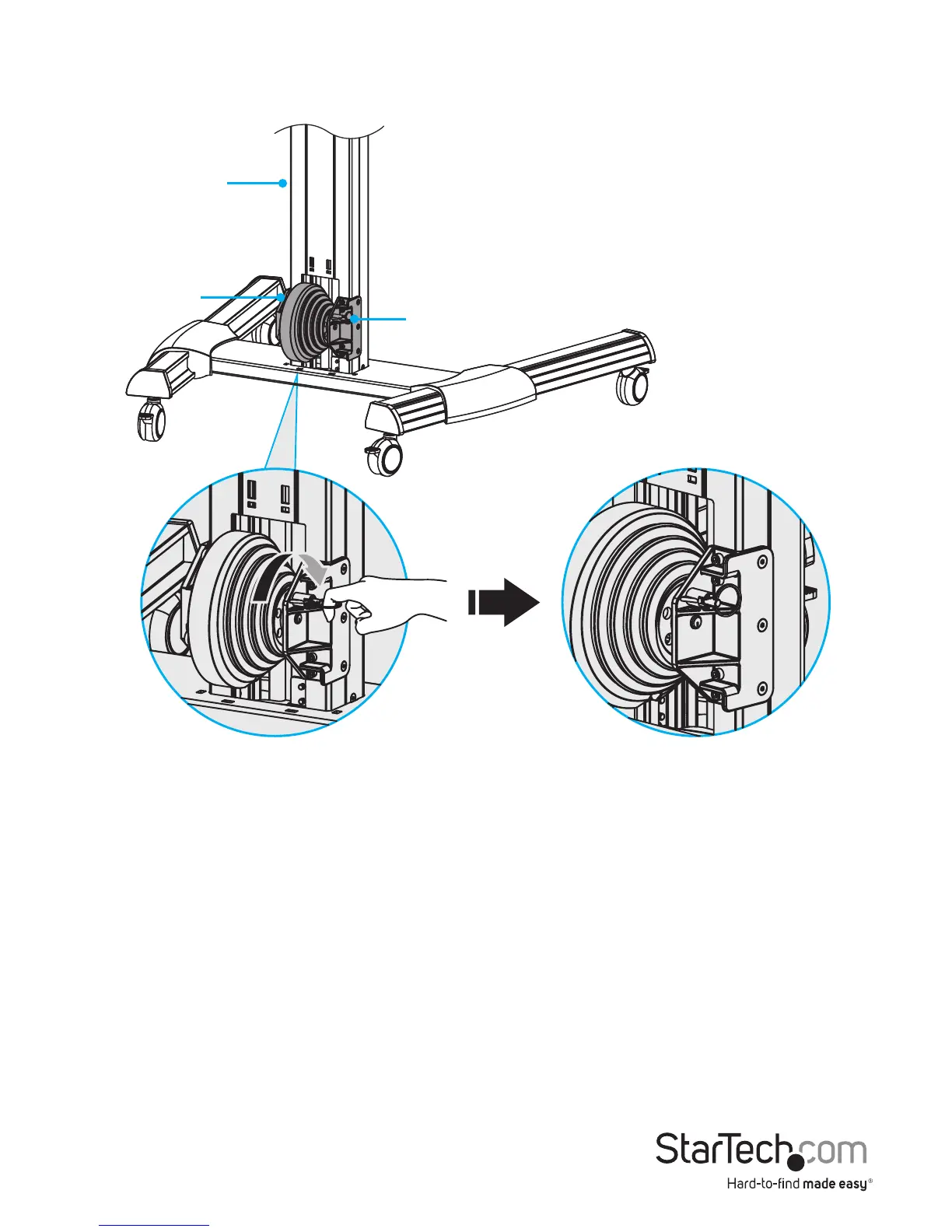

1. To unlock the vertical position of the support plate, at the bottom of the column,
next to the spool, pull the pin out and turn it to the unlocked position. (gure 13)
gure 13
2. Pull the support plate and adapter brackets down until they are at the bottom of the
column.
3. Pull the pin and turn it to the locked position.
4. To make sure that the pin is properly aligned in one of the holes, pull up or push
down on the support plate. You may hear a clicking sound as the spring-loaded pin
goes into the hole and prevents the spool from rotating.
Caution! If the pin is misaligned and isn’t fully inserted into one of the holes on the
spool, the vertical position isn’t locked and the TV could free fall down the column or
spring upwards, resulting in damage to the TV or personal injury.
When the pin is aligned in one of the holes and the support plate is locked in place, it
shouldn’t move if you pull up or push down on it.
Column
Spool
Pin
