Attach the camera shelf

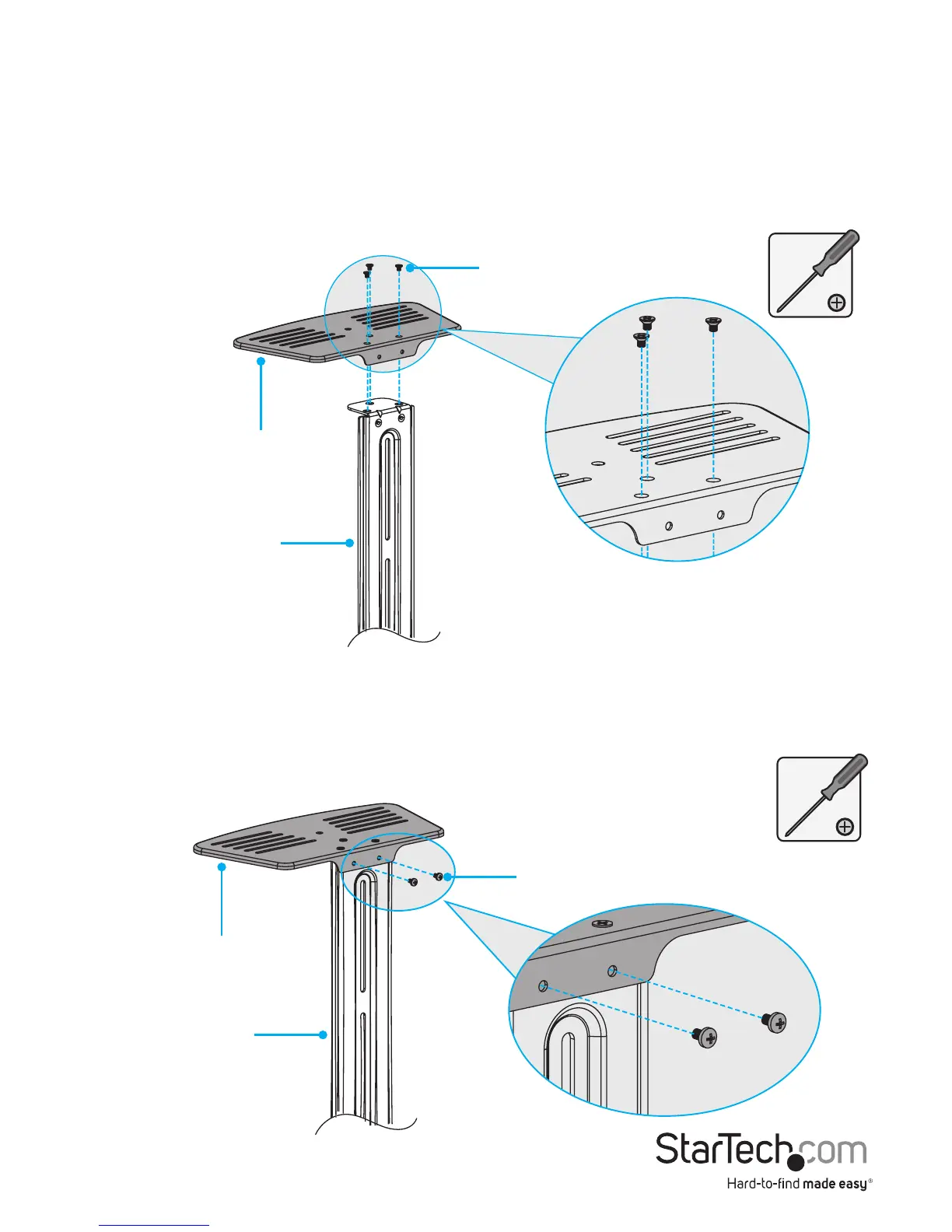

1. Line up the holes on the camera shelf with the holes on the end of the connecting
plate.
2. Insert the three countersunk screws through the top of the camera shelf and into
the connecting plate.
3. Use a Phillips type screwdriver to tighten the countersunk screws. (gure 26)
gure 26
4. Insert the two M4x6 mm screws into the camera shelf and into the side of the
connecting plate. (gure 27)
5. Use a Phillips type screwdriver to tighten the screws in place.
gure 27
Camera shelf
Connecting plate
Countersunk screw
M4x6 mm screw
Camera shelf
Connecting plate
