Attach the adapter brackets to a recessed mounting surface
To accommodate dierent TV designs, the STNDMTV70 comes with ve sets of screws
of dierent lengths and diameters, TV washers with two hole sizes, and two sizes of
spacers.
Warning! Make sure that the weight of the TV doesn’t exceed the weight capacity of
this product. If you exceed the weight capacity, you might experience personal injury
or damage to the product.
This product can support the following weight: between 8 to 30 kg (18 to 66 lb.).
1. To select the combination of mounting hardware that you need to use to attach the
adapter brackets to the TV, complete the following:
• Determine the depth of the mounting holes on the TV.
• Determine the diameter of the mounting holes on the TV.
2. Consult the images below and on the next page to see the dierent hardware
combinations available, and select the one that works best with the TV.

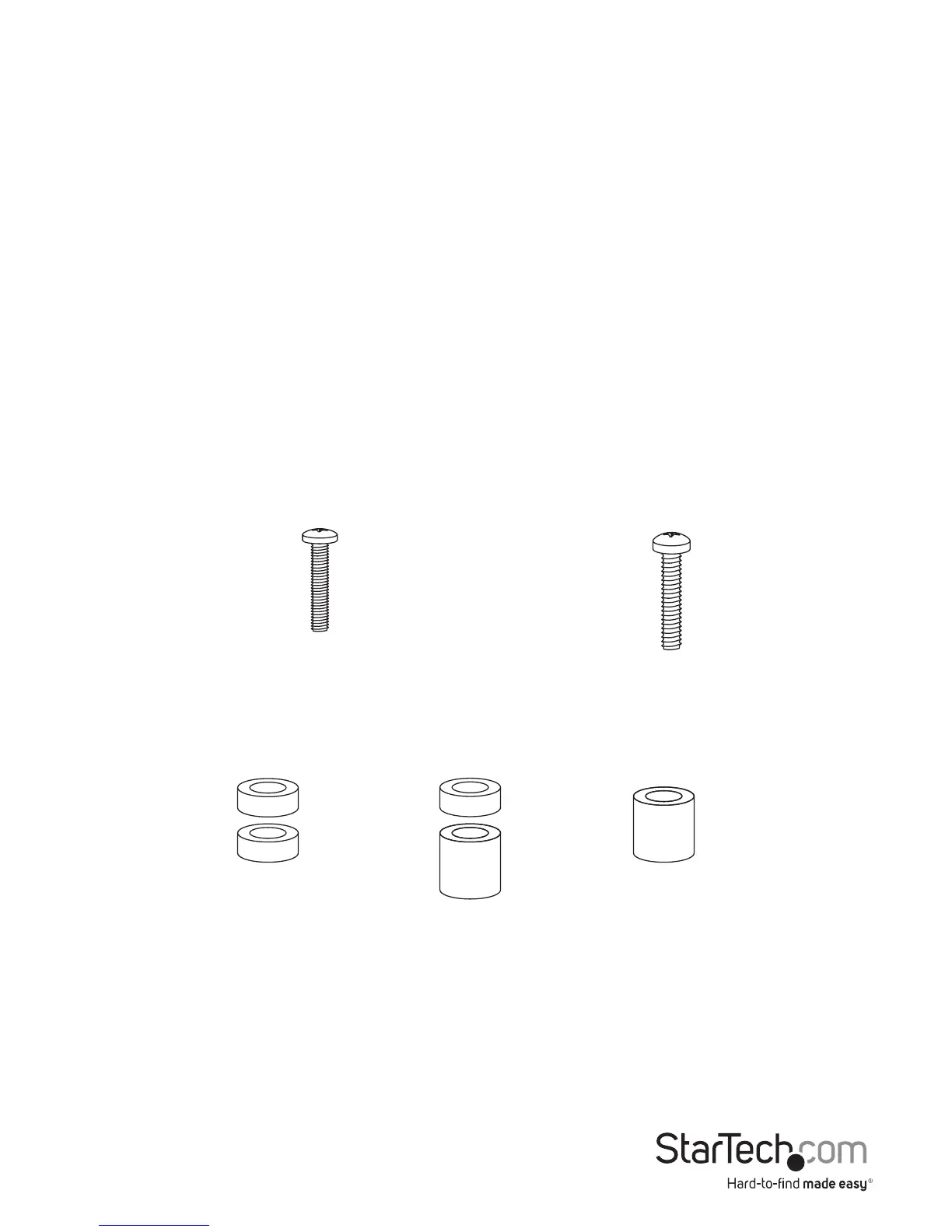

M6x30 mm screw
M8x30 mm screw
or
or
or
combined with
M8x50 mm hardware combinations are illustrated on the next page
2 small spacers
1 small spacer
1 large spacer
1 large spacer
