Instruction manual
24

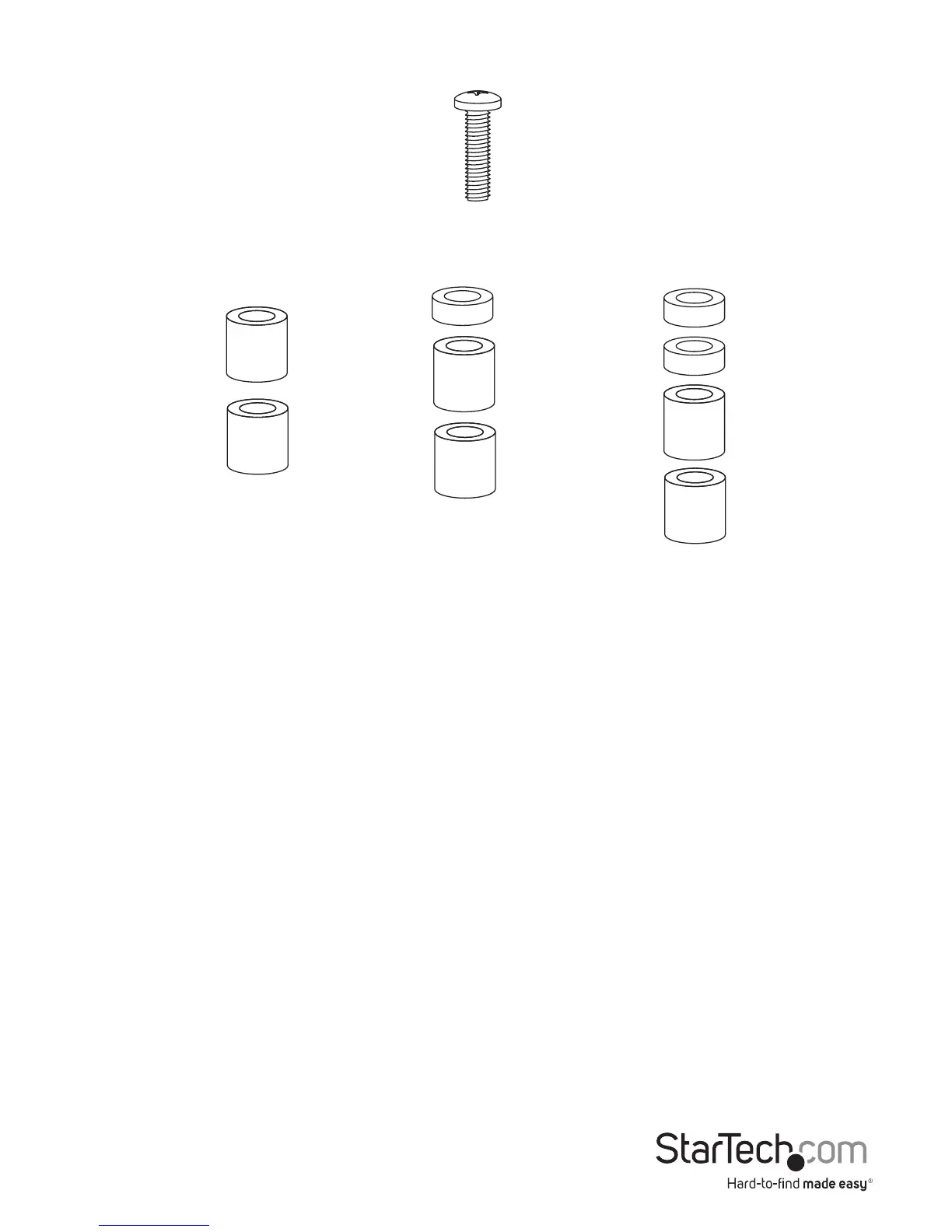

M8x50 mm
combined with
or
or
3. Position the adapter brackets so that the hooks on the adapter brackets are pointed
towards the bottom of the TV and are aligned with the mounting holes on the back
of the TV.
4. Depending on the screw size that you’re using, place the TV washers so that either
the small or large holes are positioned over the adapter brackets.
5. Insert the M6x30 mm screws, M8x30 mm screws, or the M8x50 mm screws through
the TV washers, adapter brackets, spacers, and into the back of the TV.
6. Use a Phillips type screwdriver to tighten the screws. (gure 15)
Warning! Do not over-tighten the screws. If you encounter resistance while you’re
tightening the screws, stop tightening. Failure to do so could result in damage to
the TV.
2 large spacers
1 small spacer
2 large spacers
2 small spacers
2 large spacers
