StarTech.com USB2G4LEXT2 User Manual

Instruction Manual
9
With Wall Network Ports
1. Connect a Cat 5e or better cable (not provided) into the RJ45 wall outlet near the
host computer.
2. Connect the opposite end of the cable into the Link port of the Local Extender.

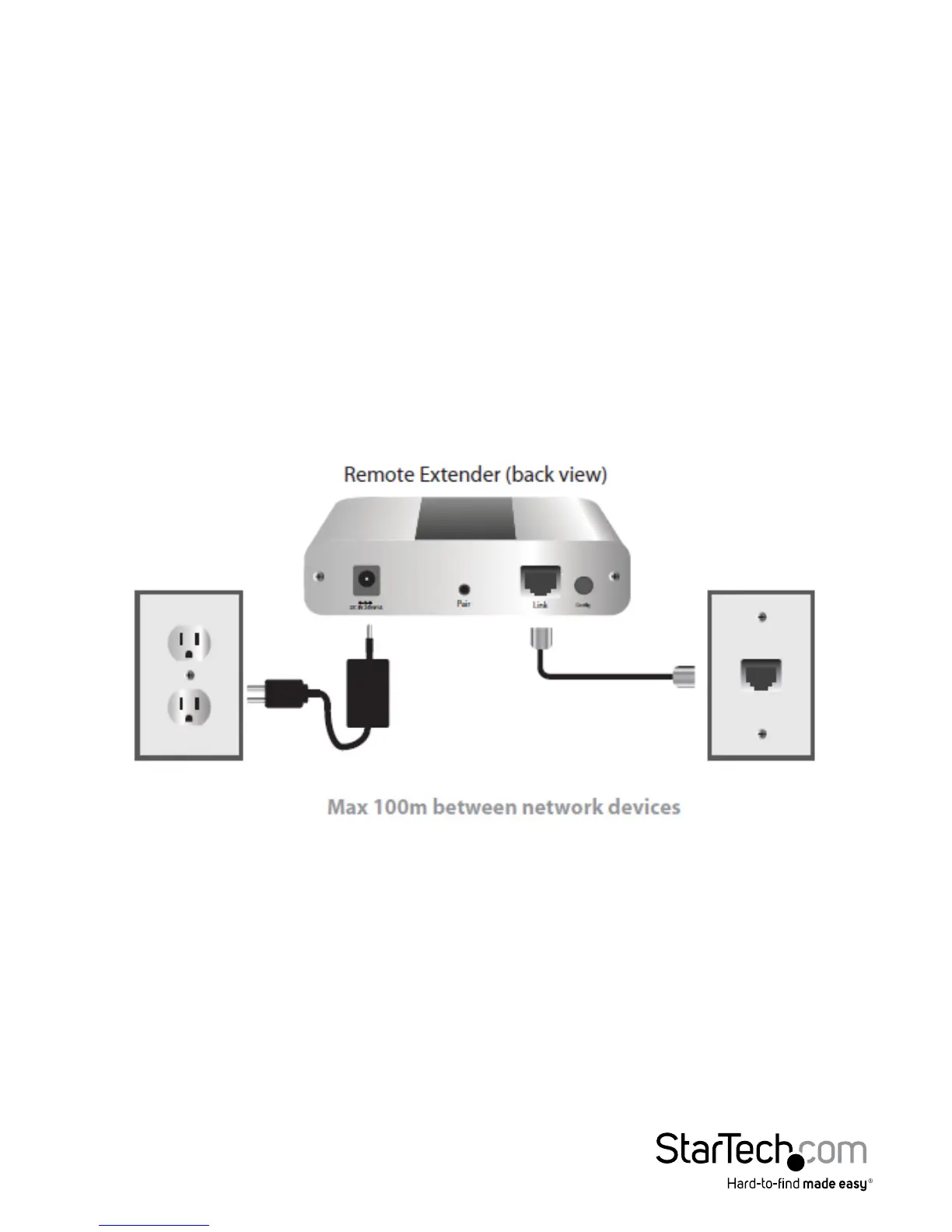

3. Connect a Cat 5e or better cable (not provided) into the RJ45 wall outlet near the
USB devices.
4. Connect the opposite end of the cable into the Link port of the Remote Extender.
Installing the Remote Extender
1. Place the Remote Extender near the USB device(s).
2. Connect the provided power adapter to an available AC power outlet, and to the
Power port of the Remote Extender.
3. Attach your USB device(s) to the Remote Extender.

StarTech.com USB2G4LEXT2 Specifications

General

DC-in jack	Yes
RJ-45 ports quantity	2
USB 2.0 Type-A ports quantity	4
USB 2.0 Type-B ports quantity	1
Type	Console transmitter & receiver
Certification	FCC, CE
Product color	Black
LED indicators	Activity, Link, Power
Housing material	Aluminum
Cable types supported	Cat5e, Cat6
Maximum transfer distance	100 m
Sustainability certificates	RoHS
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Input current	0.6 A
Input voltage	100 - 240 V
Output current	1 A
Output voltage	24 V
Power plug type	Type M
Power consumption (typical)	24 W
Master (outer) case width	403 mm
Master (outer) case height	275 mm
Master (outer) case length	565 mm
Harmonized System (HS) code	84733020
Quantity per master (outer) case	20 pc(s)

Weight and Dimensions

Depth	100 mm
Width	76 mm
Height	26 mm
Weight	363 g
Package depth	197 mm
Package width	194 mm
Package height	108 mm
Package weight	1200 g
