StarTech.com USB2G4LEXT2 User Manual

Instruction Manual
7

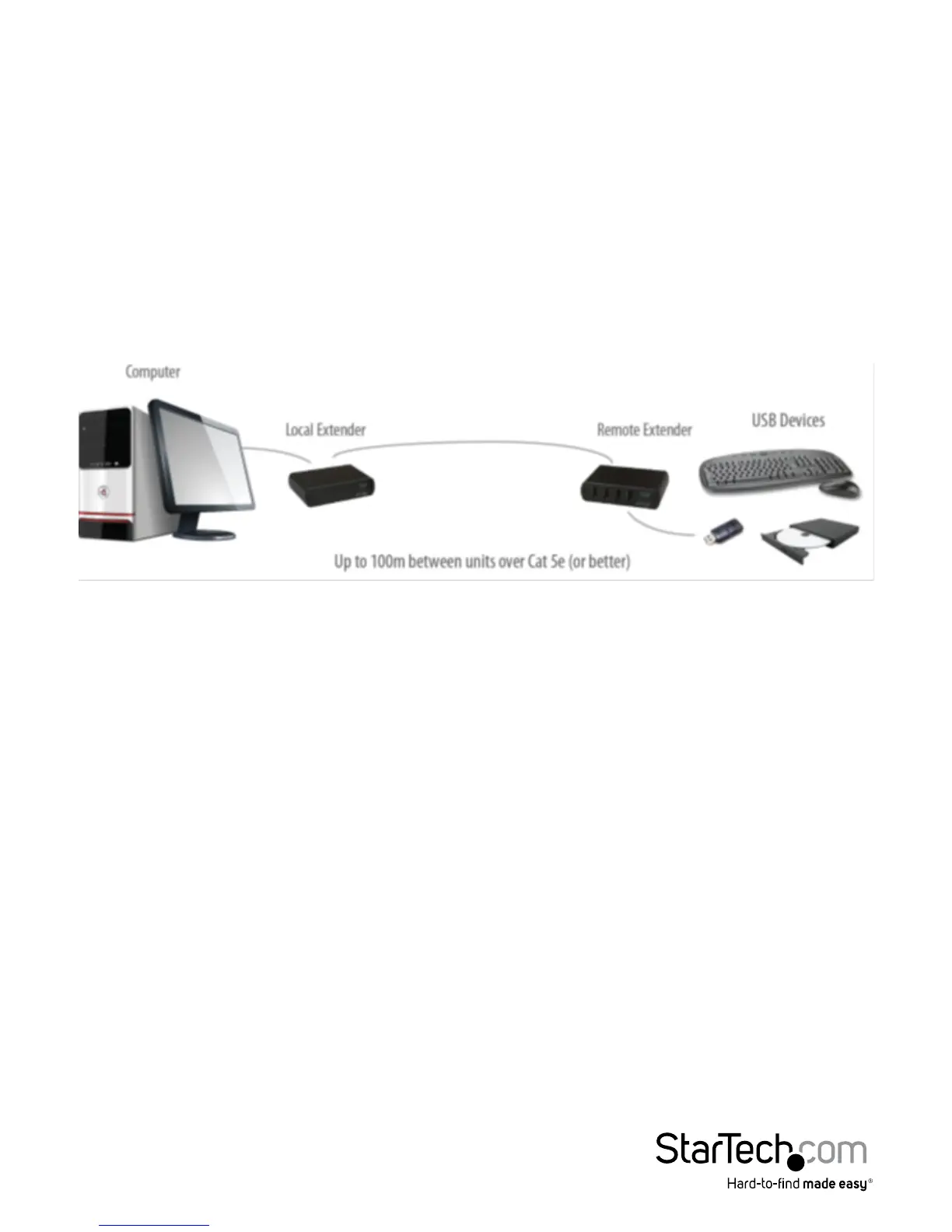

Direct Connect
Installing the USB2G4LEXT2 as Direct Connect
Requirements
To complete the installation, you will also require the following items that are not
included with the product:
• USB compatible computer (host computer) with a USB compliant operating system
• USB compatible device(s)
• One or Two Cat 5e (or better) cables
Preparing Your Site
Before you can install the USB2G4LEXT2, you need to prepare your site:
1. Place the computer where desired and set it up.
2. Ensure that where you want to locate the USB device(s) is within 100m (300ft) of the
computer. If not, adjust the location of the devices and/or computer accordingly.
Installing the Local Extender
1. Place the Local Extender near the computer.
2. Connect the provided USB cable between the Local Extender’s host port and a USB
port on the host computer.

StarTech.com USB2G4LEXT2 Specifications

General

DC-in jack	Yes
RJ-45 ports quantity	2
USB 2.0 Type-A ports quantity	4
USB 2.0 Type-B ports quantity	1
Type	Console transmitter & receiver
Certification	FCC, CE
Product color	Black
LED indicators	Activity, Link, Power
Housing material	Aluminum
Cable types supported	Cat5e, Cat6
Maximum transfer distance	100 m
Sustainability certificates	RoHS
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	USB
Input current	0.6 A
Input voltage	100 - 240 V
Output current	1 A
Output voltage	24 V
Power plug type	Type M
Power consumption (typical)	24 W
Master (outer) case width	403 mm
Master (outer) case height	275 mm
Master (outer) case length	565 mm
Harmonized System (HS) code	84733020
Quantity per master (outer) case	20 pc(s)

Weight and Dimensions

Depth	100 mm
Width	76 mm
Height	26 mm
Weight	363 g
Package depth	197 mm
Package width	194 mm
Package height	108 mm
Package weight	1200 g
