During the downloading process, the 4 LEDs on the U8W download tool will be displayed in marquee mode. After
the download is complete, if the download is successful, the 4 LEDs will be on and off at the same time; if the
download fails, all the 4 LEDs will be off.
The target chip is connected to U8W by the user system lead, and U8W and the user system are independently
powered for offline download

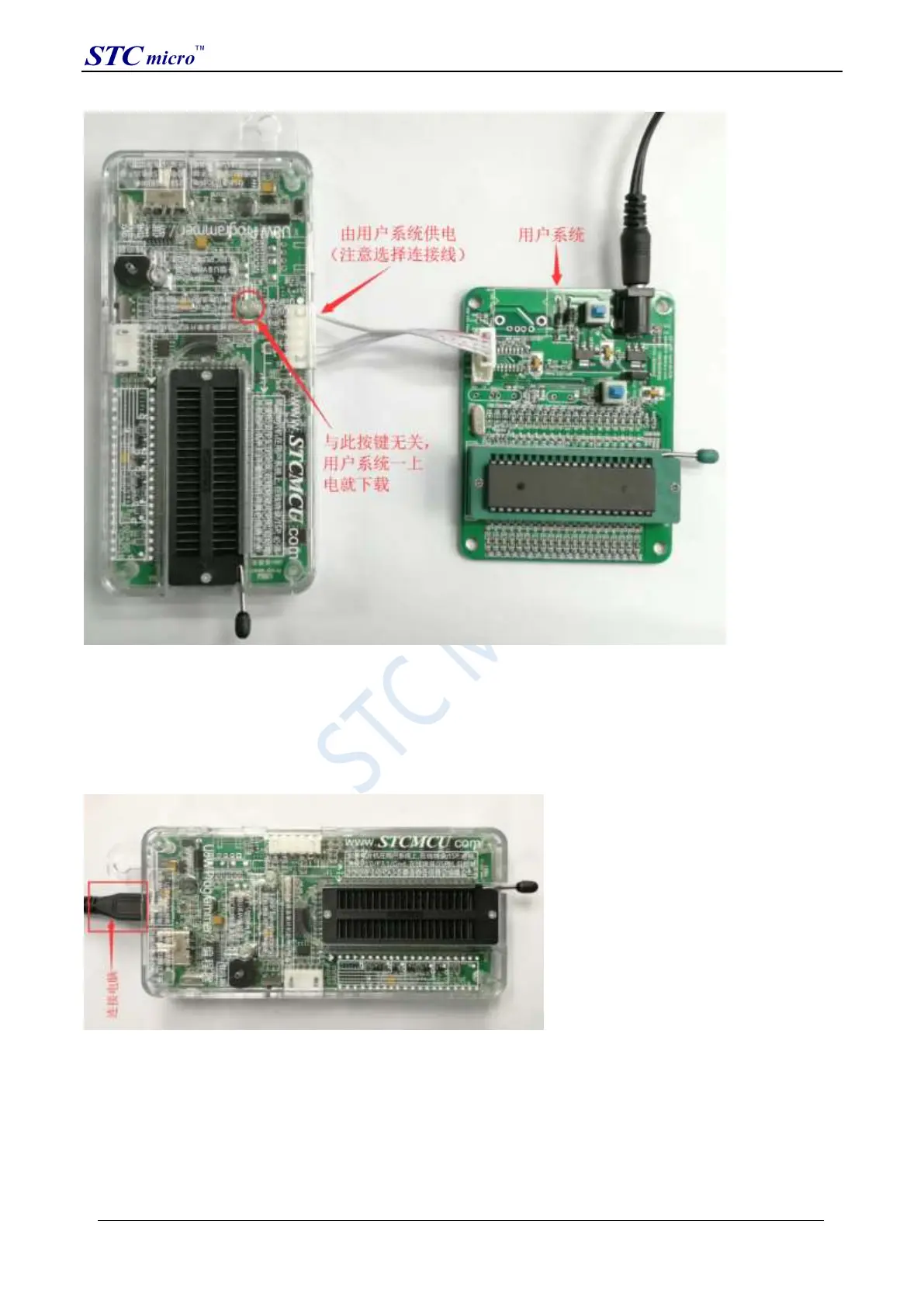

(1) Firstly, use the USB cable provided by STC to connect the U8W download board to the computer, as shown
below:
(2) Set up in the STC-ISP download software according to the steps shown in the figure below:
It is recommended that users use the latest version of STC-ISP to download the software (please always pay attention
to the updates of the STC-ISP download software on the STC official website http://www.STCMCUDATA.com. It is
strongly recommended that users download the software from the official website http://www.STCMCUDATA.com).
