- 31 -
STC8H Series Manual

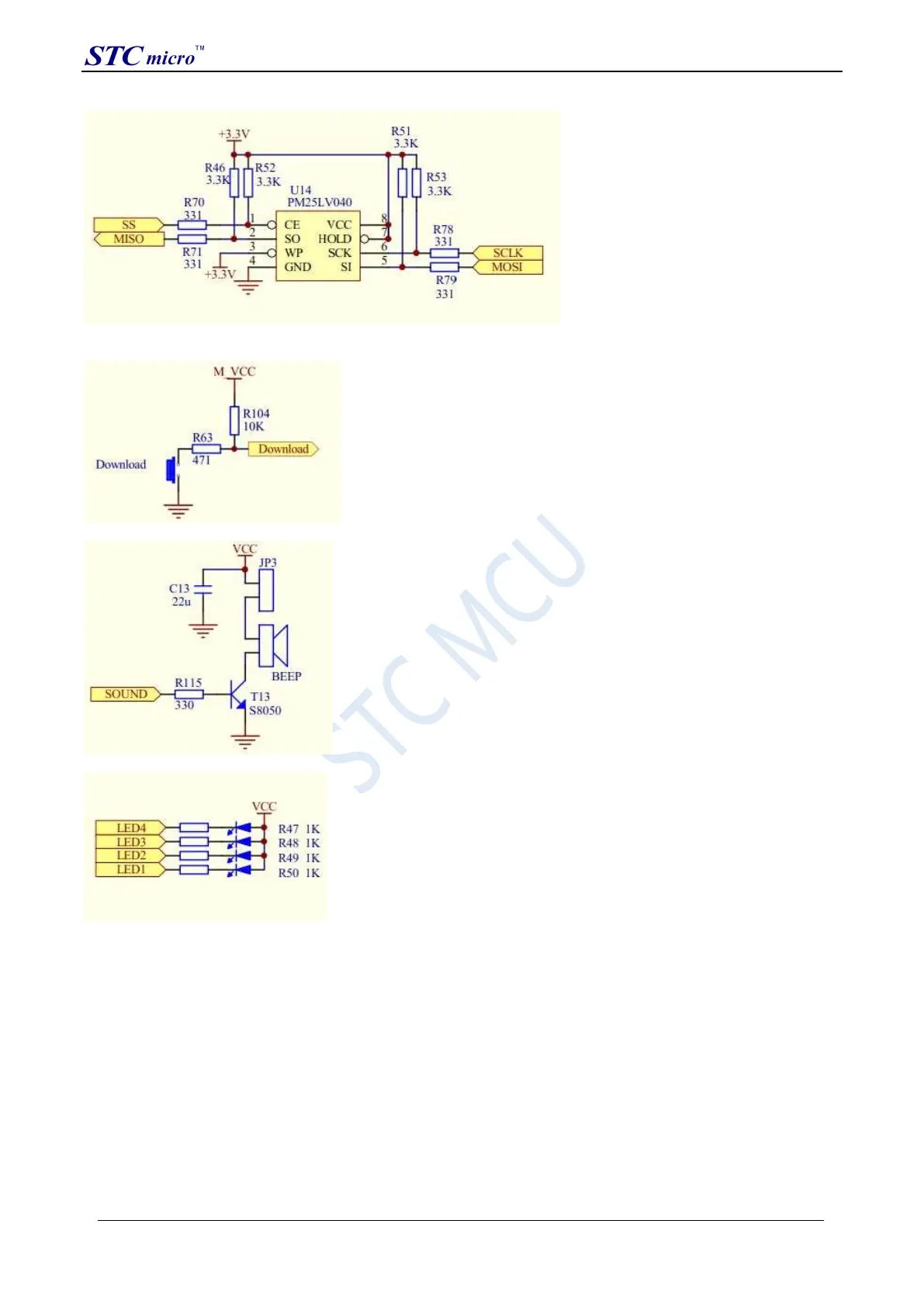

This Flash memory is required when the user program is larger than 41K
The reference circuit diagram of the button part:
Reference circuit diagram of the buzzer part:
LED display part reference circuit diagram:
Reference circuit diagram of serial port communication pin connection part:
STC Tool Instruction Manual
