9.2 General operating functions
• Hidden content is shown using the and buttons.
• Repeated button presses: If need to be pressed repeatedly, you can alternatively hold these
buttons pressed for a long time. The rate of repetition increases the longer the button is held.
• Pressing any button switches on the backlight of the display if this has previously automatically
switched off.
9.3 Main operating functions

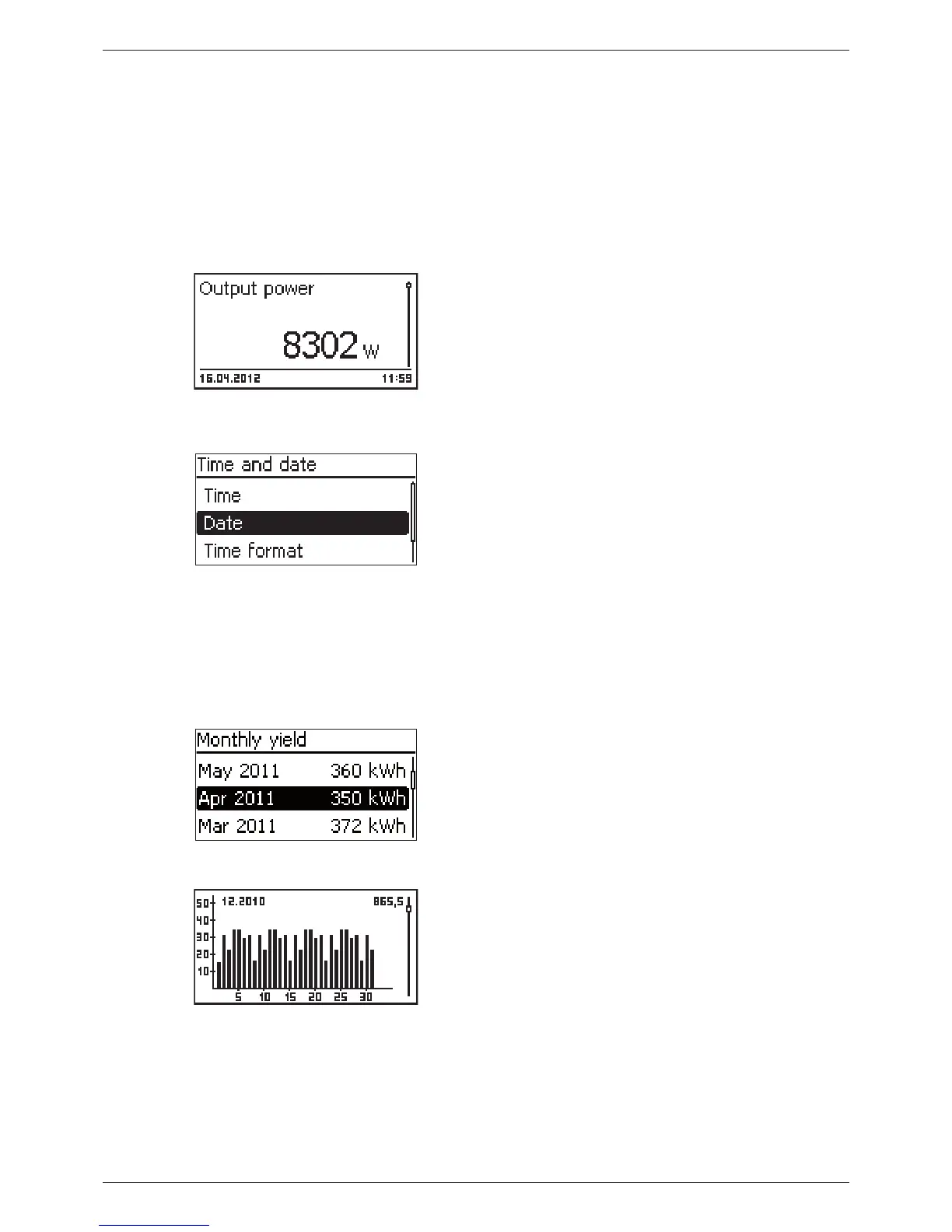

The figures in this section show examples.
Status display
1. Press ESC for 1 second to call up the status display as
required (fig. left).
2. Press to display a different status value.
Menu navigation
1. Press ESC for 1 second to call up the status display as
required.
2. Press SET. The main menu is displayed with the top
item selected.
3. Press to select a menu entry.
4. Press SET to call up the submenu (fig. left).
5. Repeat steps 3 and 4 for further submenus as required.
Event messages
See Section 11 on p. 73 onwards.
Displaying yields numerically (list) and graphically (chart)
√ The status display is shown.
1. Press SET. The main menu is displayed with Yield
selected.
2. Press SET. The list with yield time periods is shown.
3. Press to select a yield time period.
4. Press SET. The individual yields for the yield time period
are shown in a list (fig. upper left).
5. Press to select an individual yield value.
6. Press SET. The selected individual yields are shown in a
chart (fig. lower left).
7. Press to page through the charts.
8. Press SET to return to the list.
68
744.378 | 12.13
EN
