4 Installation
4.1 Opening / closing the casing
DANGER
Risk of death by electrocution!
Disconnect the controller from the power supply
before opening the casing.
Make sure that the power supply cannot be unin-
tentionally switched back on.
Do not damage the casing.
Only switch the power supply back on after the cas-
ing has been closed.

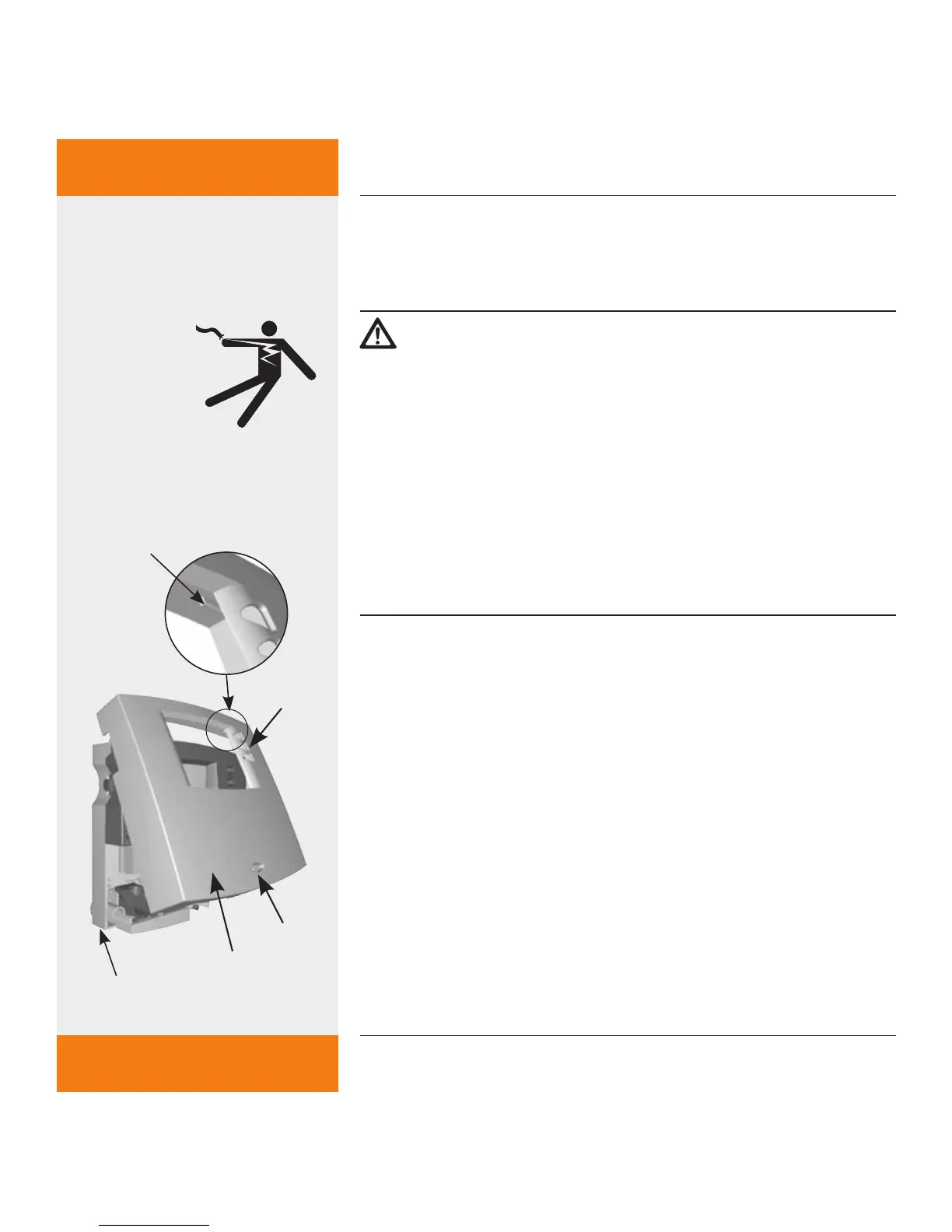

The top of the casing is held in place by two retaining
pegs on the upper edge of the bottom half of the cas-
ing and fastened with a screw.
4.1.1 Opening the ca
sing
Loosen the screw and remove the upper casing in
an upwards direction.
4.1.2 Closing the ca
sing
Place the upper casing over the lower casing at an
angle. Insert the hinge grooves into the retaining
pegs of the lower casing.
Pivot the upper casing down and feed the operat-
ing buttons through the matching holes.
Fasten the casing tightly with the screw.
Hinge grooves
Operating
buttons
Upper casing
Lower casing
Screw
