Page 4 of 18
75745 Rev C
®
HEALTH

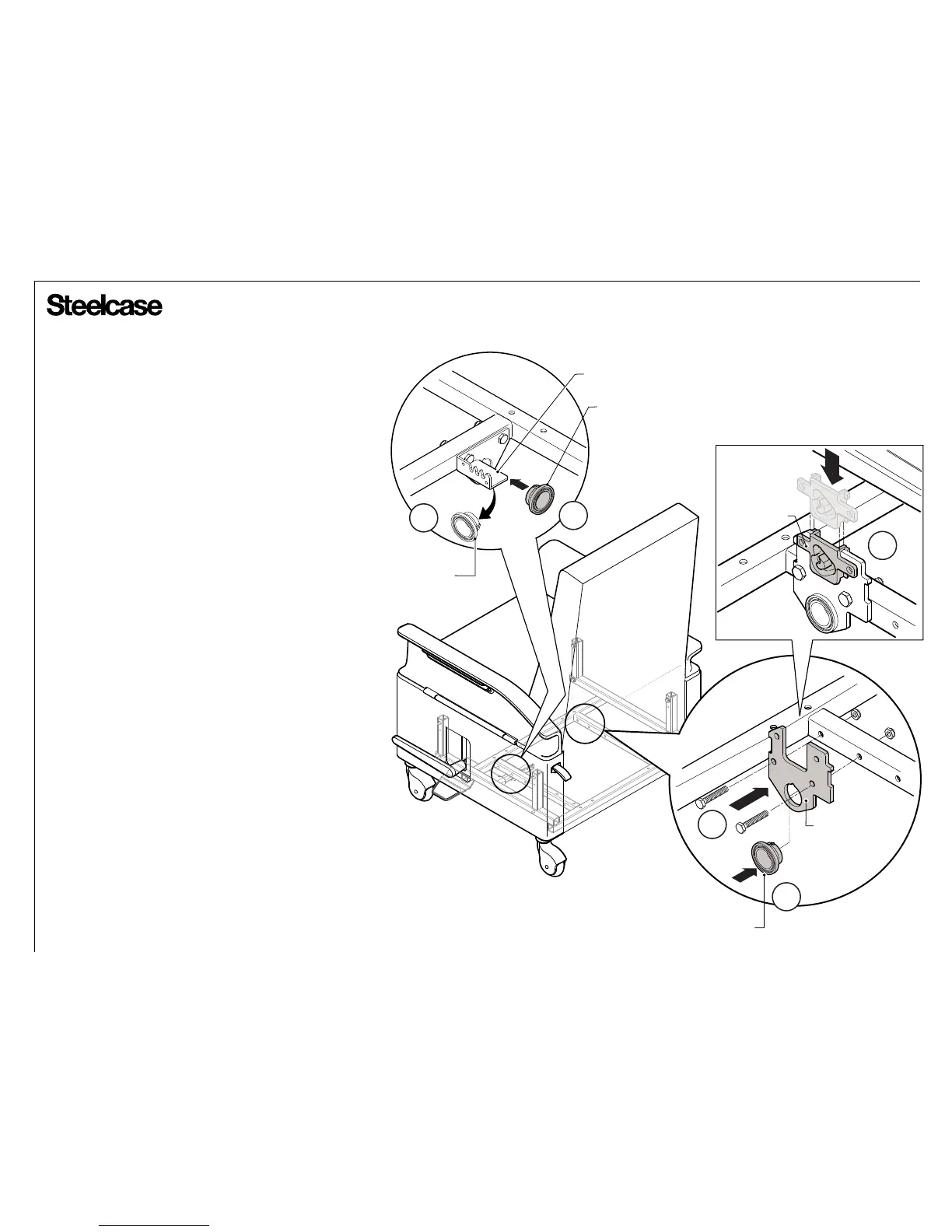

8. Remove and discard the old bushing from the cable
anchor bracket (8a).
Install the supplied bushing into the
cable anchor bracket
as shown, making sure it is fully
seated in the bracket (8b).
9. Install the replacement mechanism mounting plate and
secure it to the frame using the 1/4-20 bolts and nuts removed
from the old mechanism in step 7.
10.
Install the supplied bushing into the mounting plate
as
shown, making sure it is fully seated.
11. Slide the right hand lock guide down onto the top of
the mounting plate until it rests securely in the top cutout
in the plate.
NOTE: Some detail
removed for clarity.
SUPPLIED
BUSHING
REMOVE OLD
BUSHING
RIGHT HAND
LOCK GUIDE
8b
CABLE ANCHOR
BRACKET
SUPPLIED
BUSHING
REPLACEMENT
MECHANISM
MOUNTING
PLATE
8a
11
9
10
To Next Page
