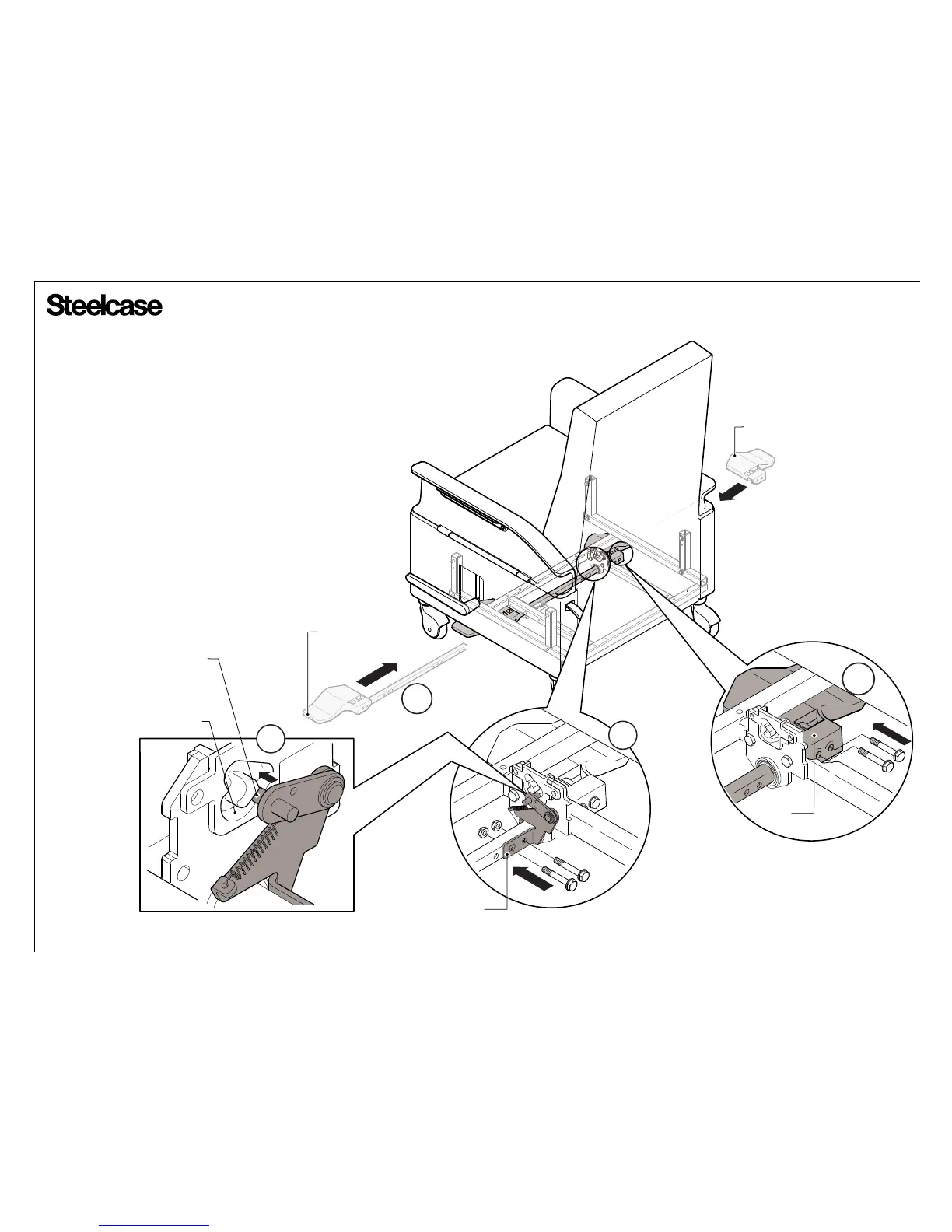

12. Reinstall the left foot pedal and bar assembly (12a). Reinstall
the right foot pedal and secure it with the 1/4-20 bolts removed
in step 6 (12b). Be careful not to overtighten bolts.
13. Align the brake toggle actuator over the mounting holes
in the foot control bar and secure it with the 1/4-20 bolts
removed in step 5.
14. Make sure that the right guide pin on the brake toggle actuator
is engaged in the track of the right hand lock guide.
NOTE: Some detail
removed for clarity.
RIGHT HAND
LOCK GUIDE
TRACK
RIGHT GUIDE PIN
LEFT FOOT PEDAL
AND BAR ASSEMBLY
RIGHT FOOT PEDAL
12a
12b
RIGHT FOOT
PEDAL
13
BRAKE TOGGLE
ACTUATOR
14
