8

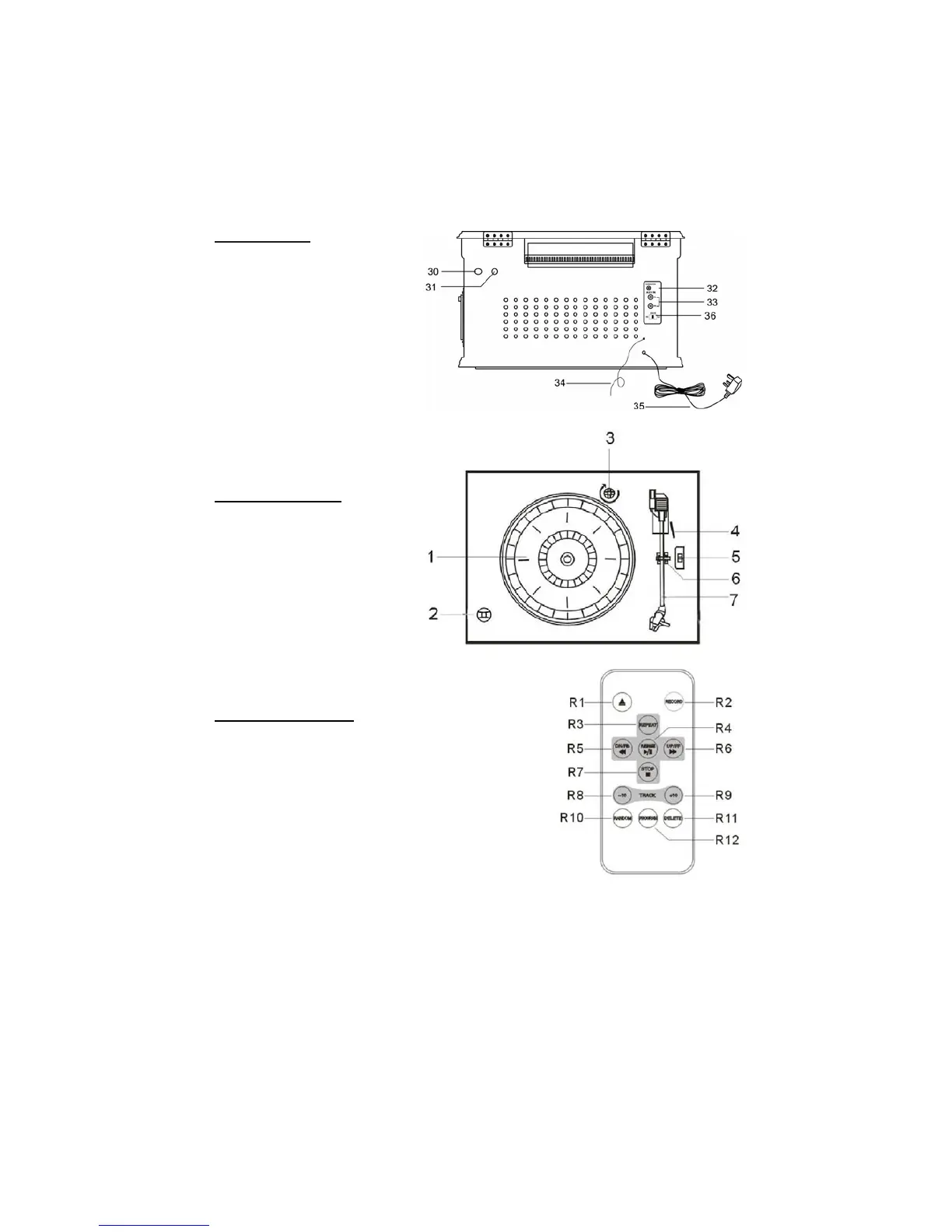

BACK PANEL
30) Tone Arm Return
Adjustment Hole
31) Tone Arm Return
Adjustment Window
32) Subwoofer Jack (6.7mm)
(signal out)
33) AUX IN (9.5mm L + R) Jack
(external signal Input)
34) FM Wire Antenna
35) AC Power Cord
36) GAIN Hi-Lo Switch
RECORD PLAYER
1) Turntable Platter
2) 45rpm Adaptor
3) Transit Screw
4) Cue Lever
5) Speed Selector
(33
1
/
3
, 45 & 78 rpm)
6) Tone Arm Lock
7) Tone Arm with Stylus
REMOTE CONTROL
R1) OPEN/ CLOSE R7) STOP
R2) RECORD R8) TRACK -10
R3) REPEAT R9) TRACK +10
R4) PLAY/PAUSE R10) RANDOM
R5) DN/FB (SKIP REV.) R11) DELETE
R6) UP/FF (SKIP FWD) R12) PROGRAM
Notes:
• The Remote has a magnetic strip on the rear which allows it to be stored
magnetically against the front right hand side corner of the cabinet.
• The Remote Control functions are for CD, USB & SD (MP3) Mode.
• The buttons on the Remote Control have the same functions as the buttons
on the main unit.
