Steinberg CI2 - Connecting to an External Device

18 CI2 Operation Manual
Connecting to an External Device
English
Connecting to an External Device

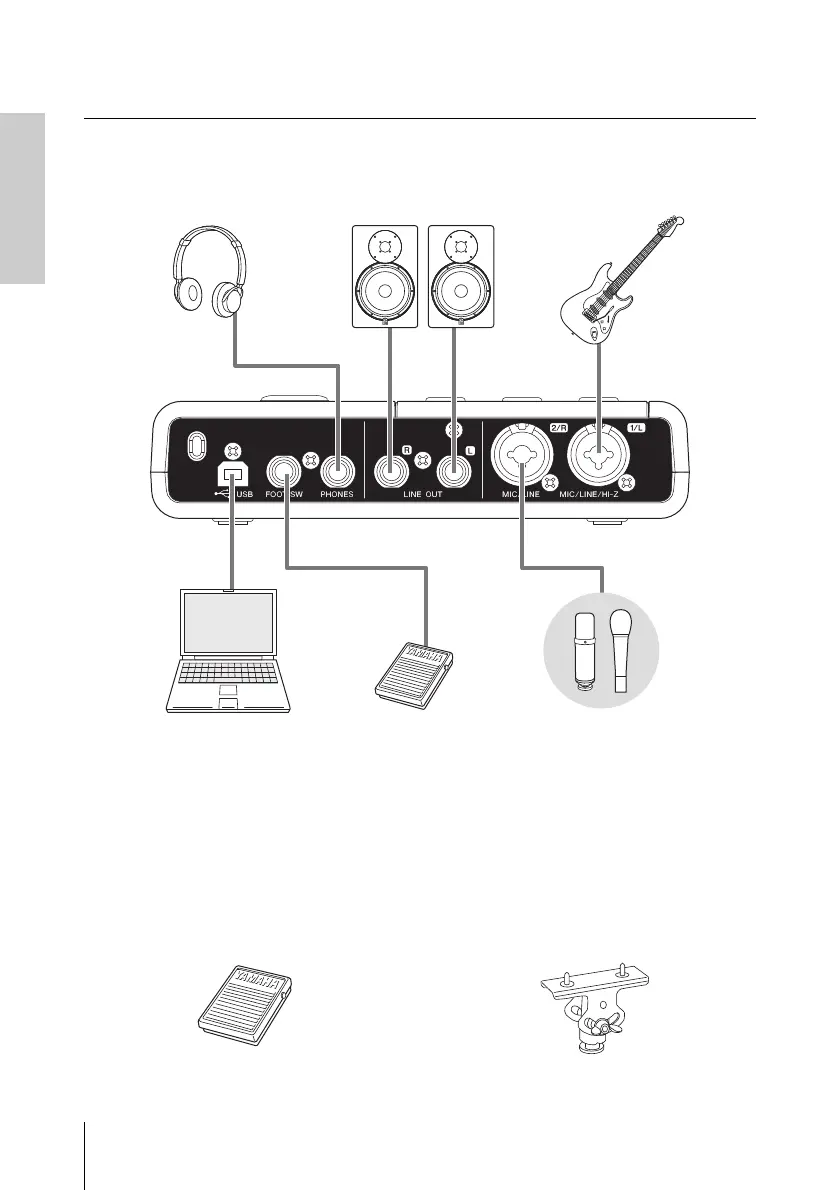

Connection Examples
Options
Foot switch
A Yamaha FC5 foot switch can be connected to
the FOOT SW jack. The connected foot switch
operates the same as the [Action Pad] button.
Microphone stand adaptor
A Yamaha BMS-10A microphone stand adaptor
can be attached to the underside of the CI2.
The CI2 attached with the microphone stand
adaptor can then be used with a conventional
microphone stand.
Headphones
Computer
Powered monitor speakers Electric guitar
FC5 Microphone
FC5
BMS-10A
