stellar labs 10620 - Mast Assembly

9

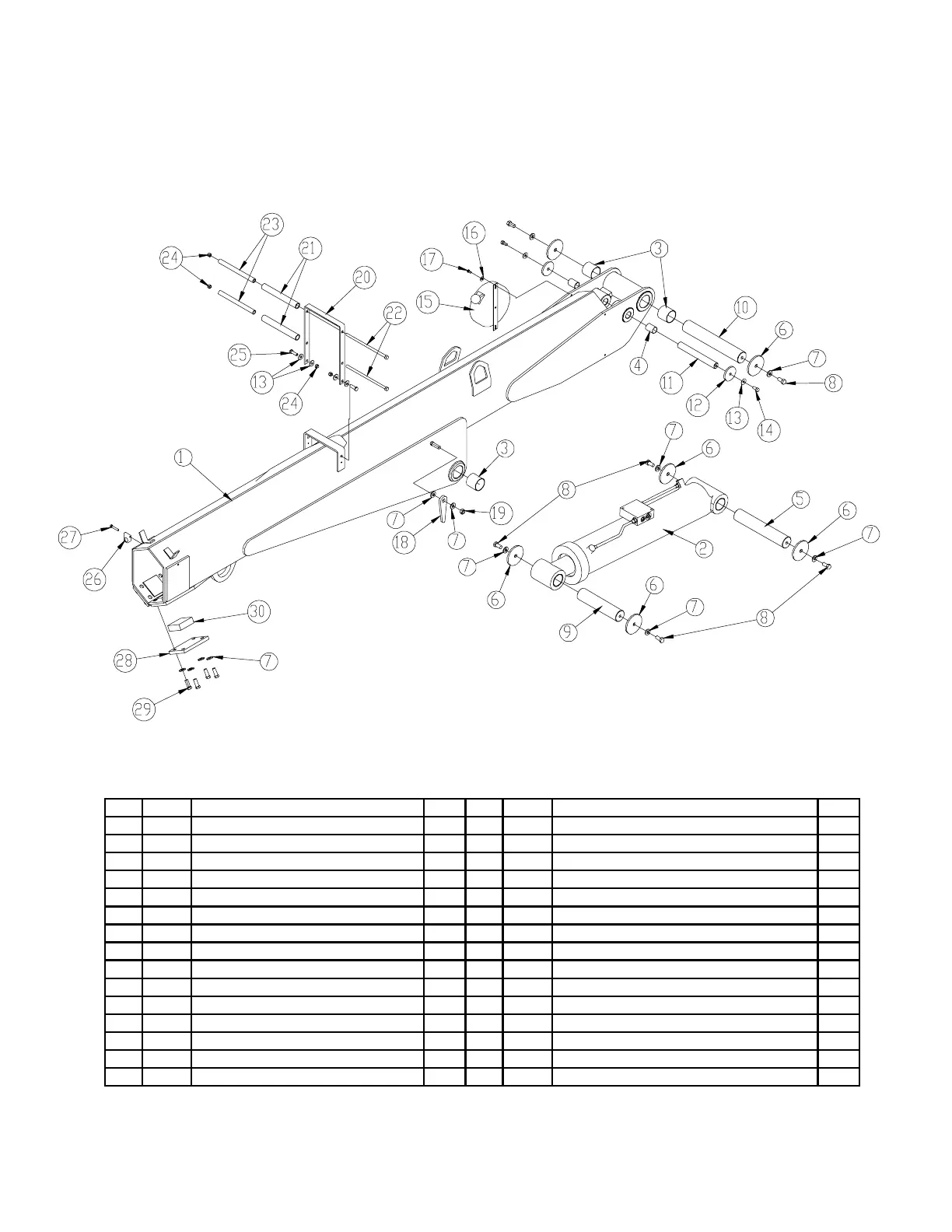

MAIN BOOM ASSEMBLY
P/N 18029
ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY.
1 12884 BOOM INNER 9620 1 16 0340 WASHER 0.25 FLAT 2
2 24144 CYLINDER ASM 9620 INNER 1 17 0478 CAP SCR 0.25-20X0.50 HHGR5 2
3 0066 BUSHING QSI-3235-32 4 18 D1194 PLATE ANGLE INDICATOR 2
4 0068 BUSHING QSI-1618-24 2 19 C6106 NUT 0.50-13 HHGR5 NYLOC 2
5 13363 PIN 2.00X11.19 D&T 1 20 13435 BRKT ROPE GUIDE 9620 1
6 8377 PIN CAP 0.56X3.50X.25 6 21 13038 PIPE 0.75X7.75 PVC 2
7 D0790 WASHER 0.50 FLAT GR8 18 22 12168 CAP SCR 0.38-16X9.00 HHGR5 2
8 10172 CAP SCR 0.50-13X1.00 HHGR8 ZY 6 23 11669 SPACER ROPE GUIDE 6620 2
9 9711 PIN 2.00X8.88 D&T 1 24 0347 NUT 0.38-16 HH NYLOC 4
10 13364 PIN 2.00X12.69 D&T 1 25 0335 CAP SCR 0.38-16X1.25 HHGR5 2
11 9712 PIN 1.00X8.38 D&T 1 26 0337 HOSE CLAMP LN 4190 PP 1
12 7403 PIN CAP 0.44X2.50X.252 2 27 0220 CAP SCR 0.25-20 X 1.50 HHGR5 1
13 C6353 WASHER 0.38 FLAT GR8 6 28 13398 PLATE WEAR PAD SUPPORT 9620 2
14 9843 CAP SCR 0.38-16X0.75 HHGR8 2 29 10666 CAP SCR 0.50-13X1.25 HHGR8 8
15 11544 CORD REEL 6620 1 30 13395 WEAR PAD 3.00X3.00X1.00 NYLATRON 2
