stellar labs 10620 - Cylinder Assembly

11

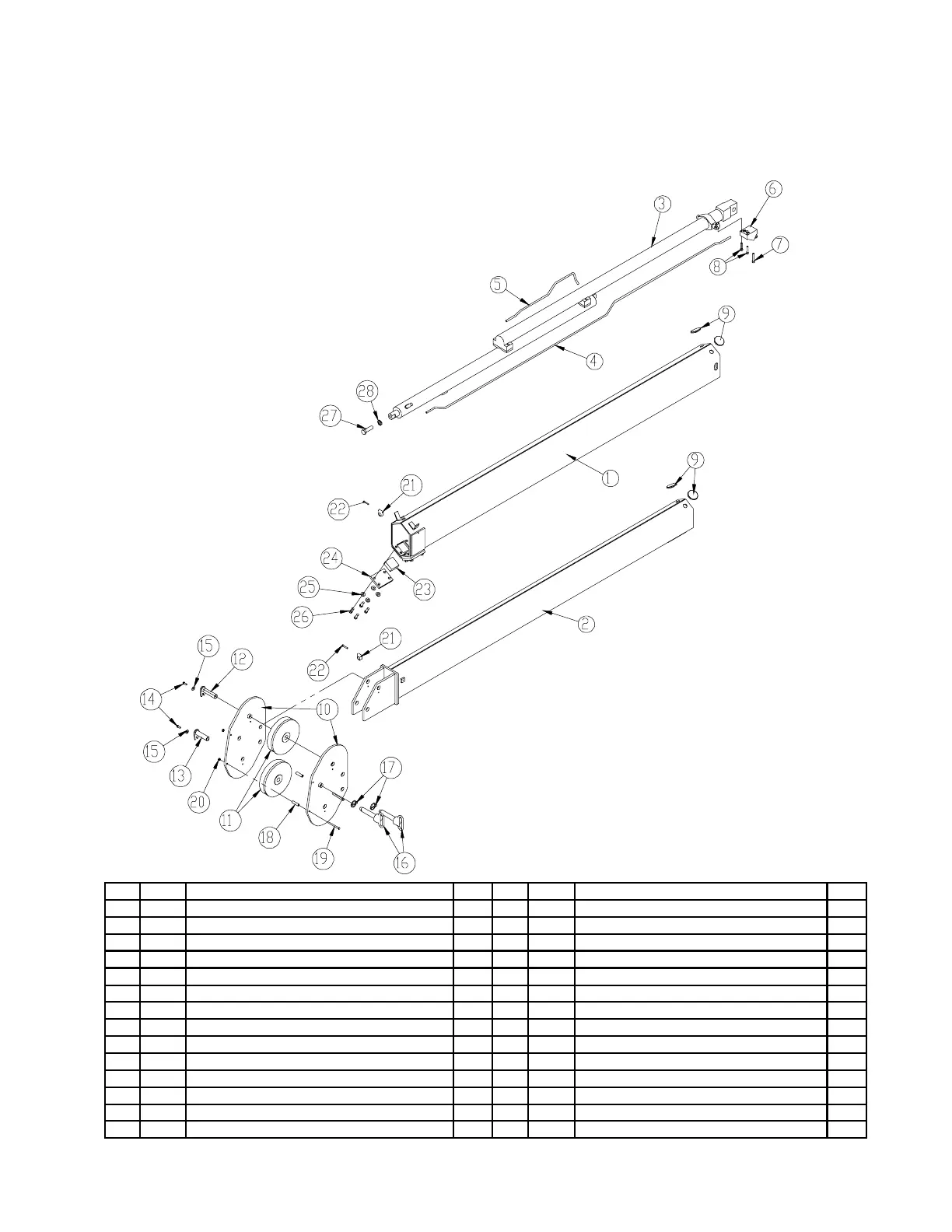

EXTENSION BOOM ASSEMBLY
P/N 18030
ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY.
1 12885 EXT BOOM 9620 1ST 1 15 0343 WASHER 0.31 FLAT 2
2 15890 EXT BOOM 10620 2ND 1 16 12824 PIN HITCH 1.00X4.50 2
3 13980 CYLINDER EXT 9620 2 STAGE 2.5/2.5 1 17 5753 PIN 0.19X1.56 LYNCH 2
4 14443 TUBE ASM 0.38X102.25 EXT CYL 6620 1 18 11936 SPACER BOOM TIP 3820 2
5 14442 TUBE ASM 0.38X23.25 EXT CYL 6620 1 19 0490 CAP SCR 0.31-18X3.50 HHGR5 2
6 14115 MANIFOLD ASM 6620 EXT CBBD-LJN-XVN 1 20 0342 NUT 0.31-18 HH NYLOC 2
7 14601 CAP SCR 0.38-16X2.25 SH ZC 1 21 0337 HOSE CLAMP LN 4190 PP 2
8 11882 CAP SCR 0.38-16X1.75 SH ZC 2 22 0220 CAP SCR 0.25-20 X 1.50 HHGR5 2
9 9991 WEAR PAD 0.25X2.00 RND NYLATRON 4 23 13396 WEAR PAD 2.50X2.50X1.00 NYLATRON 2
10 15998 PLATE SHEAVE MOUNTING 10620 2 24 13397 PLATE 1ST EXT 9620 WEAR PAD 2
11 15889 SHEAVE 10620 9.25 DIA .44R/1.94 THK 2 25 D0790 WASHER 0.50 FLAT GR8 8
12 13400 PIN TEAR DROP 1.00X4.38 1 26 10666 CAP SCR 0.50-13X1.25 HHGR8 8
13 13399 PIN TEAR DROP 1.00X3.81 1 27 4974 CAP SCR 0.75-10X2.50 HHGR8 ZY 1
14 0420 CAP SCR 0.31-18X0.75 HHGR5 2 28 C6219 WASHER 0.75 SAE FLAT YELLOW GR8 1
