stellar labs 10620 - Cable and Hook Assembly

13

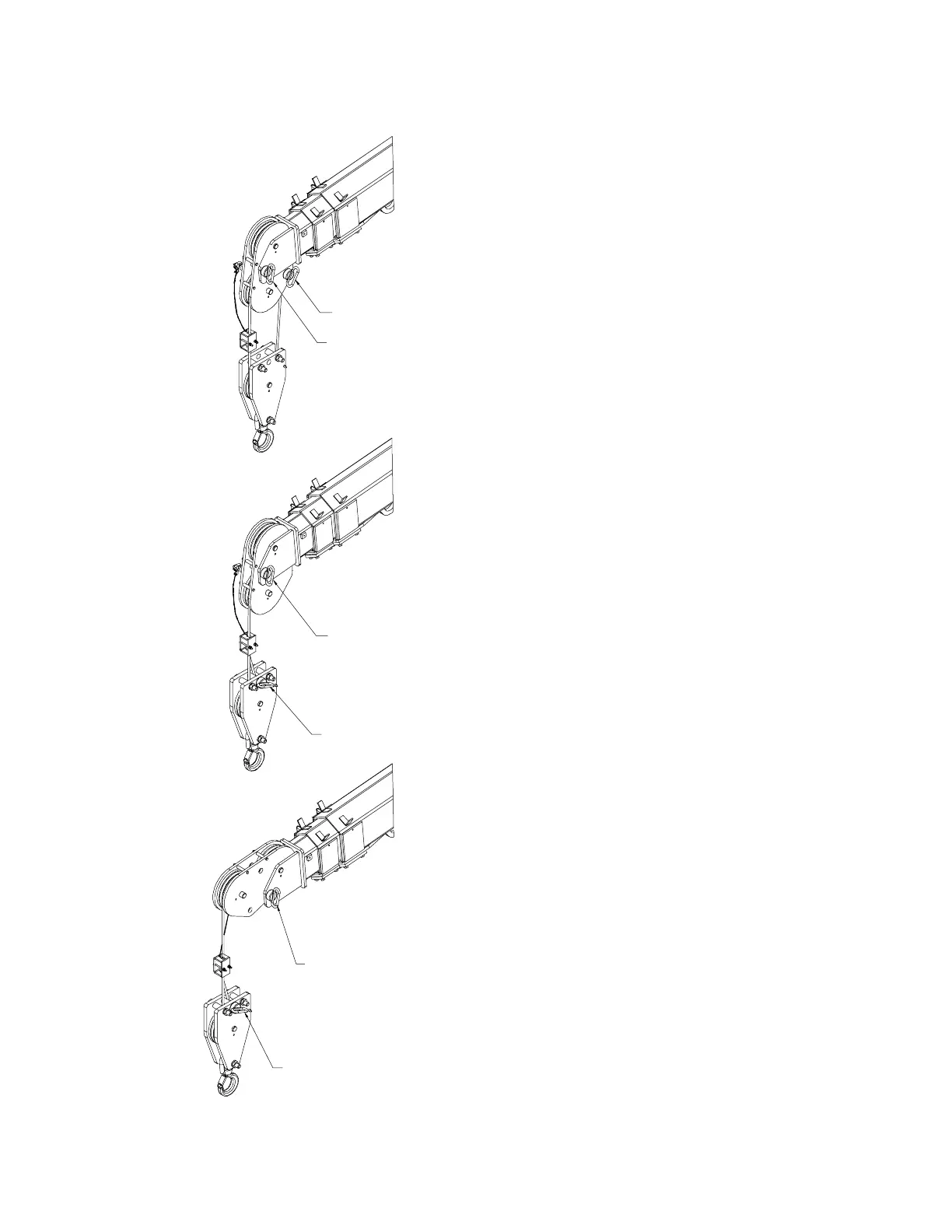

WIRE ROPE / SHEAVE
CONFIGURATIONS
SINGLE PART LINE
SHEAVE FLIPPED DOWN
(MAXIMUM CAPACITY 4300#)
1.) REMOVE PIN A FROM BOOM TIP
2.) ROUTE WIRE ROPE THROUGH SNATC
H
BLOCK
3.) PIN WIRE ROPE TO SNATCH BLOCK
AS SHOWN WITH PIN "A"
STANDARD 2 PART LINE
SHEAVE FLIPPED DOWN
CAPACITIES AS SHOWN ON
LOAD CHART
SINGLE PART LINE
SHEAVE FLIPPED UP
(MAXIMUM CAPACITY 4300#)
1.) REMOVE PIN B
2.) FLIP SHEAVE
3.) INSERT PIN B WITH
SHEAVE IN UP POSITION
PIN "B"
PIN "A"
PIN "B"
PIN "A"
PIN "B"
PIN "A"
