Stellar® Light Duty Crane Owner’s Manual

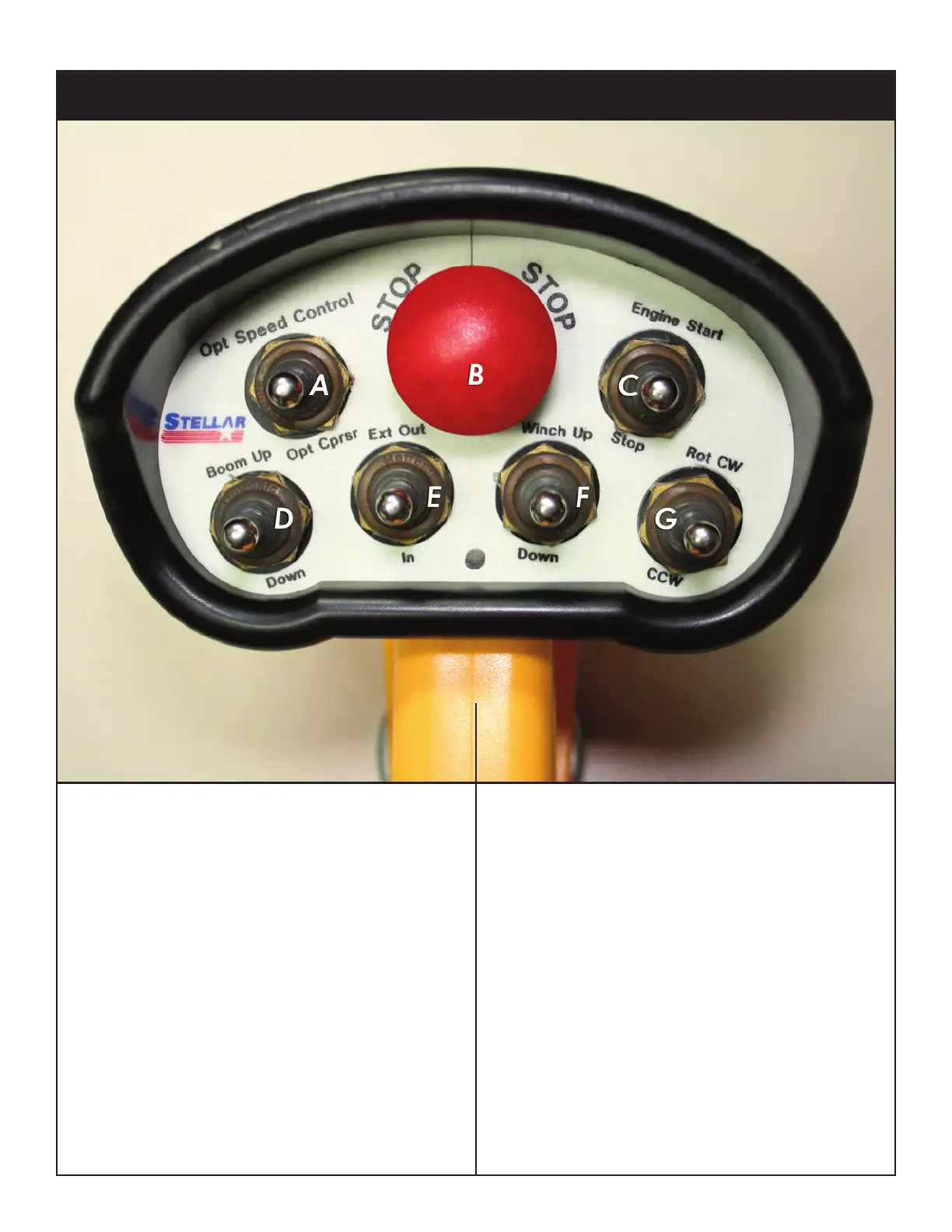

Radio Remote Control Functions
A. Optional Speed Control/Compressor
Start/Stop Toggle: Push up to start or stop
the optional speed control. Push down to
start or stop the compressor.
B. E-Stop Button: Push to immediately stop
all crane functionality. Note: The E-stop
button is not intended to be an on/off
switch. This is also the first item to check
if the crane is not responding to toggle
and trigger activation. Make sure the
red E-Stop button is in the up or
disengaged position.
C. Engine Start/Stop Toggle: Push to start or
stop the engine.
D. Boom Up/Down Toggle: Push up to raise
the boom. Push down to lower the
boom.
E. Extension In/Out Toggle: Push up to
extend the extension. Push down to
retract the extension.
F. Winch Up/Down Toggle: Push up to raise
the winch. Push down to lower the
winch.
G. Rotate Clockwise/Counterclockwise:
Push up to rotate the boom clockwise.
Push down to rotate the boom
counterclockwise.
