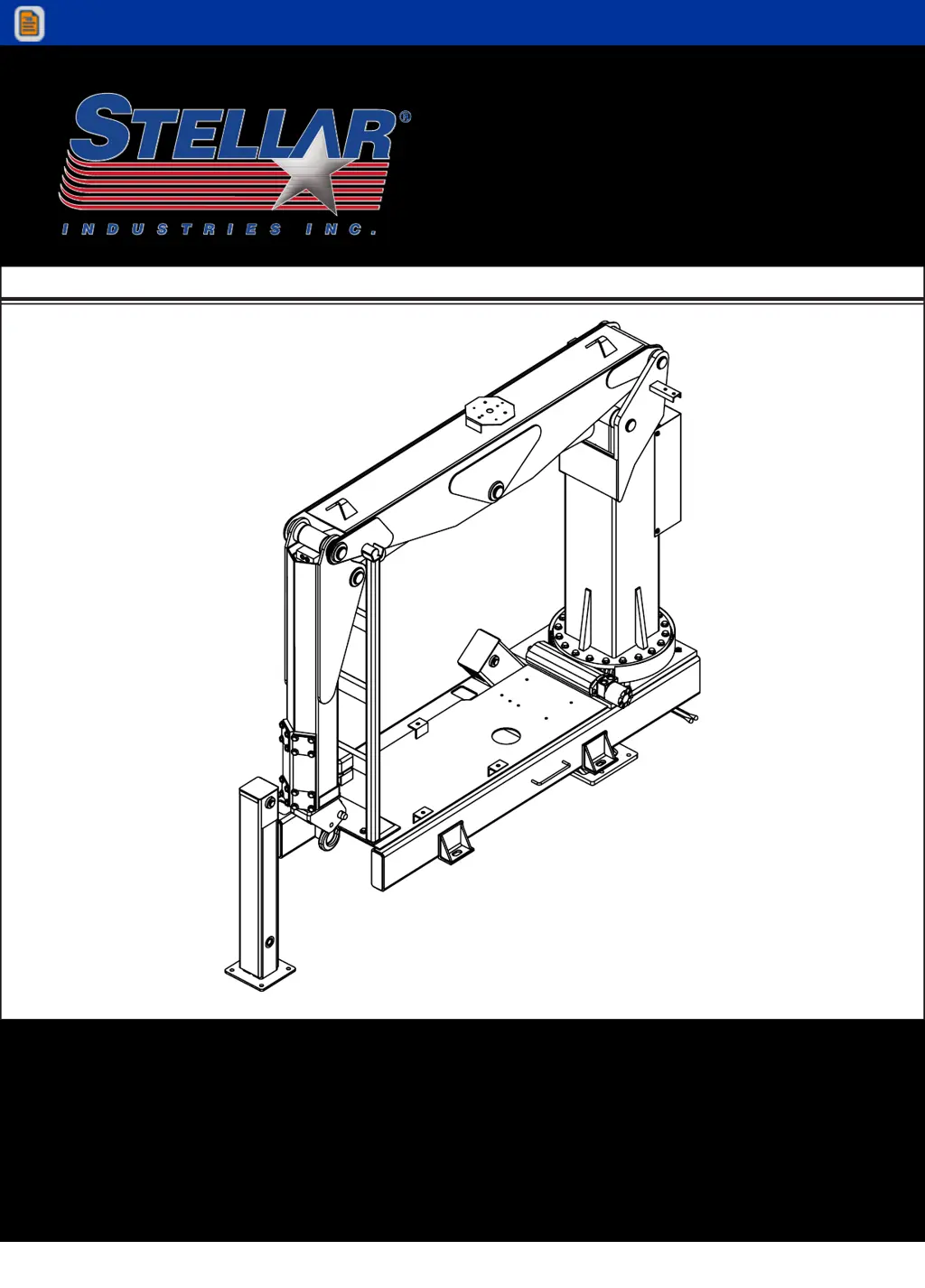

stellar labs 6000 - User Manual

Questions and Answers

D
Dawn WoodAug 19, 2025
How to troubleshoot stellar labs 6000 crane that operates manually but not electrically?
- S
  Scott BeckAug 20, 2025
  If your Stellar Labs Construction Equipment crane will operate manually but not electrically, several things should be checked. First, ensure that 12V power is reaching the radio receiver. Next, verify that the parking brake is engaged and that the parking brake switch is functioning correctly by performing a continuity test; replace the switch if defective. Also, check that the “Power” LED is illuminated outside the receiver door cover and that the green LED on the receiver door is lit green. Finally, when the battery voltage is adequate, the power LED light on the transmitter should be solid.
J
John WadeAug 21, 2025
What to do if my Stellar Labs Construction Equipment crane will not operate?
- T
  Tony NicholsonAug 22, 2025
  If your Stellar Labs Construction Equipment crane is not operating, verify the following: Ensure the parking brake is engaged, the PTO is engaged, and that 12V power is reaching the radio receiver. Also, make sure the transmitter batteries are fully charged and that the hydraulic pump is operating at its rated flow or GPMs.
M
Melinda ThomasAug 25, 2025
Why is my stellar labs 6000 crane operating slowly?
- E
  Erin HernandezAug 25, 2025
  If you're experiencing slow operation with your Stellar Labs Construction Equipment crane, there are a few things to inspect. Start by confirming that the crane is receiving the recommended GPMs to operate. Then, check the hydraulic fluid level in the reservoir and ensure the valve bank flow valve is functioning correctly. Lastly, verify that the proportional valve is receiving 12V power when operating a function.
V
Veronica GarciaAug 26, 2025
What causes Stellar Labs Construction Equipment outriggers to fail to retract?
- C
  Candace BurchAug 26, 2025
  If you find that the outriggers on your Stellar Labs Construction Equipment fail to retract, consider these potential causes. If the outriggers retract using the manual function, it likely indicates an electrical problem, so check the continuity. Also, defective cylinder seals or a holding valve could be the issue, requiring replacement of the seals or valve. Finally, inspect the hydraulic lines for any restrictions or ruptures, and replace them if necessary.
R
Roy BrownAug 27, 2025
Why do stellar labs 6000 Construction Equipment controls fail to respond with the control box?
- C
  Caitlyn SchultzAug 28, 2025
  If your Stellar Labs Construction Equipment crane's controls fail to respond with the control box, check the following: Ensure the batteries in the wireless handle are charged or replace them. Verify that the handle's on/off button is turned on. Confirm that the manual/remote switch is in the remote position.
P
pmendozaAug 30, 2025
What causes vibrations and jerking in hydraulic cylinder during the first maneuvers of stellar labs 6000 Construction Equipment?
- S
  Steven MillerAug 30, 2025
  If you observe vibrations and jerking in the hydraulic cylinder of your Stellar Labs Construction Equipment during initial maneuvers, it could be due to the hydraulic oil temperature being too low. To resolve this, perform maneuvers without loads for several minutes to warm up the oil. Another potential cause is a lack of oil in the reservoir, in which case you should add hydraulic oil.
K
Katherine GrahamSep 1, 2025
What causes vibrations with every function when oil is hot in stellar labs 6000?
- B
  Brooke ShortSep 1, 2025
  If you're experiencing vibrations with every function when the oil is hot in your Stellar Labs Construction Equipment, it could be due to a lack of oil in the reservoir. Add hydraulic oil to the tank to resolve this. Another possible cause is air in the hydraulic system. Operate the control carrying the cylinders to stroke end several times in both directions to address this issue.
A
Adam DrakeSep 2, 2025
What to do if the hydraulic extension is not extending on my stellar labs 6000 Construction Equipment crane?
- K
  Kevin WilliamsonSep 2, 2025
  If your Stellar Labs Construction Equipment crane's hydraulic extension is not extending, several factors could be the cause. Start by lubricating the wear pads, as bad lubrication can hinder extension. If lubrication doesn't solve the issue, the wear pads may be worn and require replacement. Additionally, the sequence valve on the extension cylinder might need adjustment, so check to see if there is 12V power going to the extension function.
J
John BushSep 5, 2025
Why is stellar labs 6000 crane rotation not regular?
- T
  Troy GordonSep 5, 2025
  If your Stellar Labs Construction Equipment crane rotation is not regular, consider these possible causes: inadequate grease, which can be solved by greasing the gear bearing; the truck not being level, which requires leveling the truck; a worn rotation motor, which necessitates replacing the rotation motor; or worn gear bearings, which means the gear should be replaced.
A
alejandro08Sep 6, 2025
Why are all Stellar Labs Construction Equipment crane movements slow, loaded and unloaded?
- D
  Diana SanchezSep 6, 2025
  If your Stellar Labs Construction Equipment crane movements are slow, whether loaded or unloaded, there are several potential causes. The suction hose from the oil tank may be crushed or obstructed, requiring replacement or cleaning. A malfunctioning dump valve could also be the issue, which can be detected by manually overriding the system. Additionally, the pump might be drawing in air, so tighten the suction hose connections.
