Installation Overview
27Installation 27
WARNING!
The use of this crane on a body not
capable of handling the loads imposed on
it may result in serious injury or death.
Notice:
PTO and Pump installation instructions are provided
by the corresponding manufacturers. For more
information on which PTO and Pump fit your
application, please contact your local Stellar
Distributor or Stellar Customer Service.
Notice: Read this Page Before Installation of the Crane

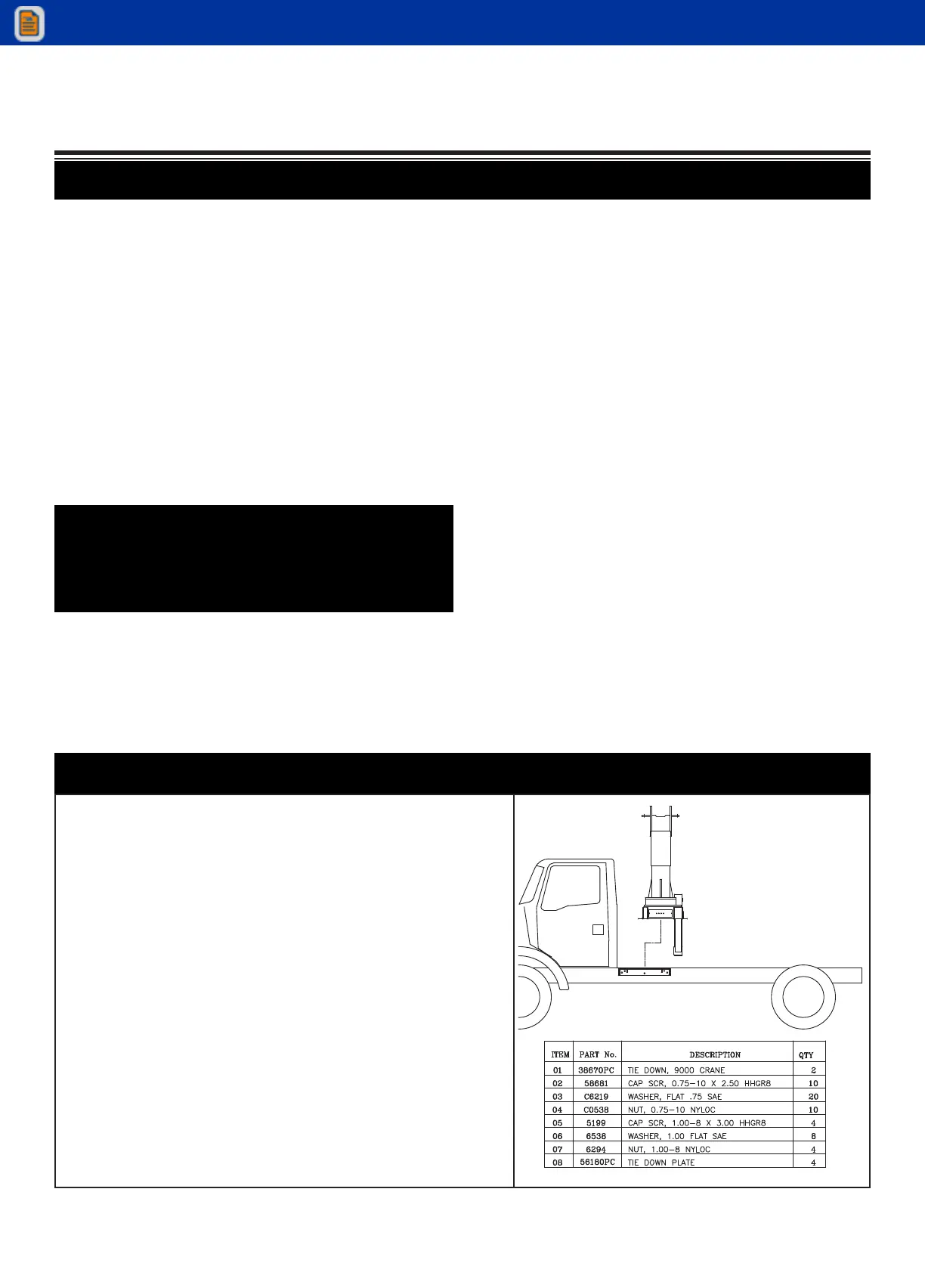

Installation Guidelines (For more detail, please contact
Stellar Customer Service)
1. Locate mounting brackets and clamp to chassis1” (min)
from rear of cab (or desired location).
2. Set crane on chassis and check for interferences.
3. Using mounting bracket as a guide, mark holes to be
drilled into truck frame.
4. Remove mounting brackets and drill holes.
5. Mount brackets using 3/4” Grade 8 bolts, flast washers,
and nyloc nuts.
6. Lower crane onto mounting brackets.
7. Mount crane using 1” Grade 8 bolt, flat washers, and
nyloc nuts.
8. Connect pressure and return lines per hydraulic kit.
9. Connect (+12V) Power and ground wires inside crane box.
10. Check reservoir for oil and fill if necessary.
11. Operate crane several cycles.
Installation Notice
According to Federal Law (49 cfr part 571), each
final-stage manufacturer shall complete the vehicle
in such a manner that it conforms to the standards in
effect on the date of manufacture of the incomplete
vehicle, the date of final completion, or a date
between those two dates. This requirement shall,
however, be superseded by any conflicting provisions
of a standard that applies by its terms to vehicles
manufactured in two or more stages.
Therefore, the installer of Stellar cranes and bodies is
considered one of the manufacturers of the vehicle.
As such a manufacturer, the installer is responsible for
compliance with all applicable federal and state
regulations. They are required to certify that the
vehicle is in compliance with the Federal Motor
Vehicle Safety Standards and other regulations issued
under the National Traffic and Motor Vehicle Safety
Act.
Please reference the Code of Federal Regulations,
title 49 - Transportation, Volume 5 (400-999), for further
information, or visit
http://www.gpoaccess.gov/nara/index.html for the
full text of Code of Federal Regulations.
General Installation
This chapter is designed to serve as a general guide
for the installation of a Stellar 6000 Articulating Crane
on a Stellar Service Body. Each installation is
considered unique so certain portions of this chapter
may or may not apply to your direct application. If a
question should arise during the installation process,
please contact Stellar Customer Service at (800) 321
3741.
This crane is designed for use with a Stellar Service
Body installed on a vehicle that meets the minimum
chassis requirements of the crane. Check with Stellar
Industries before installing this crane on a body other
than a Stellar Service Body.
