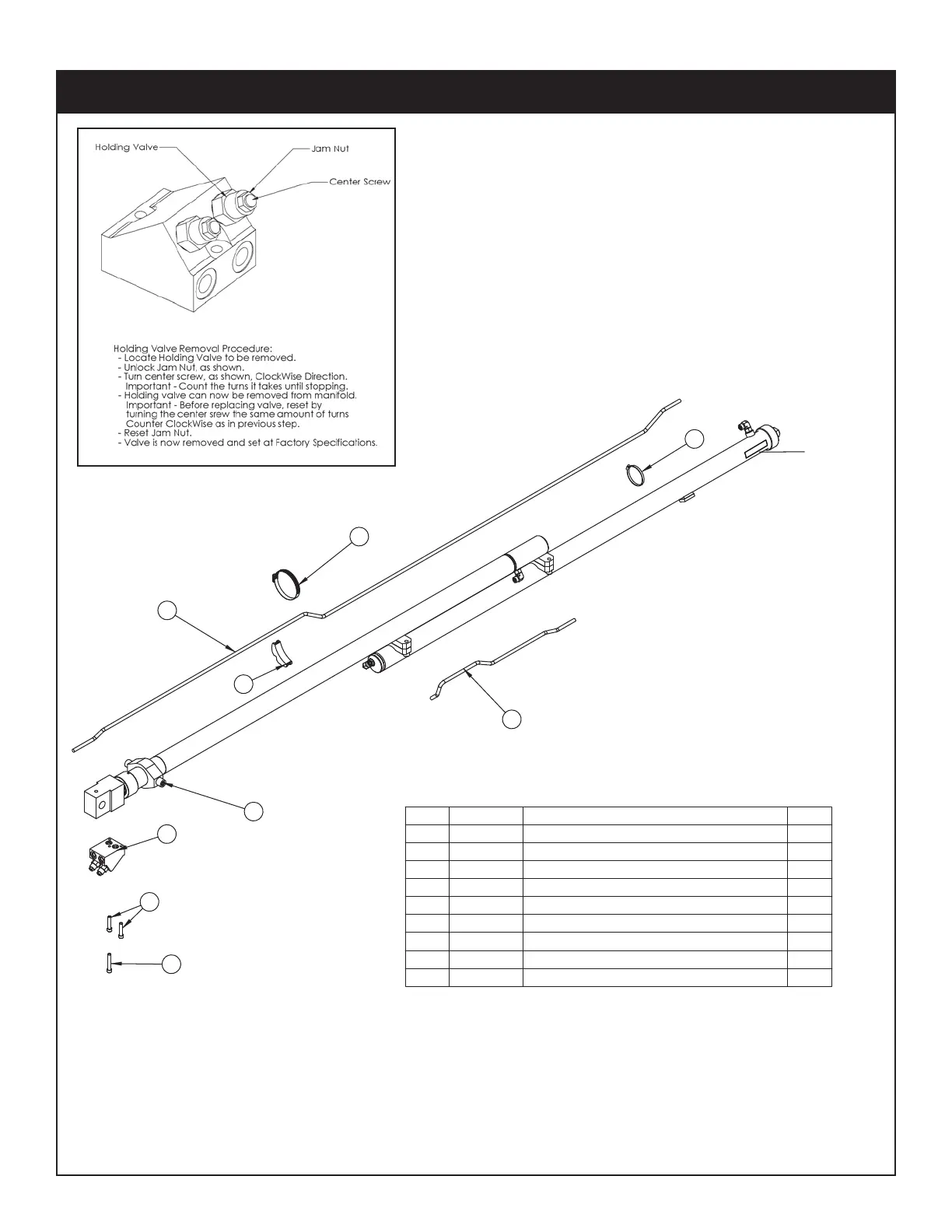

stellar labs Model 7621 - Extension Cylinder Assembly - PN 49316

Assembly Drawings 
.YTQNOITPIRCSEDTRAPMETI
137548 CYLINDER EXT 2 STAGE 2.0/2.0 PTD 60 1
214115 MANIFOLD ASM 6620 EXT CBBD-LJN-XVN 1
311882CAP SCR 0.38-16X1.75 SH ZC 2
414601 CAP SCR 0.38-16X2.25 SH ZC 1
514442 TUBE ASM 0.38X23.25 EXT CYL 6620 1
614443 TUBE ASM 0.38X102.25 EXT CYL 6620 1
724729 HOSE CLAMP #52 3.00 - 3.75 1
818701 CLAMP PORT TUBE ZR518 1
1 P #36 WRM GEARMALC ESOHD06559
8
2
4
1
5
6
7
3
9
PN 49316
Cylinder
Serial Tag
Location
Extension Cylinder Uses:
Upper Seal Kit - PN 54778
Lower Seal Kit - PN 20310
Extension Cylinder Assembly - PN 49316
