BRAKE LEVER 650/800/850 GUEPARD
85
●
Make sure that the brakes are not “soft”. In
case of air presence, bleed the system.
The braking mechanism components
replacement requires professional knowledge.
This work should be performed by the repair
workshop specialists.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

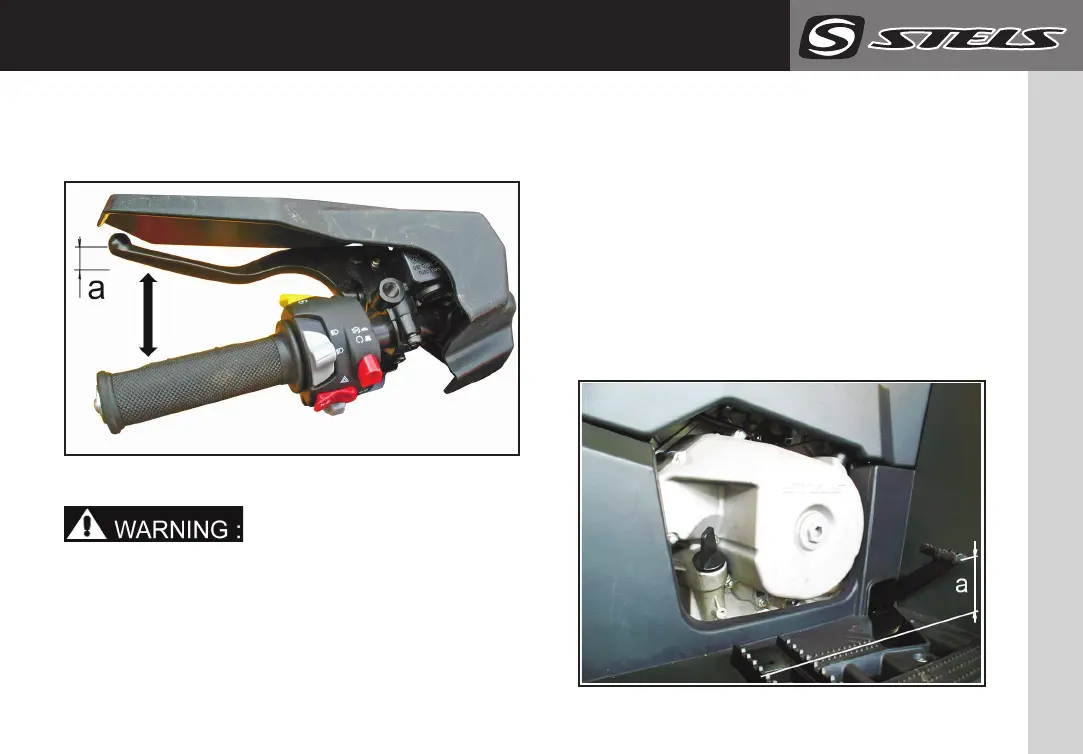

Brake pedal height check
The brake pedal upper part should be 72 mm
above the foot step upper part. If the height does
not comply with this value, adjust it.
а. Distance between the foot step upper
part and the brake pedal.
Brake lever free stroke
The brake lever free stroke should be 0 mm when
pushing the brake lever.
а. Brake lever free stroke.
____________________________
Driving the vehicle category T3b with the brake
misadjustment may impair braking, which may cause
an accident.
Prior to operating the vehicle:
● Make sure that the brake operates smoothly
and the brake lever has proper free stroke.
● Make sure that the brakes do not “drag”
