USA and Canada 800.683.2378, International 904.641.1666 Econ FP
Flow switch 10%
Keypad locKed
+
+
+
+
PROGRAM PUMP SETTINGS
FLOW SWITCH (dry contact signal)
1. Calculate the Pump Speed Percentage Setting.
Metering Pump Output Requirement (gpd) x 100
= Pump Speed Percentage Setting
Metering Pump Maximum Output (gpd)
2. Program the Pump Operating Mode and the Pump Speed Percentage.
Unlock the Keypad
Press and simultaneously and hold for 5 seconds to unlock the keypad.
Pump Operating Mode
First, press and continue to hold , then press or to scroll through
the modes of operation. When the display shows FLOW SWITCH, release both buttons to
select. The operating mode is now set.
Pump Speed Percentage
The pump speed can be programmed from 10% to 100% in 1% increments. First,
press and continue to hold , then press or to adjust the speed
percentage determined in #1. When the display shows the desired percent, release
both buttons to select. The percentage is now set.
Flow switch 10%
MODE
%



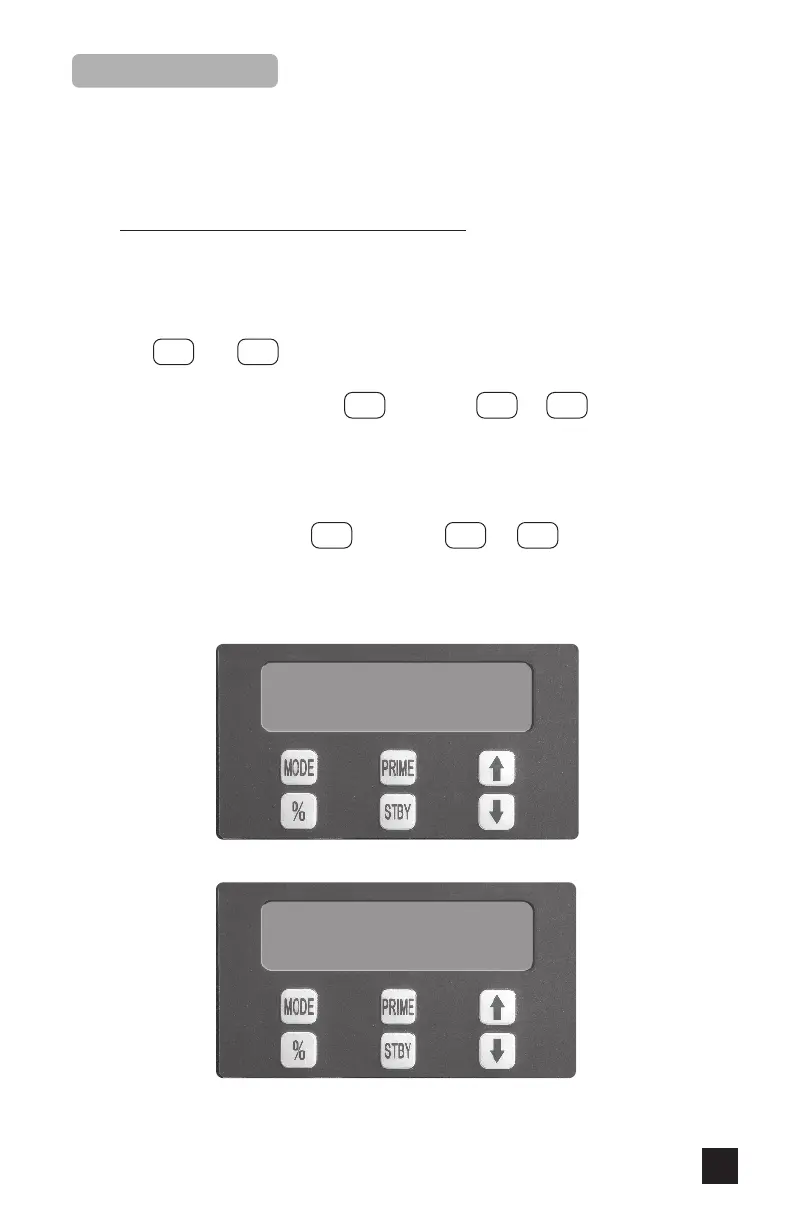

Example of control panel set for 10% in Flow switch mode.
MODE
%


Example of control panel with keypad locked.
