11 List of spare parts
© F. Stephan GmbH SA-103-0109V1.3-HAO-GB 45
11.7 Flowmeter tube

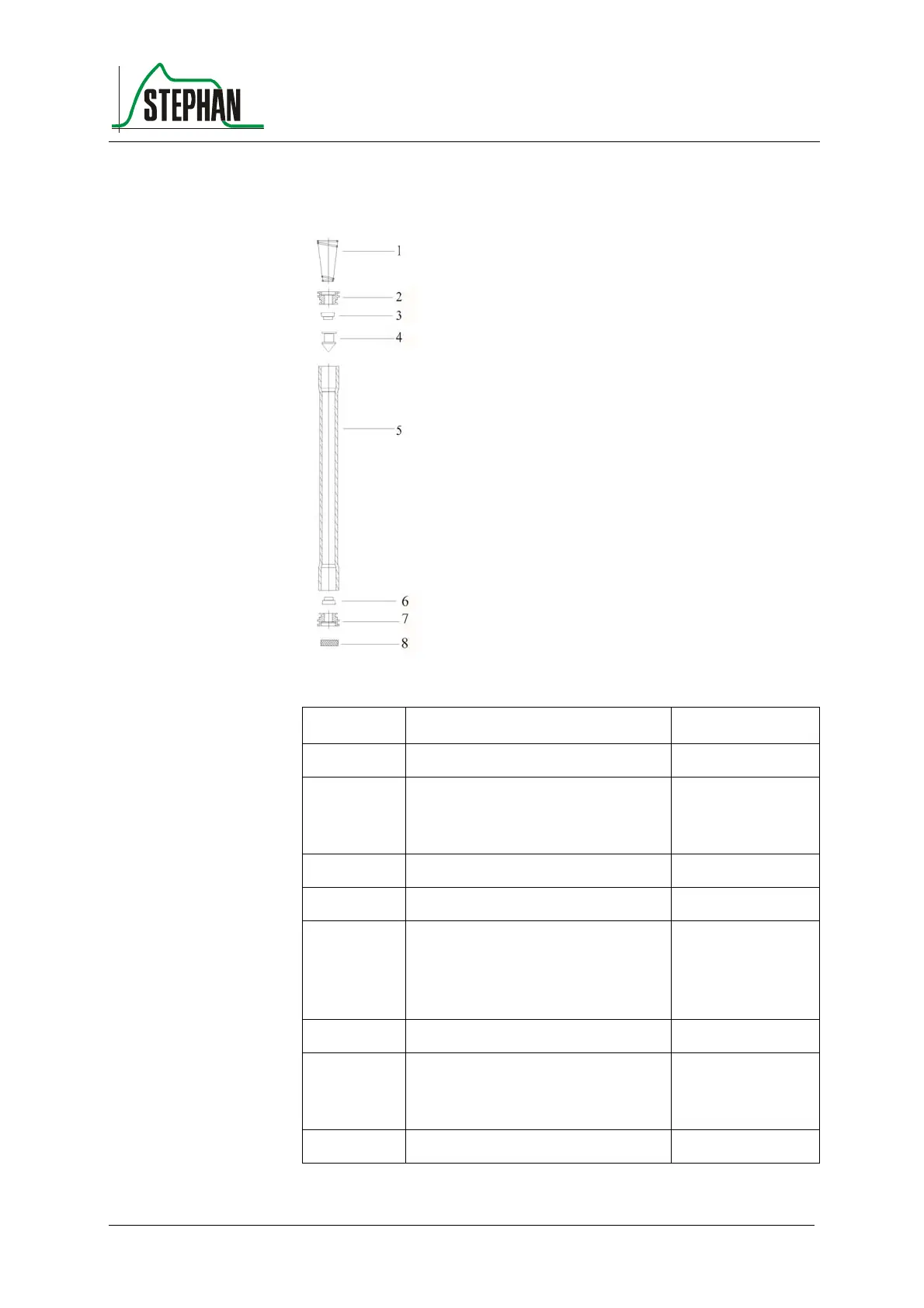

Fig. 20: spare parts flowmeter tube
Item Designation Article No.
1 Conical compression spring 1 920 40 004
2 Packing disc with
O-ring 5,28 x 1,78
and O-ring 12,42 x 1,78
1 150 42 021
1 950 60 002
1 950 60 008
3 End plug
4 Float 1 950 60 008
5 Flowmeter tube 0,1 to 2 l/min O
2
2 to 12 l/min O
2
0,2 to 12 l/min AIR
0,2 to 12 l/min N
2
O
1 150 40 013
1 150 40 007
1 150 40 009
1 150 40 008
6 End plug
7 Packing disc with
O-ring 5,28 x 1,78
and O-ring 12,42 x 1,78
1 150 42 021
1 950 60 002
1 950 60 008
8 Filter for flowmeter tube 1 924 60 003
Tab. 13: spare parts flowmeter tube
