11 List of spare parts
48 SA-103-0109V1.3-HAO-GB © F. Stephan GmbH
11.9 Instruction Flowmeter tube

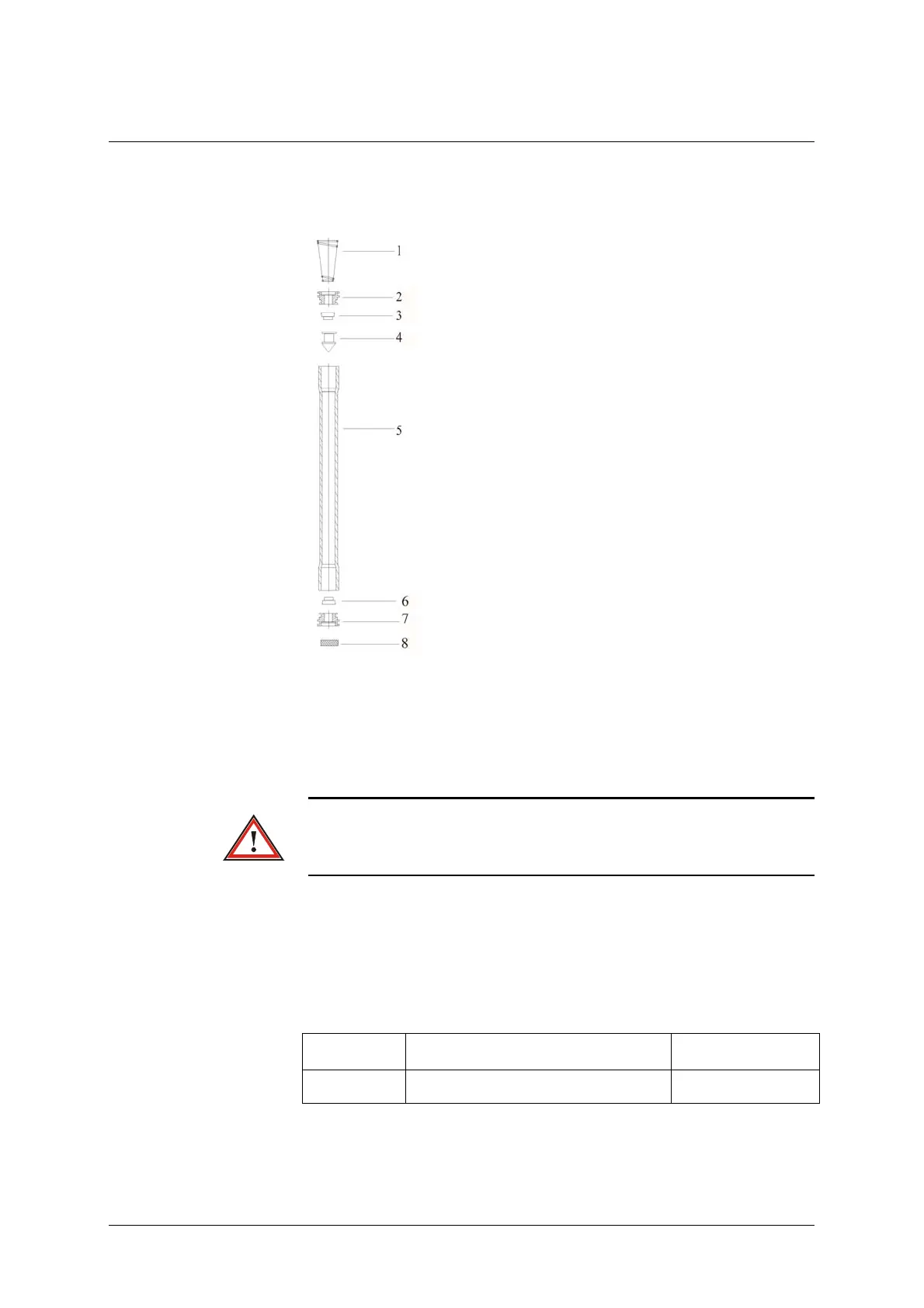

Fig. 24: spare parts flowmeter tube
After removing the packing sets (2) and (7),the end plugs (3) and (6) can
be pulled out of the flowmeter tube with the help of a pair of pincers and
the float can be taken out.
The floats, together with the corresponding flowmeter tubes, form a
calibrated system, so that an interchanging must be avoided by all means.
Now the flowmeter tube can be rinsed first with soap suds and then with
clear water.The completely dry tube can be re-installed. After the
plexiglass hood has also been cleaned, the cover of the flowmeter tube
can be screwed up again.
Item Designation Article No.
8 Filter for flowmeter tube 1 924 60 003
Tab. 16: spare parts flowmeter tube
Item 6 must be exchanged on occasion of the semi-annual servicing
Attention
