Stephan Artec - Spindle

11 List of spare parts
46 SA-103-0109V1.3-HAO-GB © F. Stephan GmbH
11.8 Spindle
1
2
3
4
8
5
6
7
9
10

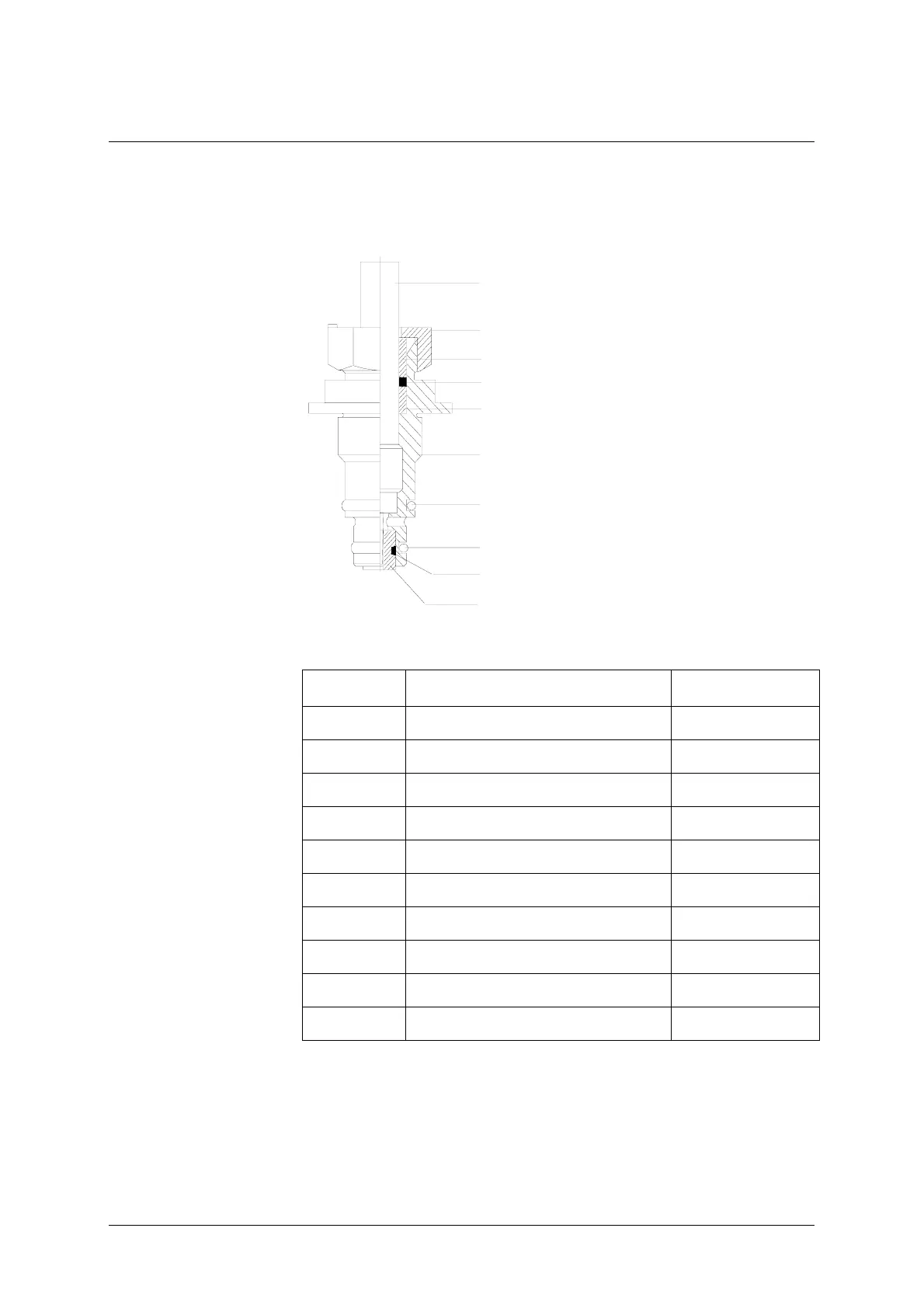

Fig. 21: spare parts spindle
Item Designation Article No.
1 Packing inset for spindle 1 150 40 014
2 O – ring 3 x 1 1 950 60 001
3 O – ring 6 x 1,8 1 950 60 027
4 O – ring 7,65 x 1,78 1 950 60 004
5 Spindle housing 1 150 32 016
6 Sliding bearing bushing 6 / 9 / 4 1 150 60 027
7 Sliding ring, spindle 1 150 40 010
8 Sliding bearing bushing 6 / 9 / 6 1 150 60 026
9 Nut M 12 x 1, spindle 1 150 42 015
10 Proportioning spindle 1 150 40 011
Tab. 14: spare parts spindle
