14
13406 SE 32nd St, BELLEVUE WA, 98005 WWW.CONSUMER.STEPPIR.COM TEL: (425)-453-1910
REVERSE DIRECTION
(180 deg)
FORWARD DIRECTION (Normal)

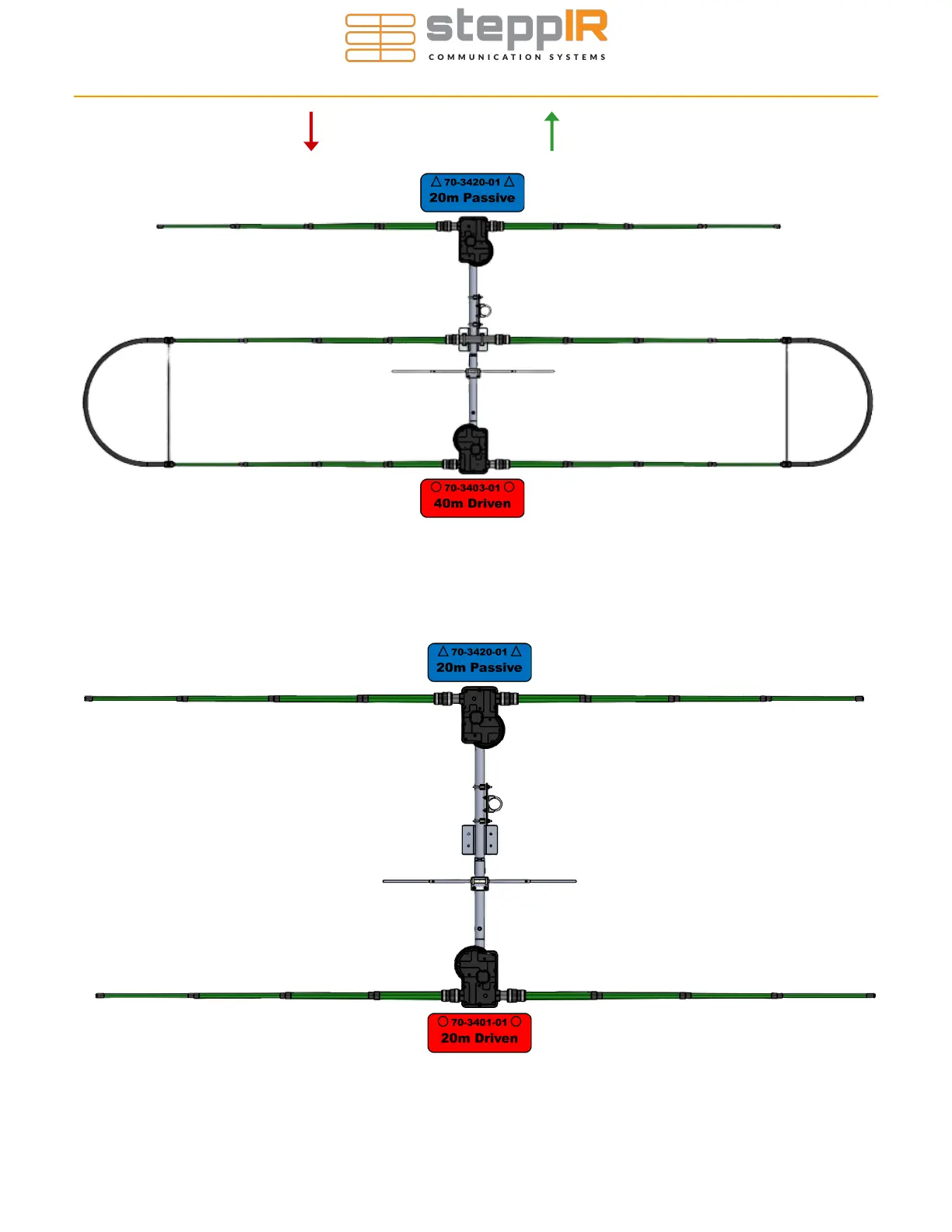

ANTENNA DIRECTION CONFIGURATION
20m-6m Reflector
20m-6m Director
20m-6m Driven
20m-6m Driven
6m Passive Element
Figure 1.02: 2 Element Yagi 20-6m
The driven element is a dipole when
on 40 and 30 meters
6m Passive Element
20m-6m Director
20m-6m Reflector
20m-6m Driven / 40m-30m Dipole 20m-6m Driven / 40m-30m Dipole
Figure 1.01: 2 Element Yagi with 40/30
